TRPPTRC1 and TRPPTRC2 provide the lockout/latching function, event generation
and the trip signal duration setting. One binary input through SELGAPC1 can be
connected to the RST_LKOUT input of Master Trip. If the lockout operation mode is
selected, it is used to enable the external reset.
GUID-04CDD1B0-F721-4CE4-A19D-B6BF96C0FB42 V2 EN

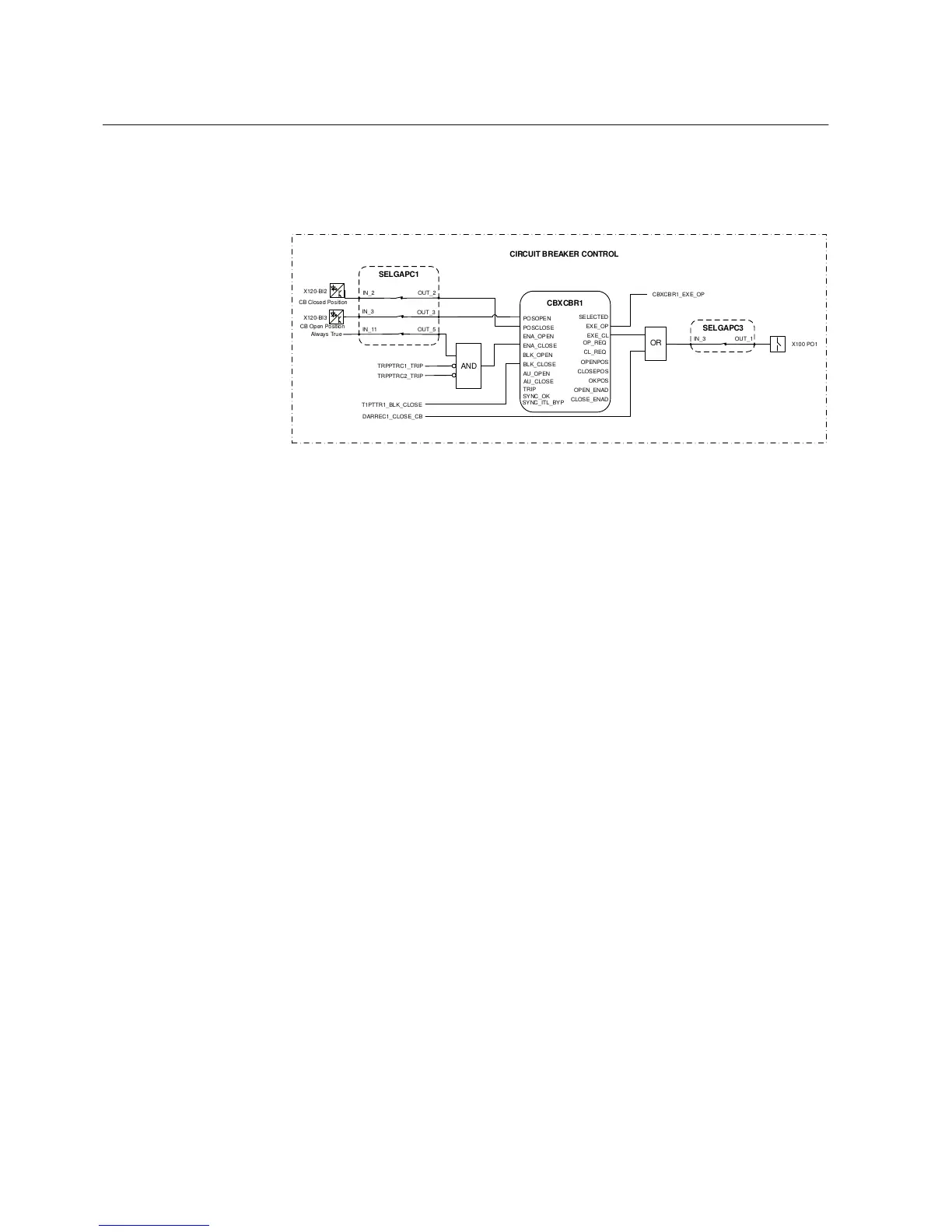

Figure 70: Circuit breaker control
The ENA_CLOSE input, which enables the closing of the circuit breaker, is
interlocked by two master trip signals. Any one trip will block the breaker from
closing. An always true signal is also connected to ENA_CLOSE via SELGAPC1 by
default. The open operation is always enabled.
