Setting example
REC
PTP
PTP
Station bus
GPS
SAM600-TS
SAM600-CT
SAM600-VT
PTP
PTP
9-2
PTP
REL
IEC17000069=1=en.vsdx
9-2
9-2
Process bus
IEC17000069 V1 EN-US

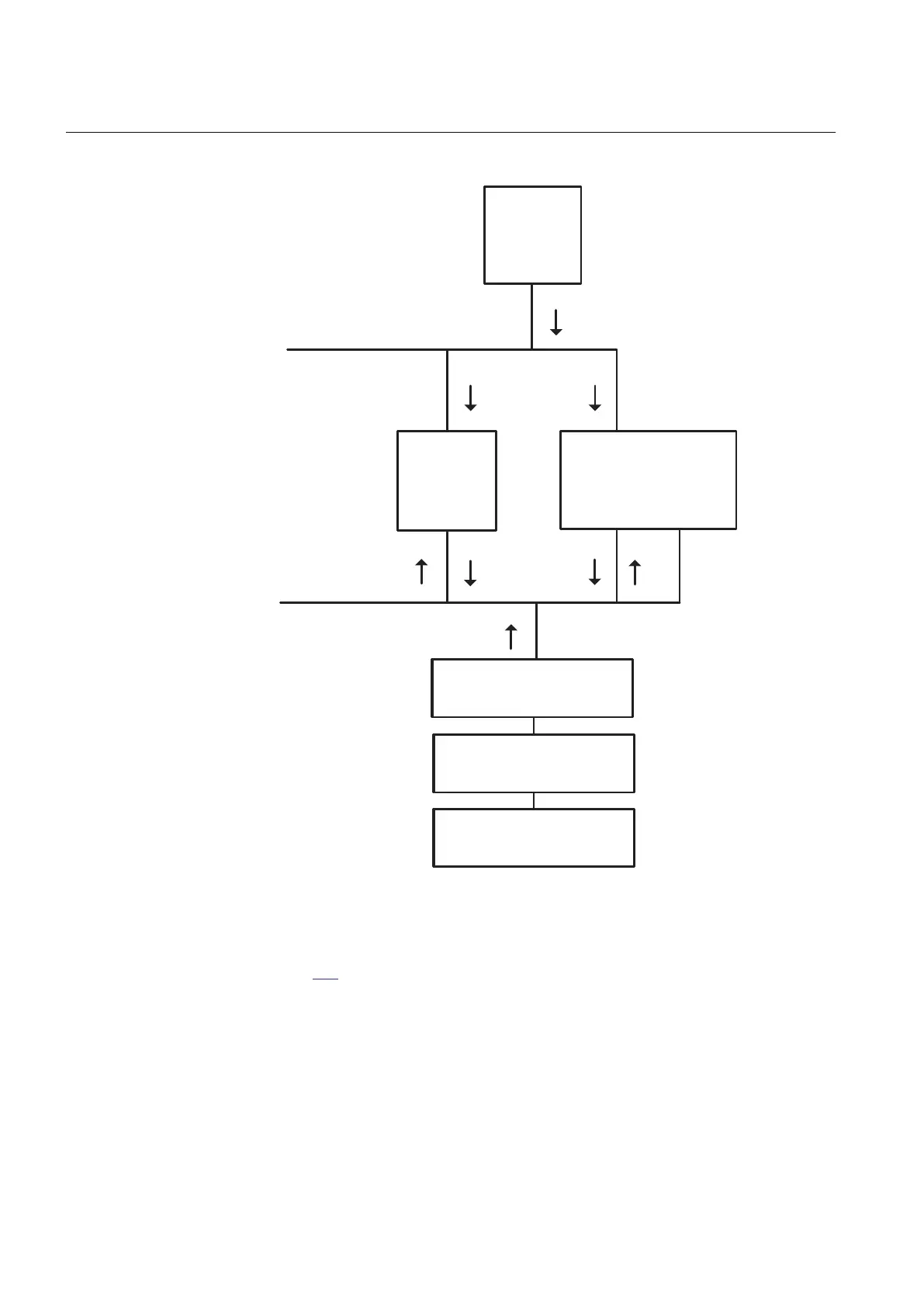

Figure 129: Example system
Figure 129 describes an example system. The REC and REL are both using the 9-2
stream from the SAM600, and gets its synch from the GPS. Moreover, the REL
and REC both acts as a boundary clock to provide synch to the SAM600.
On all access points, the PTP parameter is “ON”.
Section 18 1MRK 504 169-UEN A
Basic IED functions
358 Transformer protection RET650 2.2 IEC
Application manual
