GUID-C0081EAA-DD8B-4AC8-9F0D-EFAE0A29A12C V1 EN

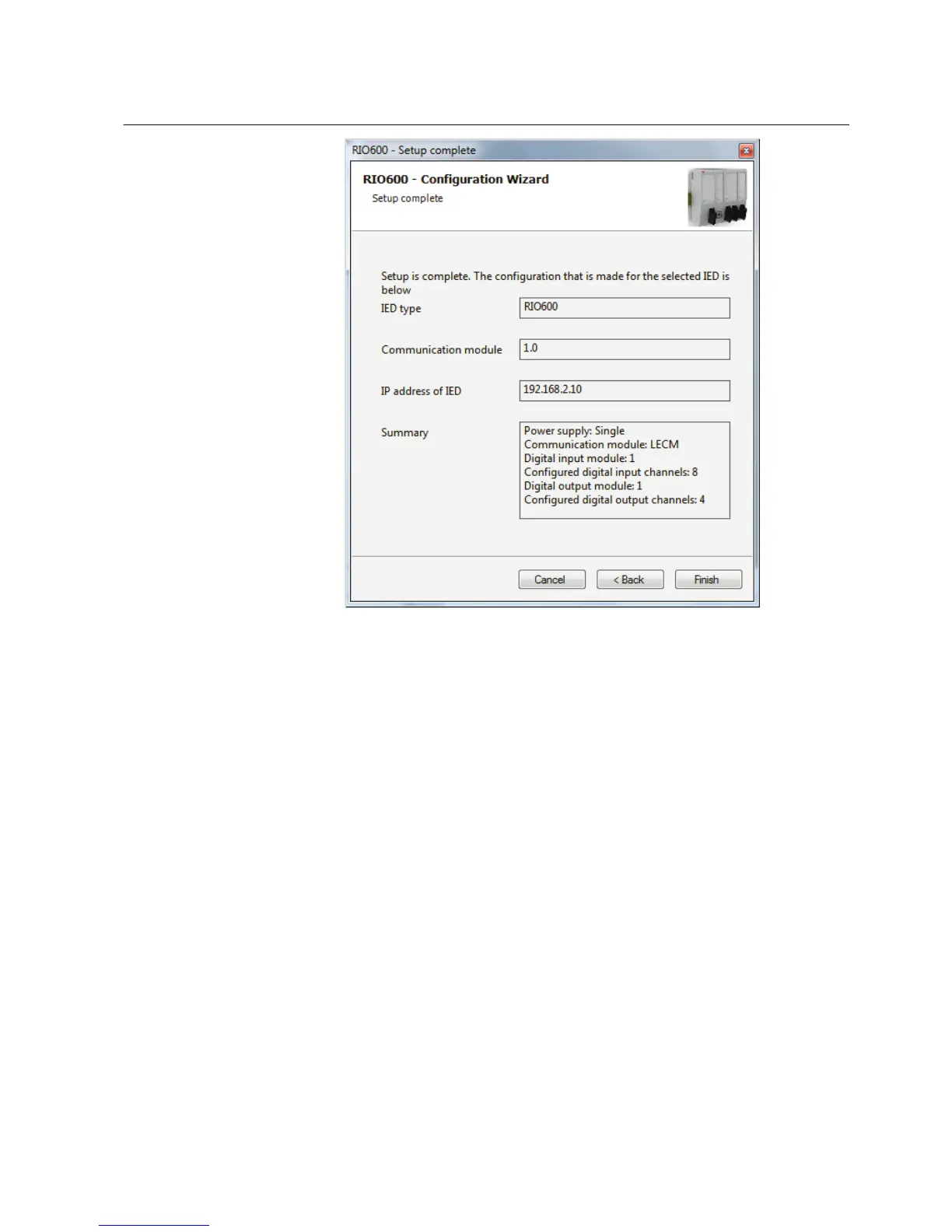

Figure 21: Viewing summary page in offline mode
10. In the Set technical key dialog box, click OK to close the configuration setup
wizard.
The plant structure is updated according to the hardware configuration. The
module types and the related positions are visible under the HW
Configuration. For example, DIM8GGIO1 represents Position 1 and module
type DIM8.
1MRS757489 A Section 3
Setting up a project
RIO600 23
Configuration Manual
