1.1 Type of connection cables

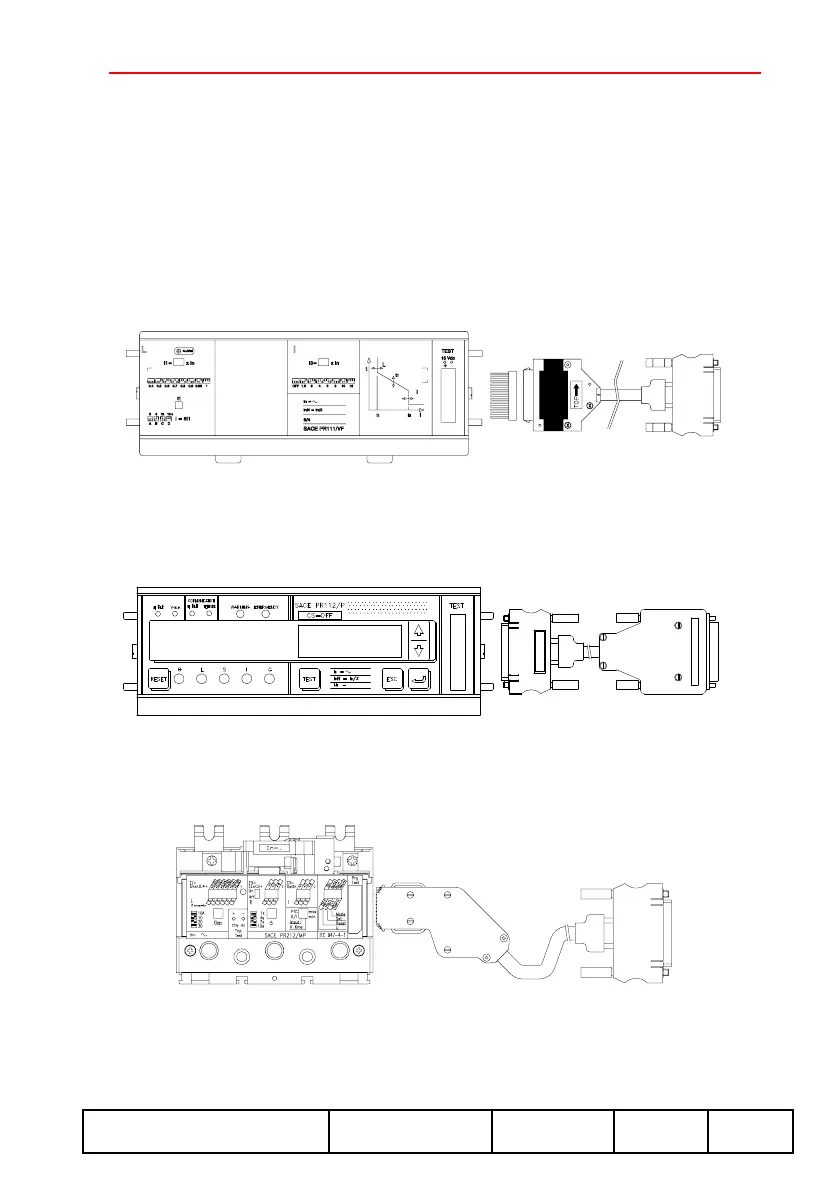

The diagrams below illustrate examples of the types of cables available for connecting the various
different relays to the PR010/T unit.
All cables are supplied as accessories of the PR010/T unit.
1.1.1 CABLE A
The diagram shows an example of connection to a PR111 relay with the aid of a mechanical
adapter. Cable to be used for the IEC version of the PR112 relay with key.
1.1.2 CABLE B
The diagram shows an example of connection to an IEC version of a PR112 relay without key.
Cable to be used for the IEC version of the PR112 relay without key and for the UL version of the
PR112 relay.
1.1.3 CABLE C
The diagram shows an example of connection to a PR212/MP relay (only for the version with
front connector).
