5.15. SACE PR021/K with SACE PR332/P unit
5.15.1. Dip-switch settings
To use the PR021/K unit with the PR332/P protection unit, the dip-switches must be set as follows:

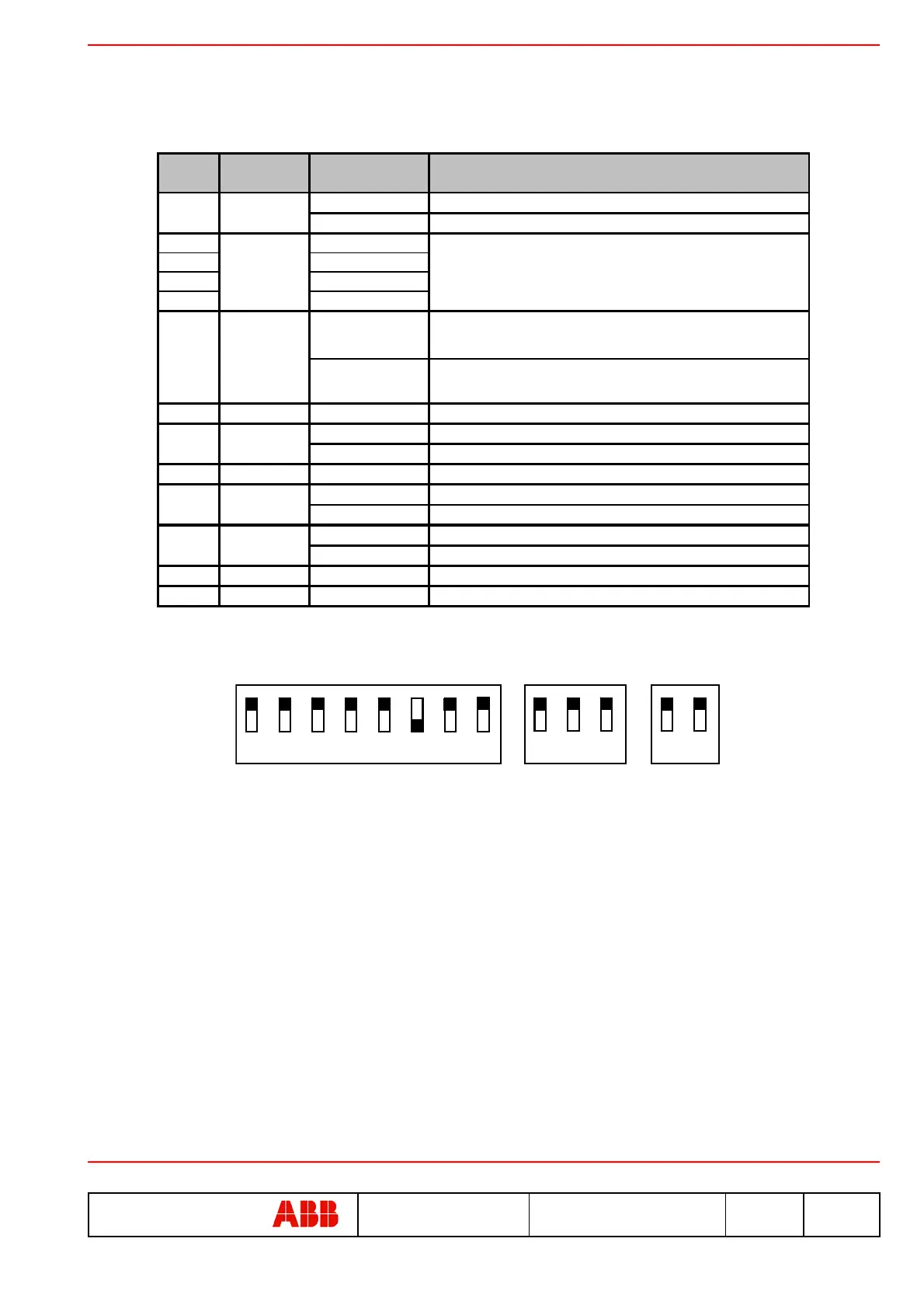

Example of dip-switch settings for the PR021/K unit to be connected to the SACE PR332/P release
In the example, the PR021/K has been set as follows:
• Self-test function disabled
• K51 configuration = A-A-A-A
• Master mode
• Baud rate = 19.2Kb/s
• Stand-by function not active
• Manual Reset mode
• Latch mode disabled
• Local bus not terminated
OFF
ON
12345678
91011
12 13
Dip-sw
no.
Dip-sw
name
Setting Notes
DIS. Self-test enabled
EN. Self-test disabled
2A/B
3A/B
4A/B
5
A/B
MASTER
• "Master" scenario
• Master unit in mixed "Master+Slave" scenario
7 BAUD 19.2kb/s
Set 19.2 kbit/s
EN.
Operating mode
DIS.
Stand-by mode enabled
9PROG.
OFF
Set this dip-switch to OFF
MAN
Manual Reset mode
AUT
Automatic Reset mode
OFF
Normal mode
ON
Latch mode
12 Term.
OFF
See par. 5.3
13 N.U.
OFF
Not used
SLAVE
Select A or B to choose the functions of the relays
(see par. 5.15.2)
• "Slave" scenario
• Slave unit in mixed "Master+Slave" scenario
1TEST
6MODE
K51
Configuration
11 LATCH
8K51/
10 RESET
