ABB SafePlus User Manual

11

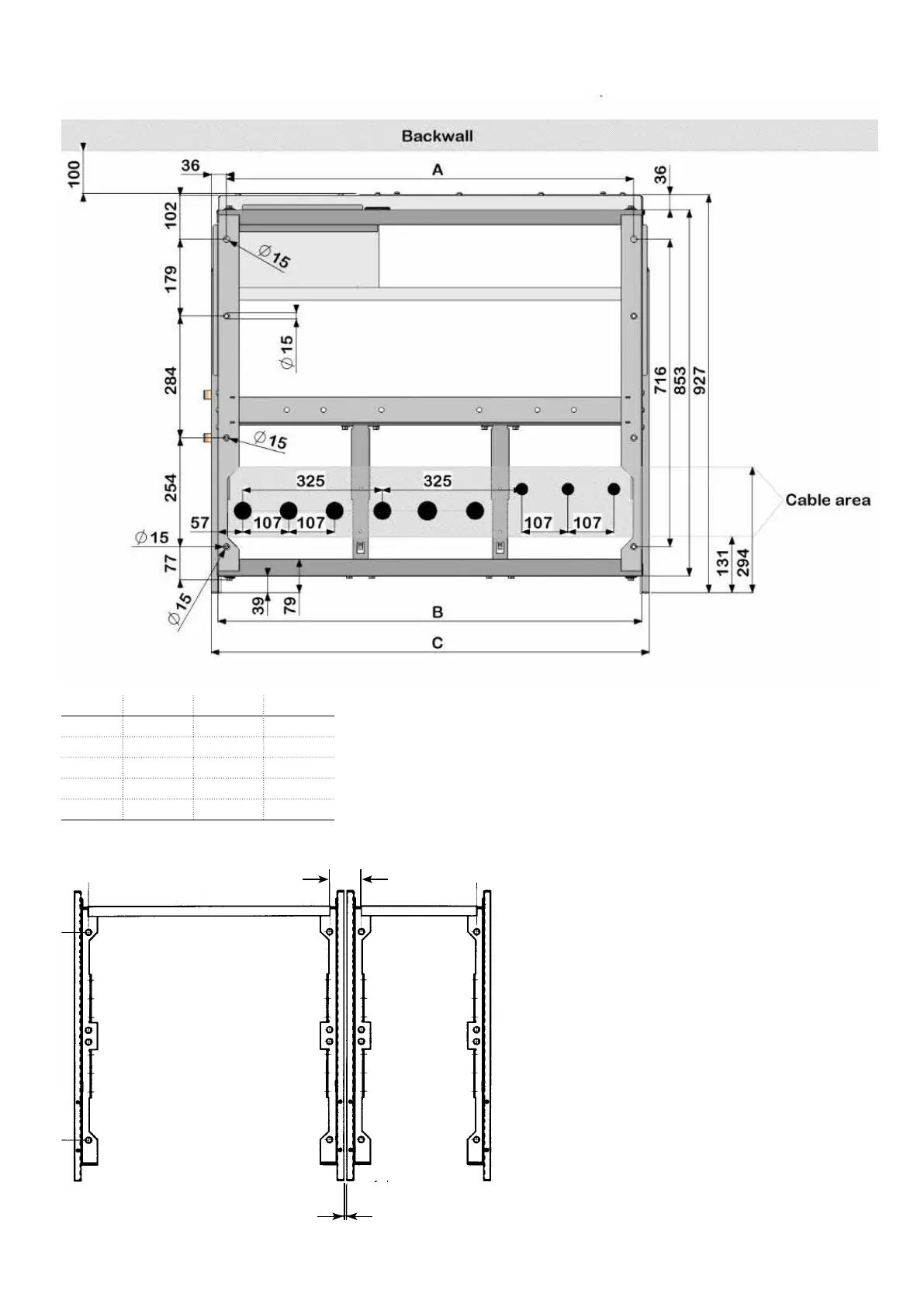

Unit A B C
1-way NA NA NA
2-way 623 662 696
3-way 948 987 1021
4-way 1273 1312 1346
5-way 1598 1637 1671
5.3 3-WAY SWITCHGEAR WITH BASE FRAME (AFLR)
Distance between two units which are connec-
ted to each other by means of external busbars
*) Top extension: 8 mm / 81 mm
Side extension: 14 mm / 87 mm
indicates cable entry
81/87*
8/14*

ABB SafePlus Specifications

General

Rated voltage	Up to 24 kV
Rated current	Up to 1250 A
Insulation medium	SF6 gas
Rated Lightning Impulse Withstand Voltage	125 kV
Standards	IEC 62271-200
Dimensions	Varies by configuration
Weight	Varies by configuration
Short-time withstand current	Up to 25 kA
