11. MOTOR OPERATION
Switches, vacuum circuit-breakers and earthing switches are
operated by mechanisms located behind the front panel. The
mechanisms for all the switches and breakers are operated
manually with the operating lever (standard), or are fitted with
motor operation (additional equipment).
The earthing switch and the disconnectors can only be ope-
rated manually. The earthing switches have mechanisms to
achieve fault making capabilities.

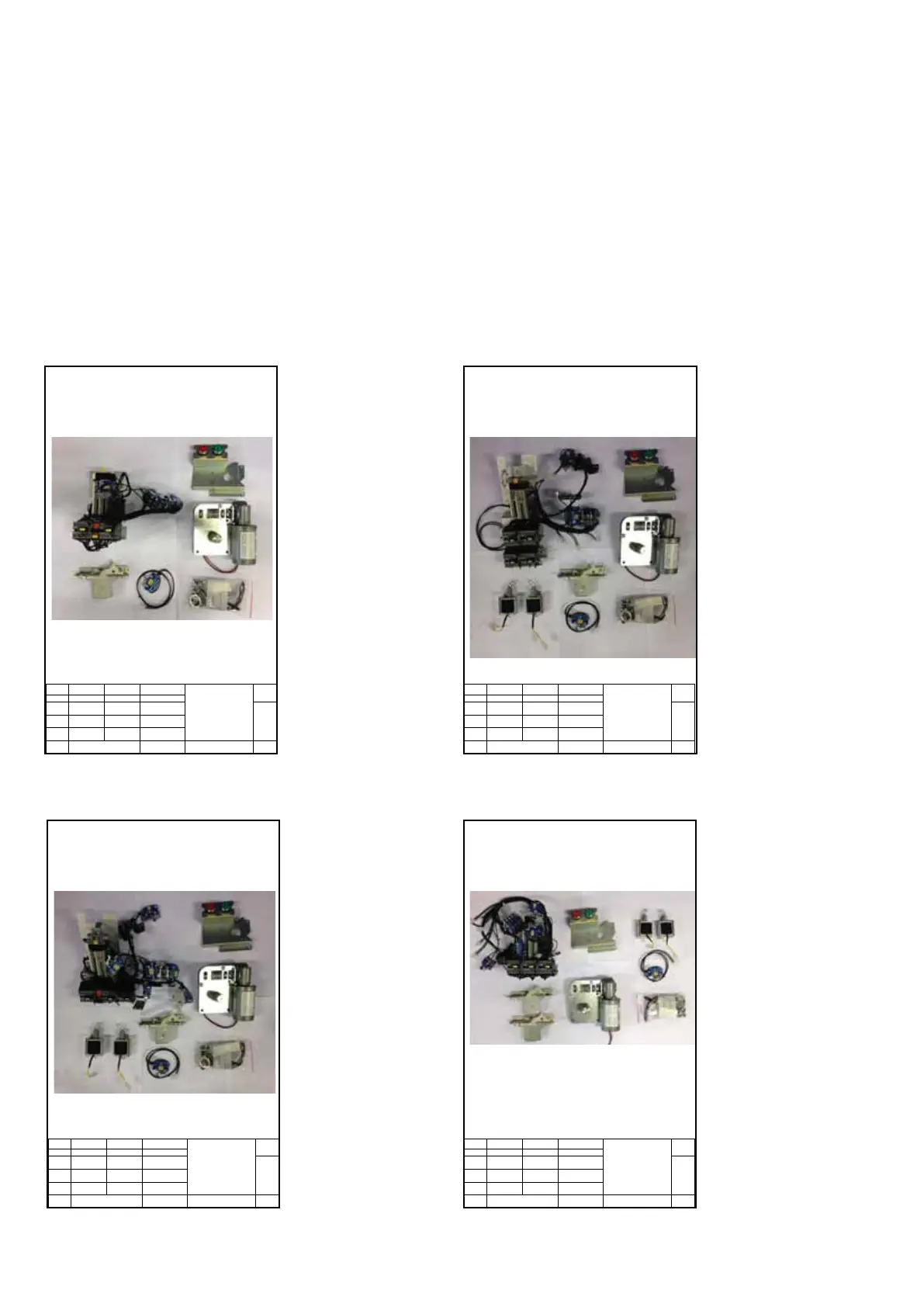

3PKE mechanism for load break switch (C-module)
1VDD200001
3PAE mechanism for fuse-switch (F-module) 1VDD200003 2PA mechanism for circuit-breaker (V-module) 1VDD200004
3PKSE mechanism for load break switch (C-module)
1VDD200002
Motor operation can be retrofitted. Use the manuals.
All units are delivered with drawings showing the electrical
circuits.
Installation instructions cover the following modules:
We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third parties
without express authority is strictly forbidden. © ABB Technology Ltd.
Edition
1.0
Document status
RELEASED
Responsible
NODIS
Title
SafeRing/SafePlus 12/24
Motor operation
complete on 3PKE
mechanism for C-, Sl- &
F6-modules
Language
EN/NO
Location
Date
Name
Prepared
PPMV
Skien
2015-06-23 Espen
Fossen
Checked
PPMV
Skien
2015-08-10 Asgeir
Elvestad
Approved
PPMV
Skien
2015-08-13
Magne
Reinholdt


ABB Technology Ltd.
Document No.
1VDD200001
Sheet No.
1/34
SafeRing / SafePlus 12 / 24
Motor operation complete on 3PKE mechanism for
C-, Sl- & F6-modules
Installation Instruction
www.abb.com
We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third parties
without express authority is strictly forbidden. © ABB Technology Ltd.
Edition
1.0
Document status
RELEASED
Responsible
NODIS
Title
SafeRing/SafePlus 12/24
Motor operation
complete on 3PKSE
mechanism for C- & Sl-
modules
Language
EN/NO
Location
Date
Name
Prepared
PPMV
Skien
2015-06-23 Espen
Fossen
Checked
PPMV
Skien
2015-08-10 Asgeir
Elvestad
Approved
PPMV
Skien
2015-08-13
Magne
Reinholdt


ABB Technology Ltd.
Document No.
1VDD200002
Sheet No.
1/41
SafeRing / SafePlus 12 / 24
Motor operation complete on 3PKSE mechanism
for C- & Sl-modules
Installation Instruction
www.abb.com
We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third parties
without express authority is strictly forbidden. © ABB Technology Ltd.
Edition
1.0
Document status
RELEASED
Responsible
NODIS
Title
SafeRing/SafePlus 12/24
Motor operation
complete on 3PAE
mechanism for F- &
SGT-modules
Language
EN/NO
Location Date Name
Prepared
PPMV
Skien
2015-06-23
Espen
Fossen
Checked
PPMV
Skien
2015-08-10 Asgeir
Elvestad
Approved
PPMV
Skien
2015-08-13 Magne
Reinholdt


ABB Technology Ltd.
Document No.
1VDD200003
Sheet No.
1/45
SafeRing / SafePlus 12 / 24
Motor operation complete on 3PAE mechanism for
F- & SGT-modules
Installation Instruction
www.abb.com
We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third parties
without express authority is strictly forbidden. © ABB Technology Ltd.
Edition
1.0
Document status
RELEASED
Responsible
NODIS
Title
SafeRing/SafePlus 12/24
Motor operation
complete on 2PA
mechanism for V- & Sv-
modules
Language
EN/NO
Location Date Name
Prepared
PPMV
Skien
2015-06-23
Espen
Fossen
Checked
PPMV
Skien
2015-08-10 Asgeir
Elvestad
Approved
PPMV
Skien
2015-08-13 Magne
Reinholdt


ABB Technology Ltd.
Document No.
1VDD200004
Sheet No.
1/45
SafeRing / SafePlus 12 / 24
Motor operation complete on 2PA mechanism for
V- & Sv-modules
Installation Instruction
www.abb.com

ABB SafePlus Specifications

General

Rated voltage	Up to 24 kV
Rated current	Up to 1250 A
Insulation medium	SF6 gas
Rated Lightning Impulse Withstand Voltage	125 kV
Standards	IEC 62271-200
Dimensions	Varies by configuration
Weight	Varies by configuration
Short-time withstand current	Up to 25 kA
