16
*) 290 mm base frame is available as
option

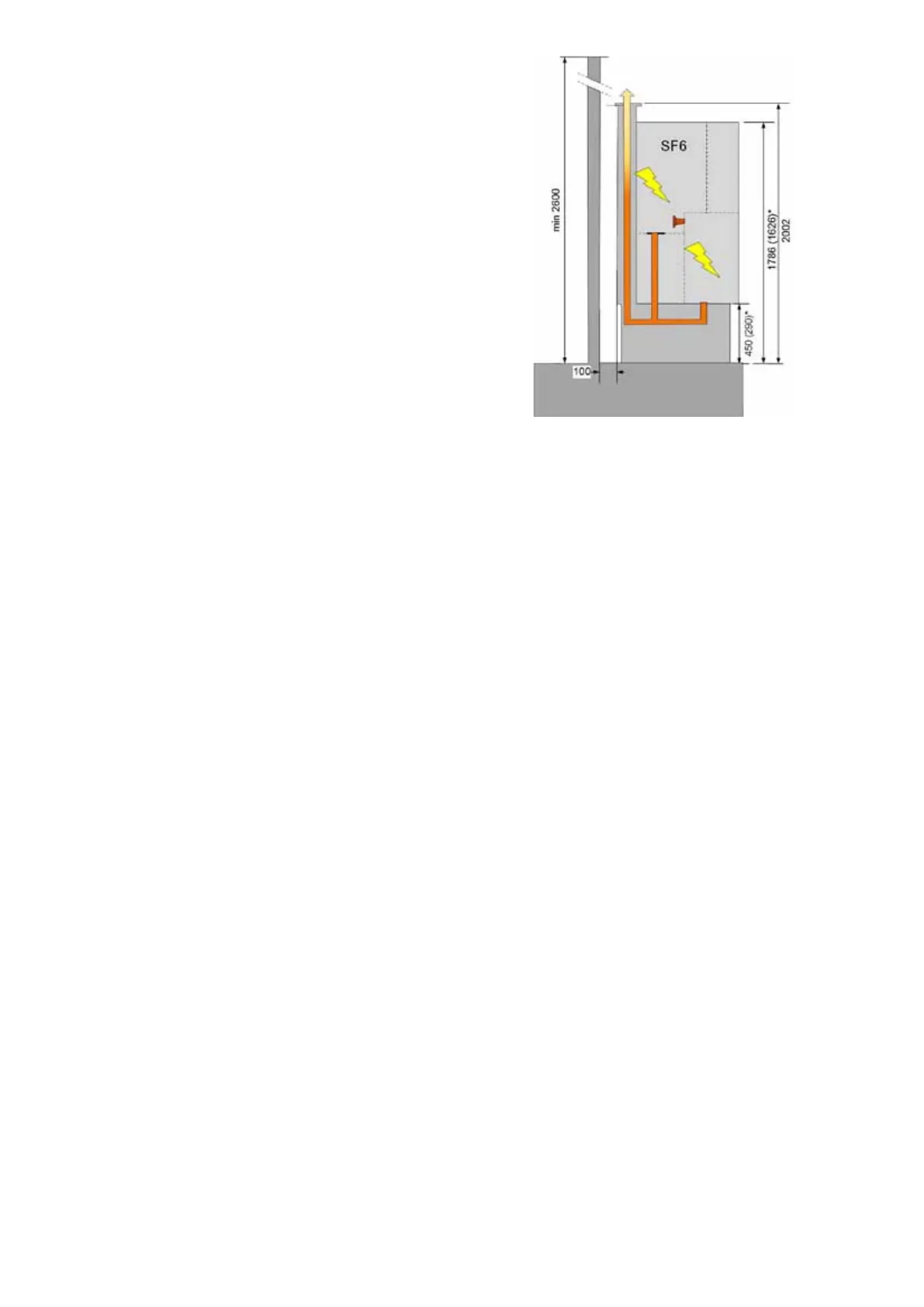

For installation of switchgear with Internal Arc Classifi-
cation AFLR with ventilation upwards through exhaust
channel, the following must be considered:
− Unit must be equipped with arc proof cable covers
− Unit can be installed as free standing
− Minimum height of ceiling: 2600 mm
− Recommended distance from back wall is 100 mm

ABB SafePlus Specifications

General

Rated voltage	Up to 24 kV
Rated current	Up to 1250 A
Insulation medium	SF6 gas
Rated Lightning Impulse Withstand Voltage	125 kV
Standards	IEC 62271-200
Dimensions	Varies by configuration
Weight	Varies by configuration
Short-time withstand current	Up to 25 kA
