ABB SAM600 Series - Functional Description; Distributed Analog Sampling

Grandmaster
Clock
IED Ctrl
IED Prot
IED
Busbar
SAM600
VT
SAM600
CT
9-2LE
9-2LE
9-2LE
1PPS
IEEE 1588
(a)
Grandmaster
Clock
IED Ctrl
IED Prot
IED
Busbar
SAM600
VT
SAM600
CT
9-2LE (HSR)
9-2LE
IEEE 1588
(b)
SAM600
TS
1PPS
IED Ctrl
IED Prot
IED
Busbar
SAM600
VT
SAM600
CT
9-2LE (HSR)
9-2LE
(c)
SAM600
TS
1PPS
SAM600
TS
IEEE 1588
9-2LE (PRP)
IEC18000517 V2 EN-US

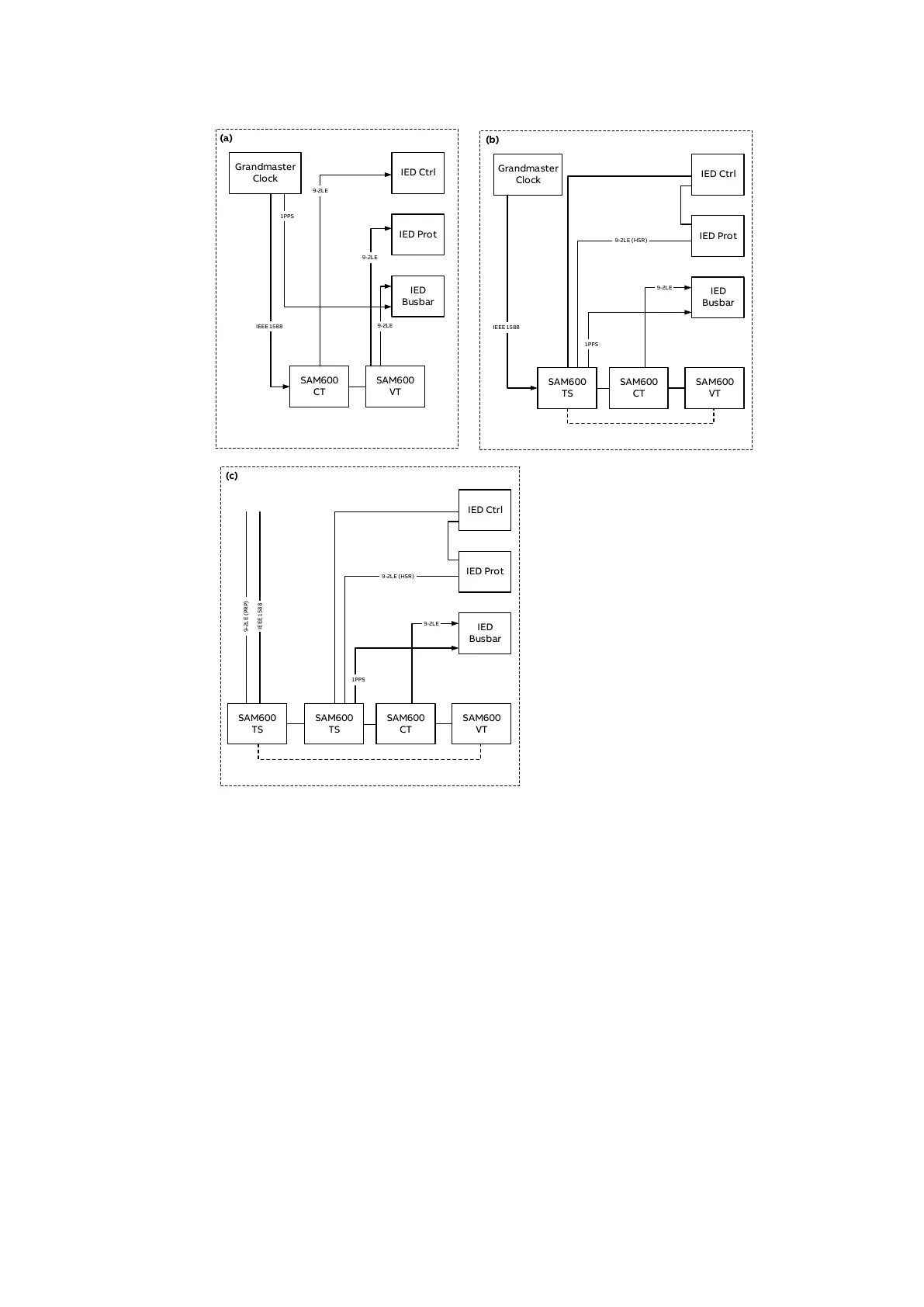

Figure 6: Communication architectures for SAM600 process bus I/O system
2.3 Functional description
2.3.1 Distributed analog sampling
GUID-483BD0F3-9125-4A66-B64A-94EF58482A8E v1
SAM600-CT and SAM600-VT modules convert analog input values from secondary protection
or measurement cores (1A/5A – order variant, or 100V-125V AC, settable, respectively) to a
digital format transmitted over Ethernet according to IEC 61850-9-2, following the UCA
implementation guideline 2004. Inputs are converted following the IEC 61869-9 standard for
protection and operational metering applications. The amplitude accuracy and phase
displacements for the analog input channels for both SAM600-CT and SAM600-VT are
specified in the SAM600 product guide (1MRK 511 437-BEN).
1MRK 511 434-UEN B Section 2
SAM600 Process Bus I/O System
SAM600 Process Bus I/O System 13
Operation Manual
© Copyright 2017 ABB. All rights reserved
