ABB SAM600 Series - Technical Data; Module Dimensions and Mounting Distances

Section 7 Technical Data
7.1 Module dimensions and mounting distances
GUID-EDC3245A-CD46-48B6-8F42-FC270DA4177C v1
SAM600 modules come with a compact form factor and are mounted on standard DIN-rails
(see Figure 14). SAM600 modules can be mounted both in horizontal or vertical orientation. All
SAM600 modules are equipped with a marked safety GND connection point on the left side of
the module.
IEC18000514 V1 EN-US

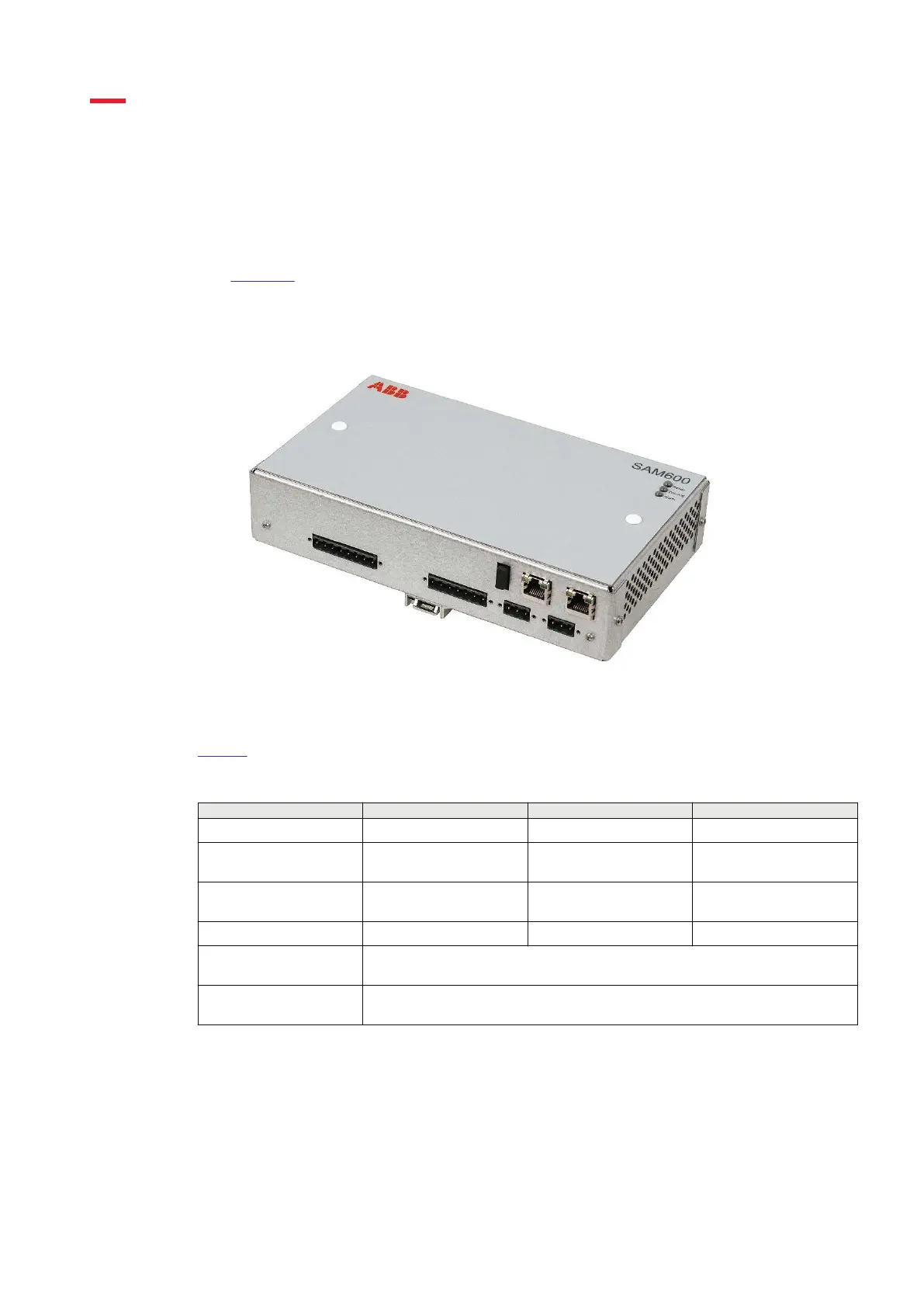

Figure 14: SAM600 module (SAM600-VT)
Table 7 provides an overview of the dimensions and weights of the SAM600 modules.
Table 7: Dimensions and weights of SAM600 modules
Dimensions and weights SAM600-CT SAM600-VT SAM600-TS
Length (mm) 233 233 233
Width (mm) (with/
without connectors)
157/132 144/132 157/132
Height (mm) (with DIN-
rail clamp)
60 60 60
Weight (kg) < 1.30 < 1.00 < 1.30
Minimum horizontal
space (mm)
20 (between modules or cable duct)
Minimum vertical space
(mm)
50 (between modules or cable duct)
