Zenith ZTGSE/ZTSSE 30-2500A ATS, USER MANUAL
BILL OF MATERIAL
ITEM NO PART NO DESCRIPTION QTY
1 HMH-541 3/8-16 GRADE 8 HEX NUT 5
2 S-1688 200-400A BONDING ADAPTER ASSY 1
3 HMH-89 3/8 X .812 PLAIN WASHER 7
4 HMH-87 3/8 HELICAL SPRING LOCK WASHER 3
5 V-2508 LABEL-SERVICE DISCONNECT 1

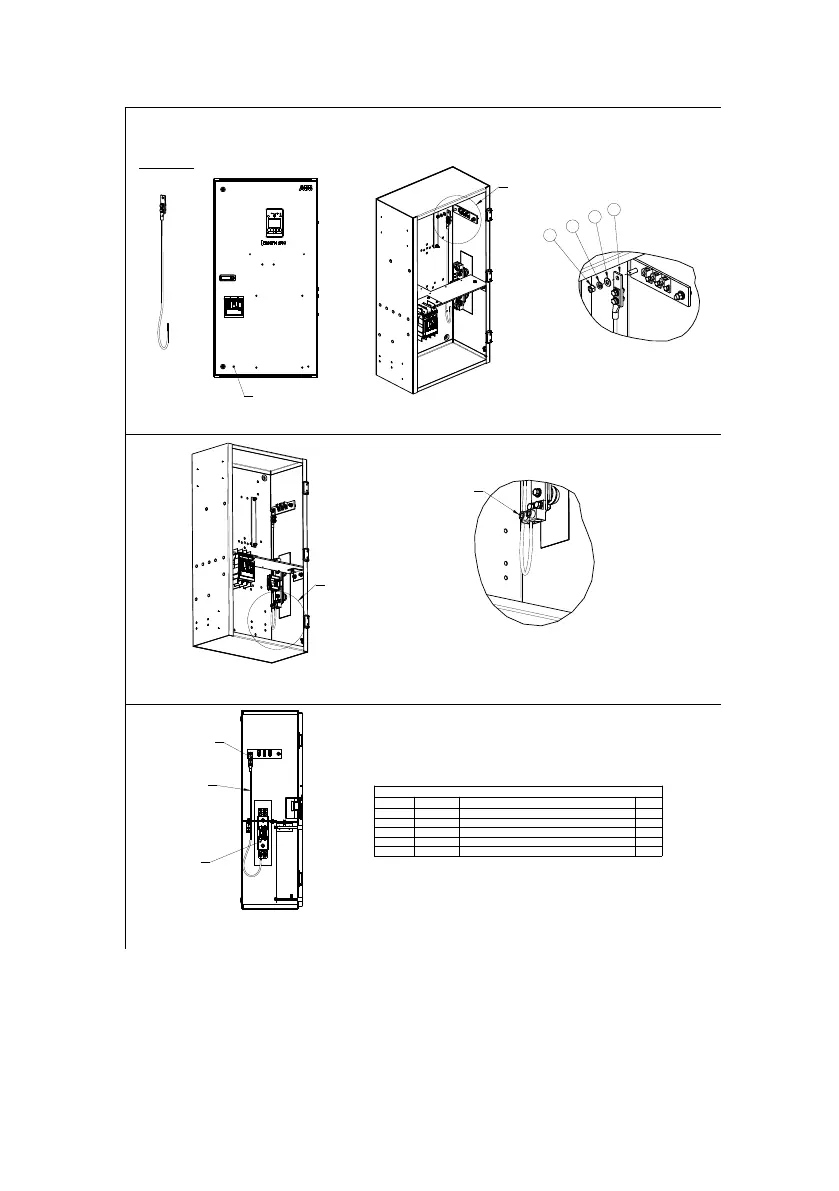

30-400A
STEP-1:
ASSEMBLE BONDING ADAPTER ASSEMBLY TO THE GROUND BAR.
VIEW SHOWING BONDING CABLE
CONNECTION
STEP-2:
ASSEMBLE BONDING CABLE TO NEUTRAL ASSEMBLY LUG.
USE BONDING CABLE
SUPPLIED WITH THE
EQUIPMENT.
BONDING CABLE/BAR IS SUPPLIED LOOSE ALONG WITH THE UNIT. IF THE UNIT IS USED AS SERVICE EQUIPMENT,
INSTALL THE BONDING BAR AS PER THE BELOW INSTRUCTION. APPLY THE "SERVICE DISCONNECT" LABEL NEAR
THE CIRCUIT BREAKER DISCONNECT HANDLE.
SEE DETAIL A
1
4
3
2
TORQUE
228 in-lbs
DETAIL A
BONDING ASSEMBLY
NEUTRAL BAR
ASSEMBLY
BONDING CABLE
Type: THHN/THWN-2
Size: 1/0
SEE DETAIL B
TORQUE
375 in-lbs
DETAIL B
OPEN ENCLOSURE DOOR TO ACCESS
GROUND BAR AND NEUTRAL BAR
R
