BILL OF MATERIAL
ITEM NO PART NO DESCRIPTION QTY
1 HMH-541 3/8-16 GRADE 8 HEX NUT 5
2 S-1755 600A BONDING ADAPTER ASSY 1
3 HMH-89 3/8 X .812 PLAIN WASHER 7
4 HMH-87 3/8 HELICAL SPRING LOCK WASHER 3
5 V-2508 LABEL-SERVICE DISCONNECT 1
600A

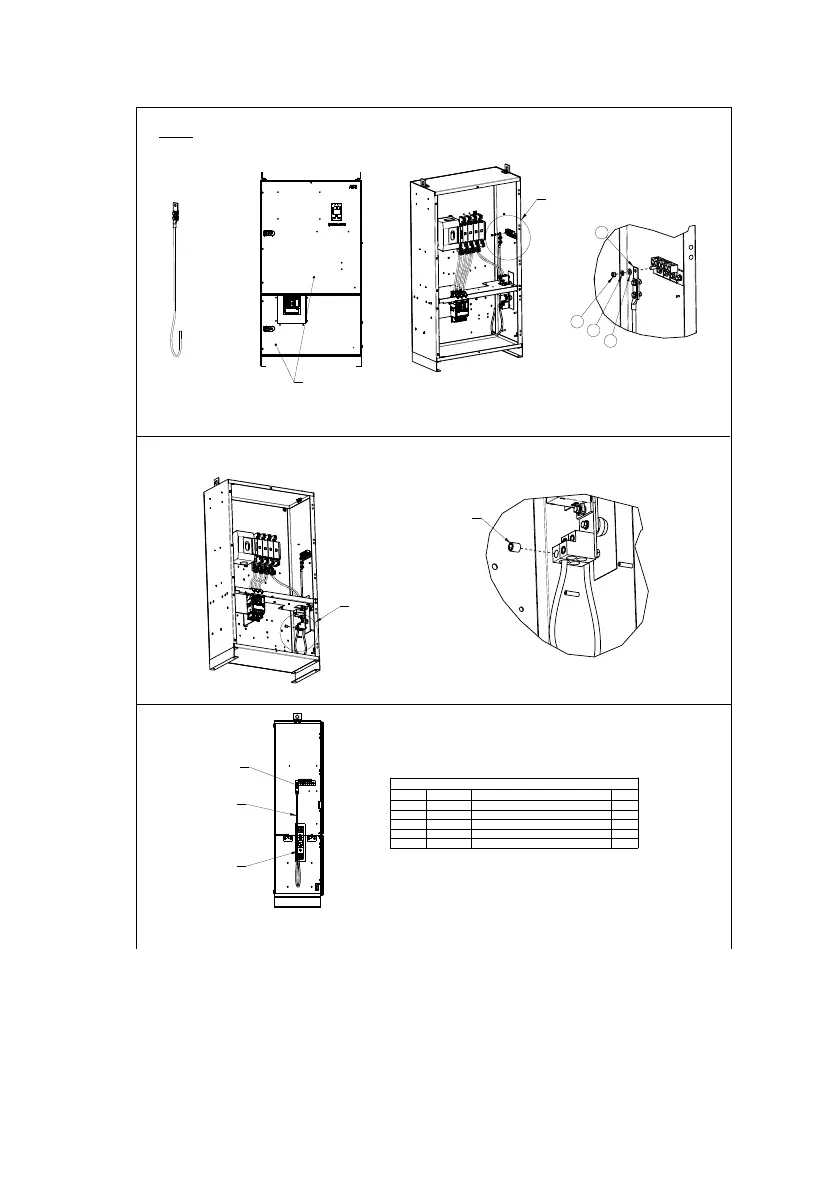

VIEW SHOWING BONDING CABLE
CONNECTION
STEP-1:
ASSEMBLE BONDING ADAPTER ASSEMBLY TO THE GROUND BAR.
STEP-2:
ASSEMBLE BONDING CABLE TO NEUTRAL ASSEMBLY LUG
USE BONDING CABLE
SUPPLIED WITH THE
EQUIPMENT
DETAIL C
DETAIL D
SEE DETAIL C
1
4
3
2
TORQUE
228 in-lbs
BONDING ADAPTER
NEUTRAL BAR
ASSEMBLY
BONDING CABLE
Type: THHN/THWN-2
Size: 3/0
SEE DETAIL D
TORQUE
500 in-lbs
OPEN ENCLOSURE TOP AND BOTTOM DOOR
TO ACCESS GROUND BAR AND NEUTRAL BAR
