9.2 Fit cover plate
NOTICE
The cover plate (material: General structural steel, in accordance with
DIN EN 10025-2) must be manufactured in-house according to the
drawing.

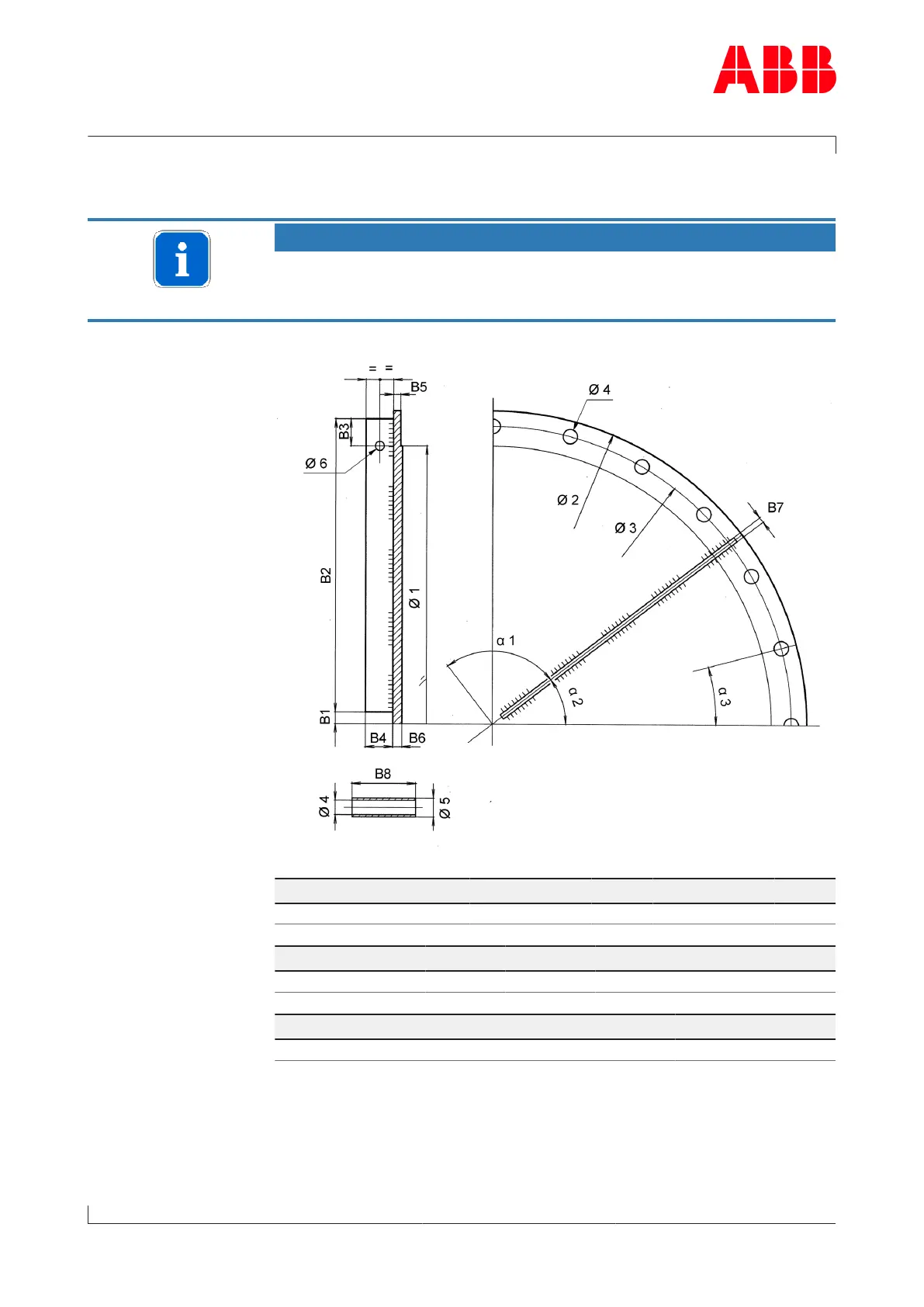

Cover plate dimensions
[mm]
Product B1 B2 B3 B4 B5 B6 B7 B8
TPL65 13 325 30 30 8 10 6 70
Product Ø 1 Ø 2 Ø 3 Ø 4 Ø 5 Ø 6
TPL65 616 694 660 16 22 15
Product
α
1
α
2
α
3
TPL65 4 x 90° 37.5° 24 x 15°
