Operation Manual / TPL65-A10 / -A30
8 Disassembly and assembly / 8.2 Module weights
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020
8.2 Module weights
The specified weights of individual parts or assemblies are guides roun-
ded off to the next highest value.
Assemblies
Weights [kg]
Description TPL65

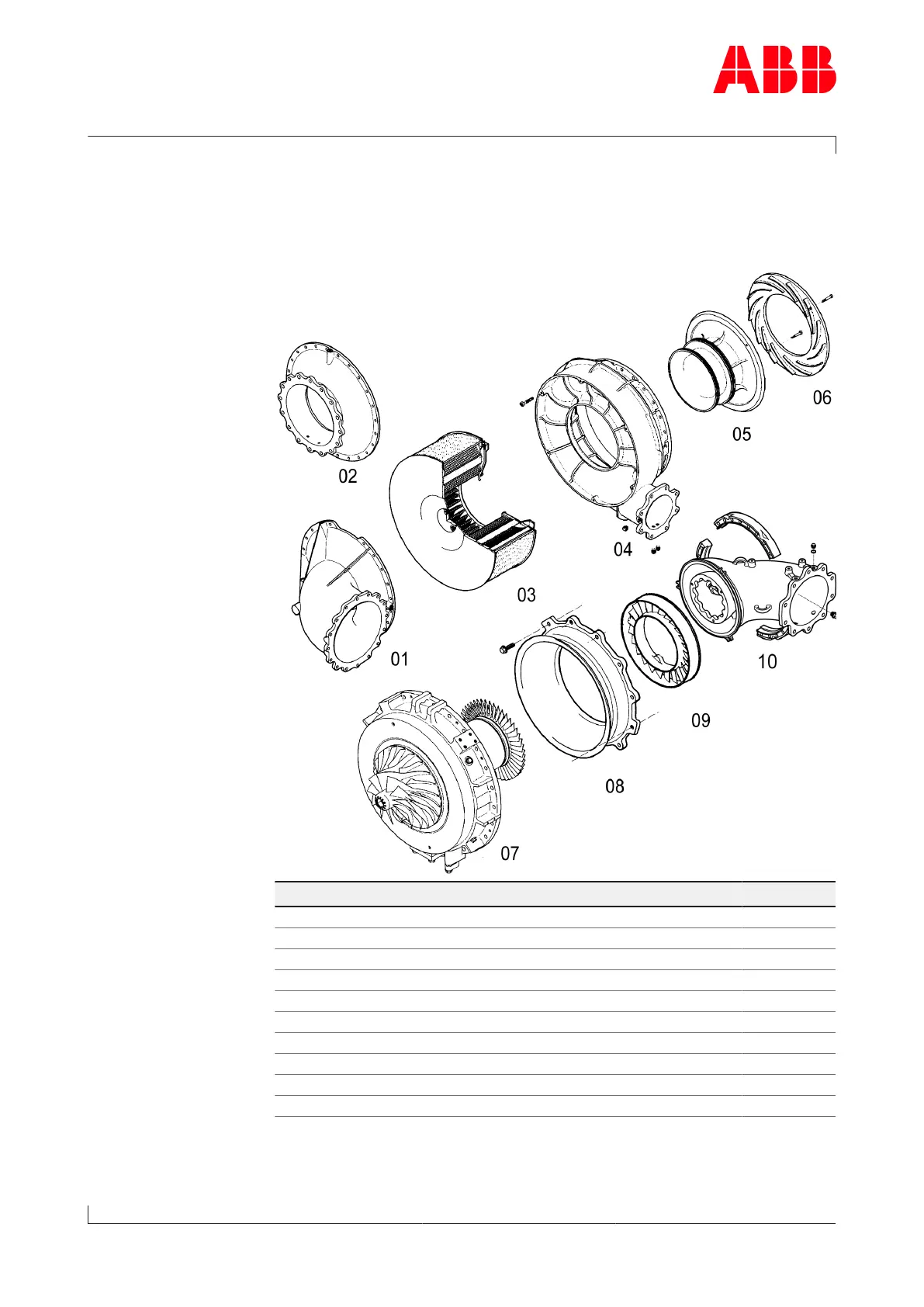

01 Radial air suction branch 35
02 Axial air suction branch 25
03 Silencer 85
04 Compressor casing 150
05 Wall insert 50
06 Diffuser 22
07 Cartridge group 220
08 Turbine diffuser 30
09 Nozzle ring 10
10 Gas inlet casing, radial 50
Page 83 / 117
