7.2 Removing the turbocharger
u Disconnect all gas, air and oil lines in accordance with the engineb-
uilder’s instructions.
CAUTION
Oil orifices
There is an orifice for adjusting the oil pressure in each of the two oil
supply pipes of the bearing casing. When the cartridge group, the bear-
ing casing or the turbocharger-is being fitted to the engine, it must be
ensured that the orifices specified for the turbocharger are installed in
both oil supply pipes.
u Check that the oil orifices have been correctly installed.
u Unplug the cable connector on the speed sensor.
u Remove the insulation at the suspension ribs.
u Inspect the lifting gear.

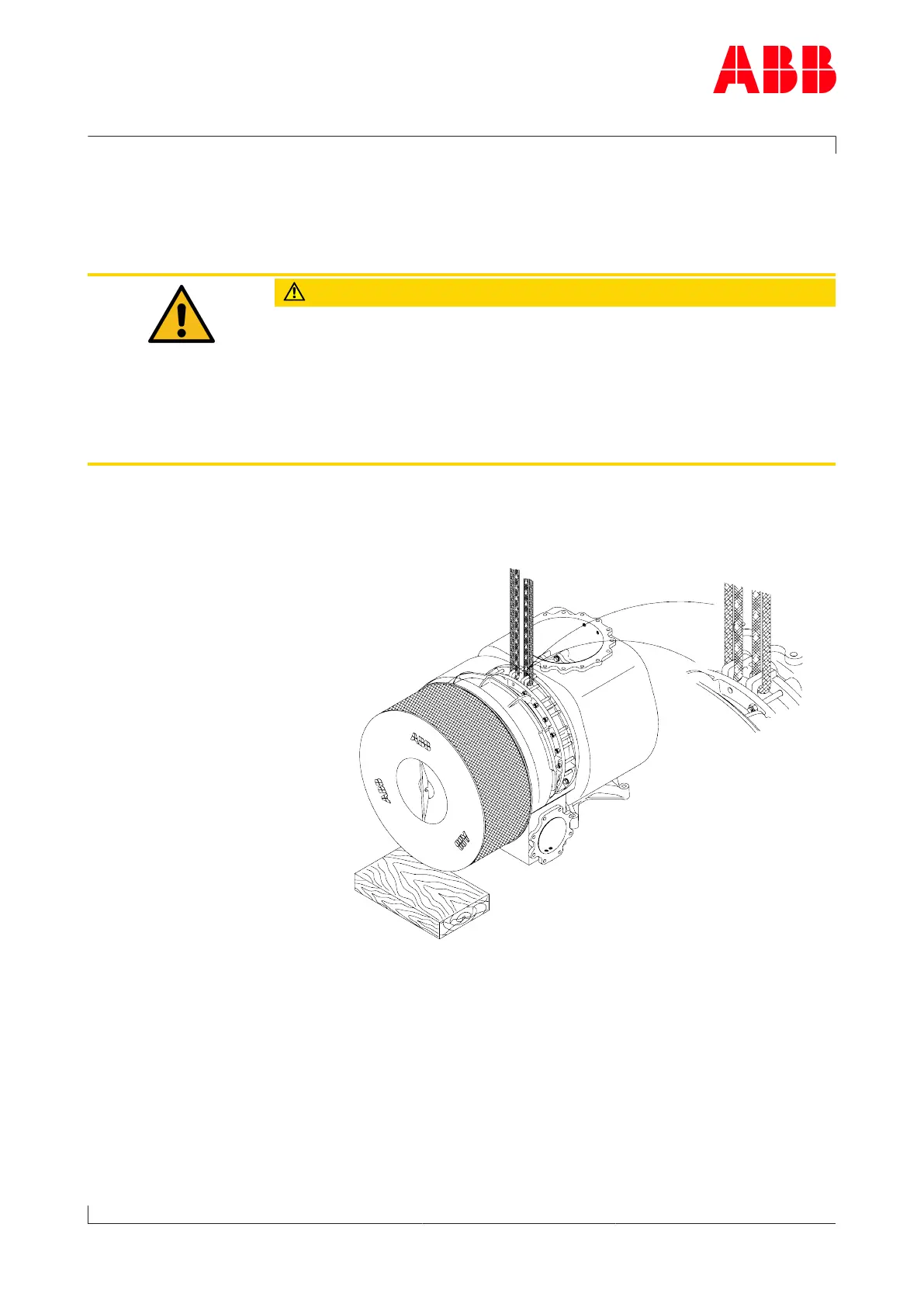

u Fasten separate lifting gear to each of the two ribs on the bearing
casing provided for this purpose.
