Operation Manual / TPL65-A10 / -A30
7 Removal and installation / 7.2 Removing the turbocharger
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020

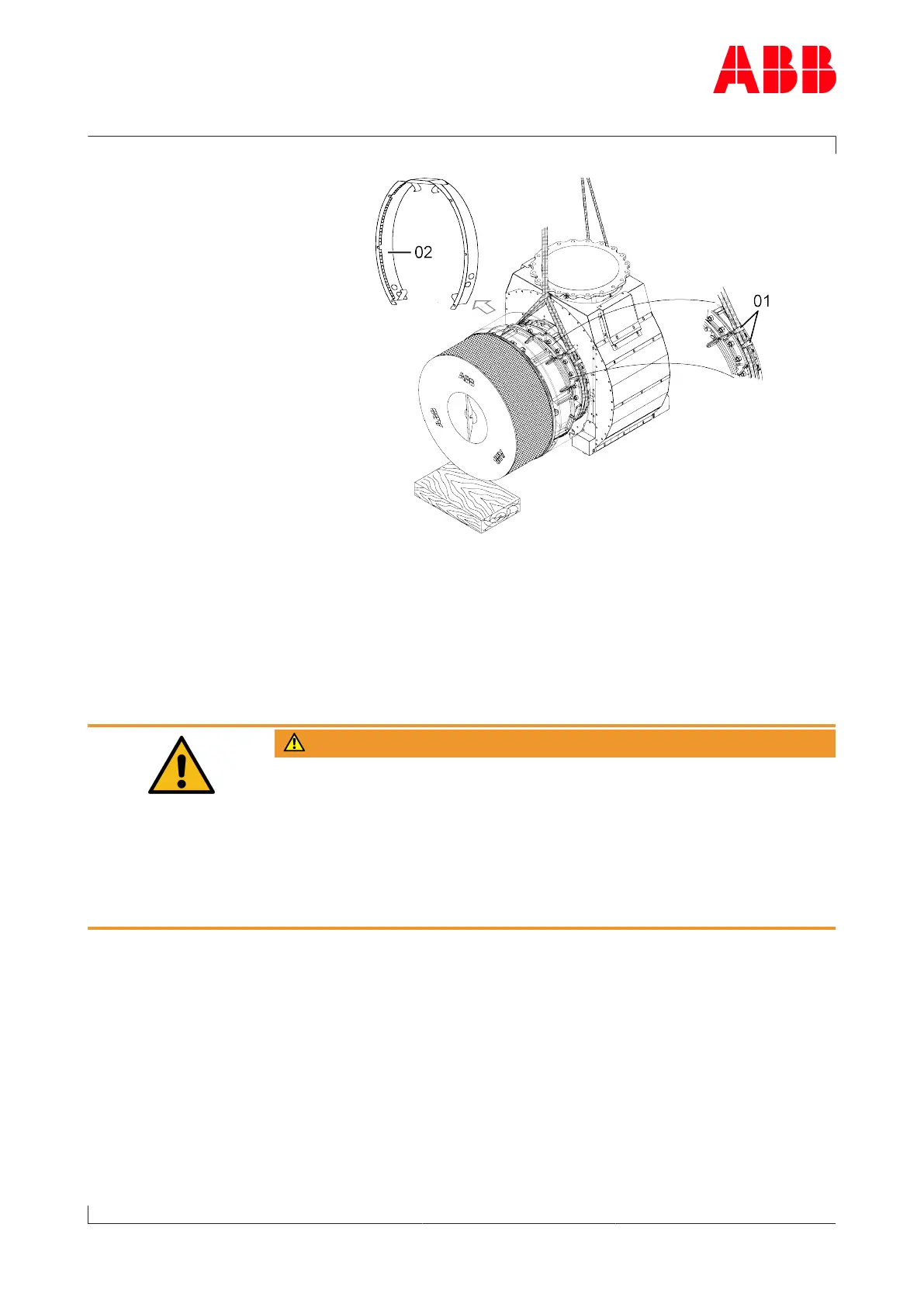

w Ribs(01) not in the middle at the top:
u Completely remove the bearing casing insulation(02) and place a
sling around the bearing casing.
u Loosen the fixing screws at the foot.
u Lift the turbocharger off the engine and set it down to one side.
WARNING
Beware of tilting
If support for the turbocharger is not provided or is inadequate, the
turbocharger could tip over during installation or removal and cause a
serious or even fatal injury.
u Wear personal protective equipment (PPE).
u Support the turbocharger at a suitable point.
u Secure with lifting gear wherever possible.
u Cover the oil connection.
