8.3 Removing and fitting filter silencer or air
suction branch

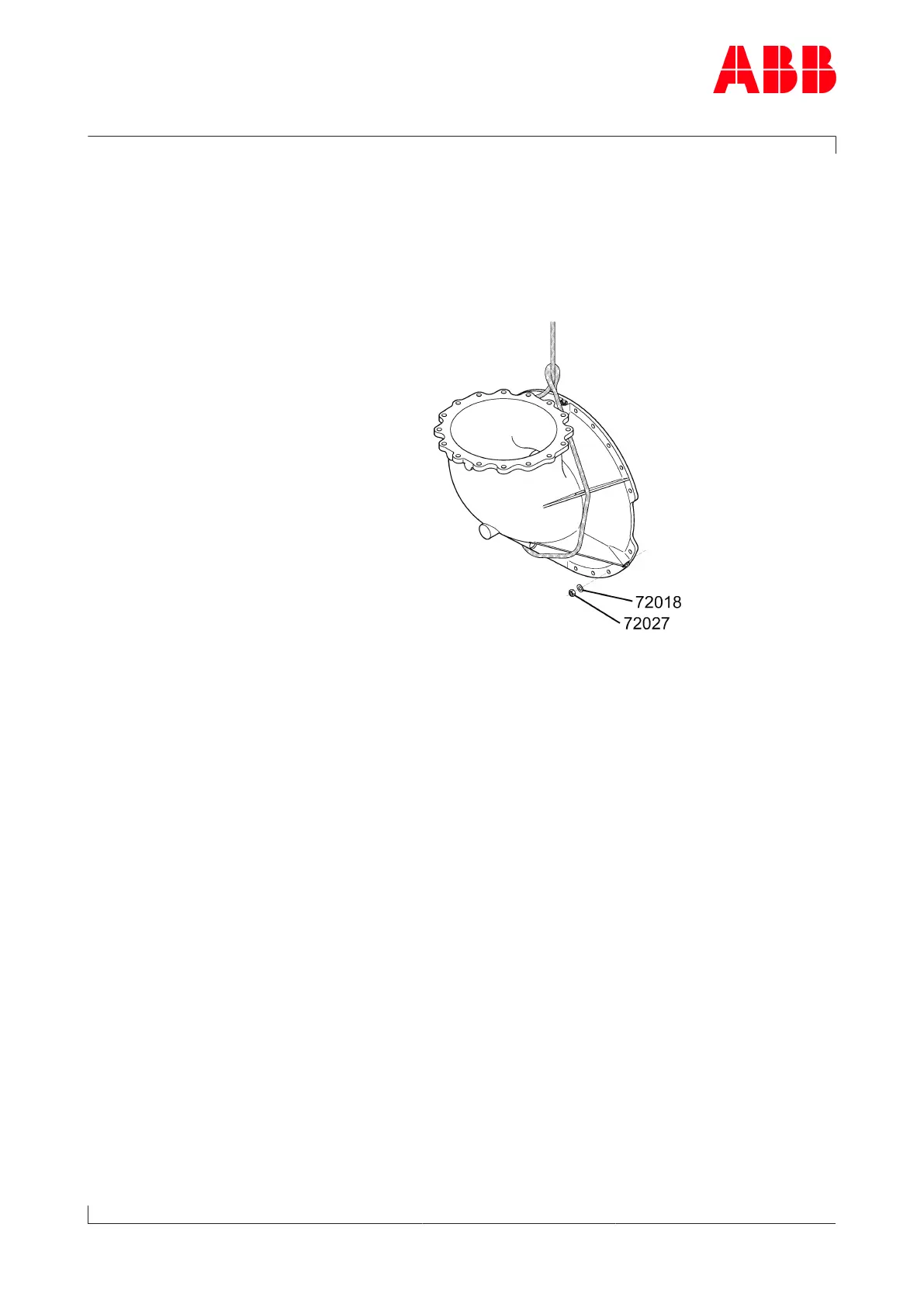

Removing the air suction
branch
u Disconnect all air lines in accordance with the engine builder’s instruc-
tions.
u Dismantle the insulation where necessary.
u Pass a lifting gear around the air suction branch. It is permissible to
pass the lifting gear through holes possibly provided in the ribs to im-
prove stability.
u Unscrew the nuts (72027) and remove them together with the wash-
ers (72018).
u Remove the air suction branch and set it down to one side.
Installing the air suction
branch
u Fit the air suction branch in reverse order.
