Operation Manual / TPL65-A10 / -A30
8 Disassembly and assembly / 8.3 Removing and fitting filter silencer
or air suction branch
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020

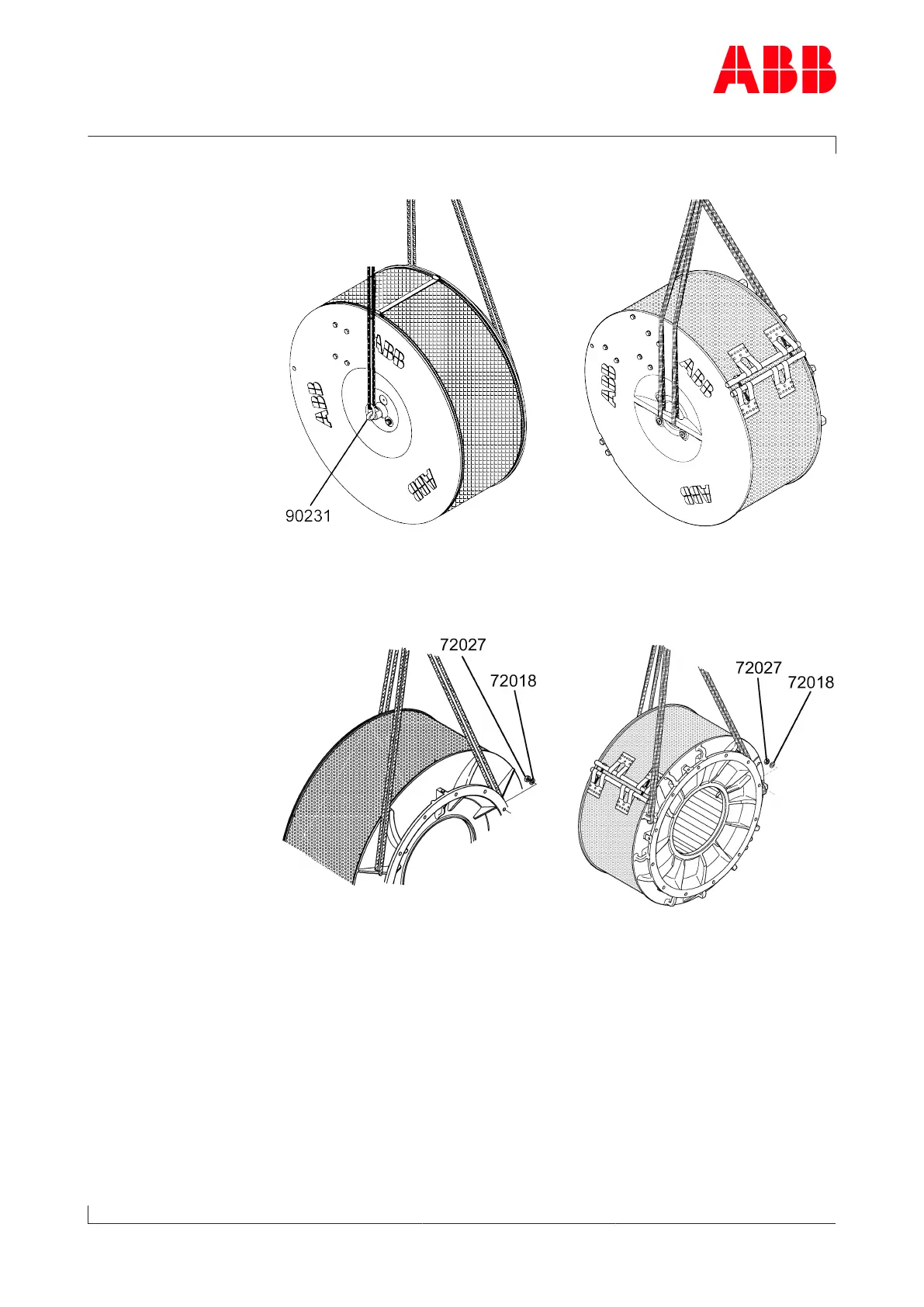

Remove filter silencer.
u Remove insulation where necessary.
u Fit swivel lifting eye (90231) to filter silencer.
Or
u Pass lifting gear through rib on filter silencer.
u Pass lifting gear through lugs at back.
u Unscrew nuts (72027) and remove them together with washers
(72018).
u Remove filter silencer and set down to one side.
Installing the filter silen-
cer
u Install filter silencer in reverse order.
Page 86 / 117
