5.2 Cleaning the filter silencer
5.2.1 Filter silencer with tension band

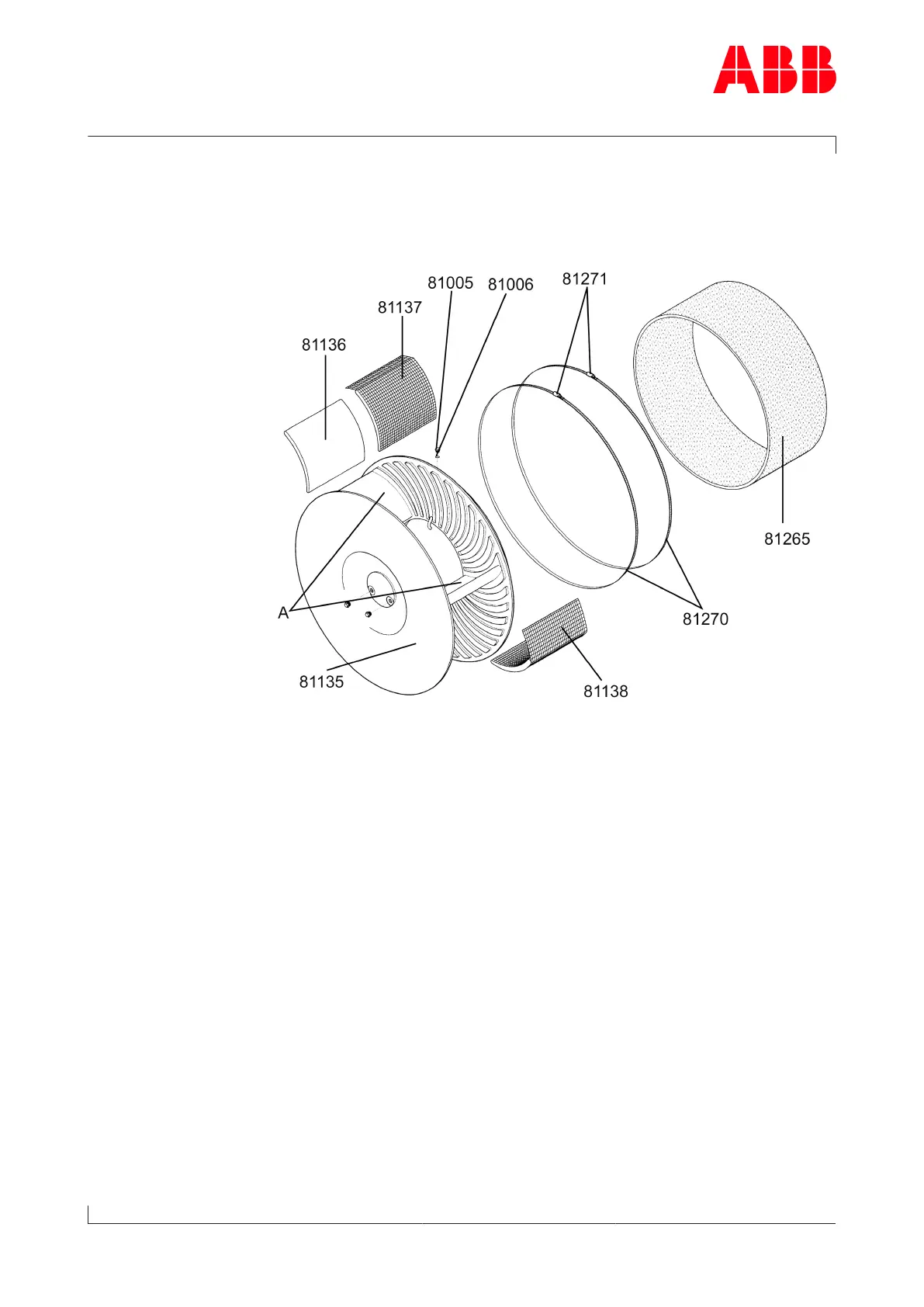

81265 Filter ring (if provided) 81138 Sheet-metal covering
81270 Tension band 81005 Screw plug
81271 Lock 81006 Gasket
81136 Absorption segment 81135 Filter silencer body
81137 Sheet-metal covering A Ribs
E Insert unit = absorption segment + sheet-metal covering fitted
Removing and cleaning the filter silencer
If provided
u Remove filter ring(81265).
u Rinse the filter ring(81265) using water with detergent additive or, if
it is heavily contaminated, soak it and carefully squeeze it out. Rinse
in cold water. Avoid high mechanical stress (do not use a water jet).
