Operation Manual / TPL65-A10 / -A30
8 Disassembly and assembly / 8.4 Axial clearance
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020
8.4 Axial clearance
WARNING
Physical hazards due to sharp edges on compressor wheel
The compressor wheel has sharp edges which can result in injury.
u Wear safety gloves.
Wear safety gloves to protect against mechanical hazards.

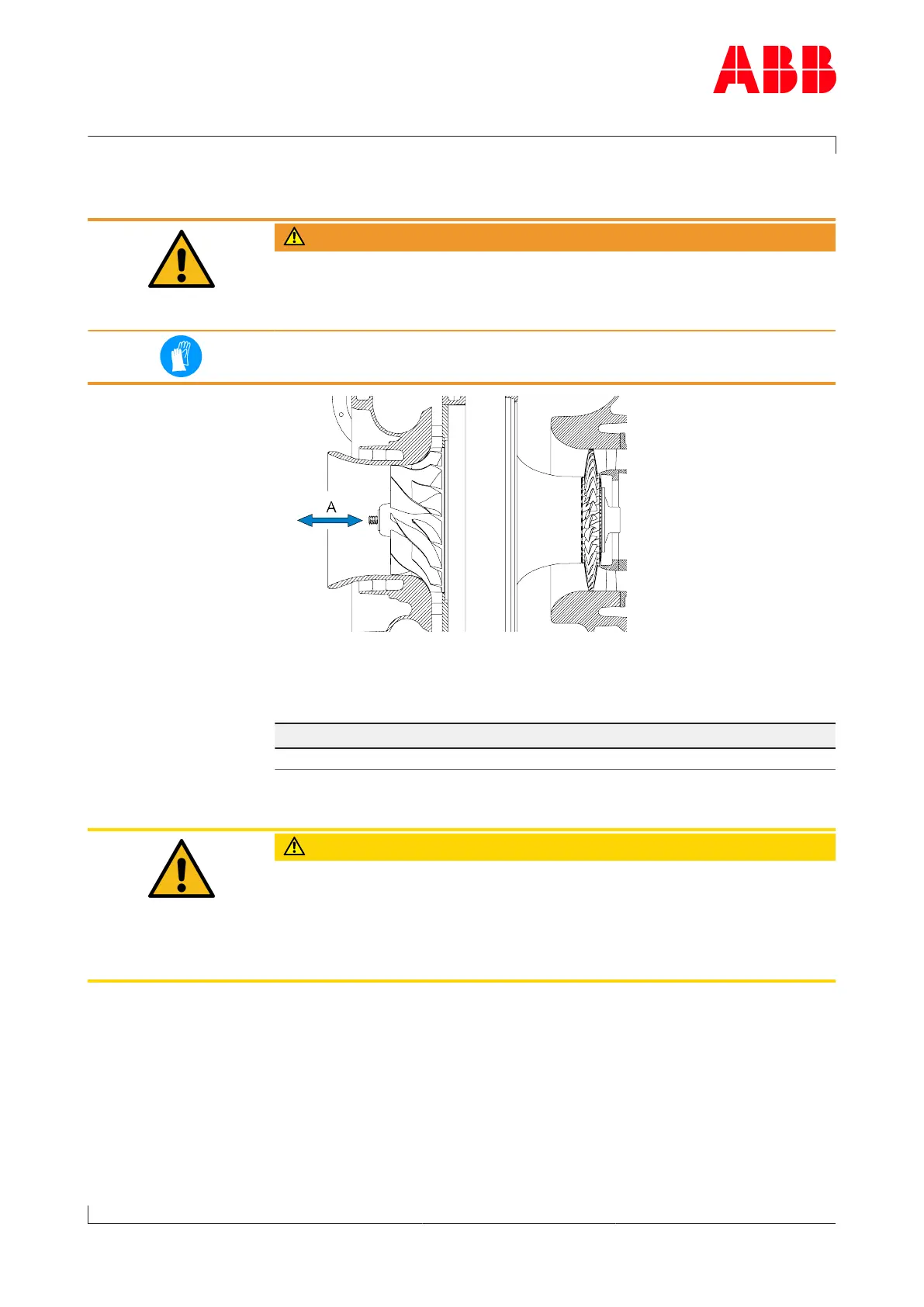

The axial clearance(A) must be measured before removing and after fit-
ting the cartridge group.
u Measure and note the axial clearance (A).
Axial clearance TPL65
Clearance A [mm] 0.39…0.56
CAUTION
Clearances out of tolerance
Clearances out of tolerance and excessively worn components can be
the cause of serious damage to machinery and property.
u Have components assessed and, if necessary, replaced by an ABB
Turbocharging Service Station.
Page 87 / 117
