Operation Manual / TPL65-A10 / -A30
5 Maintenance / 5.5 Cleaning components mechanically
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020

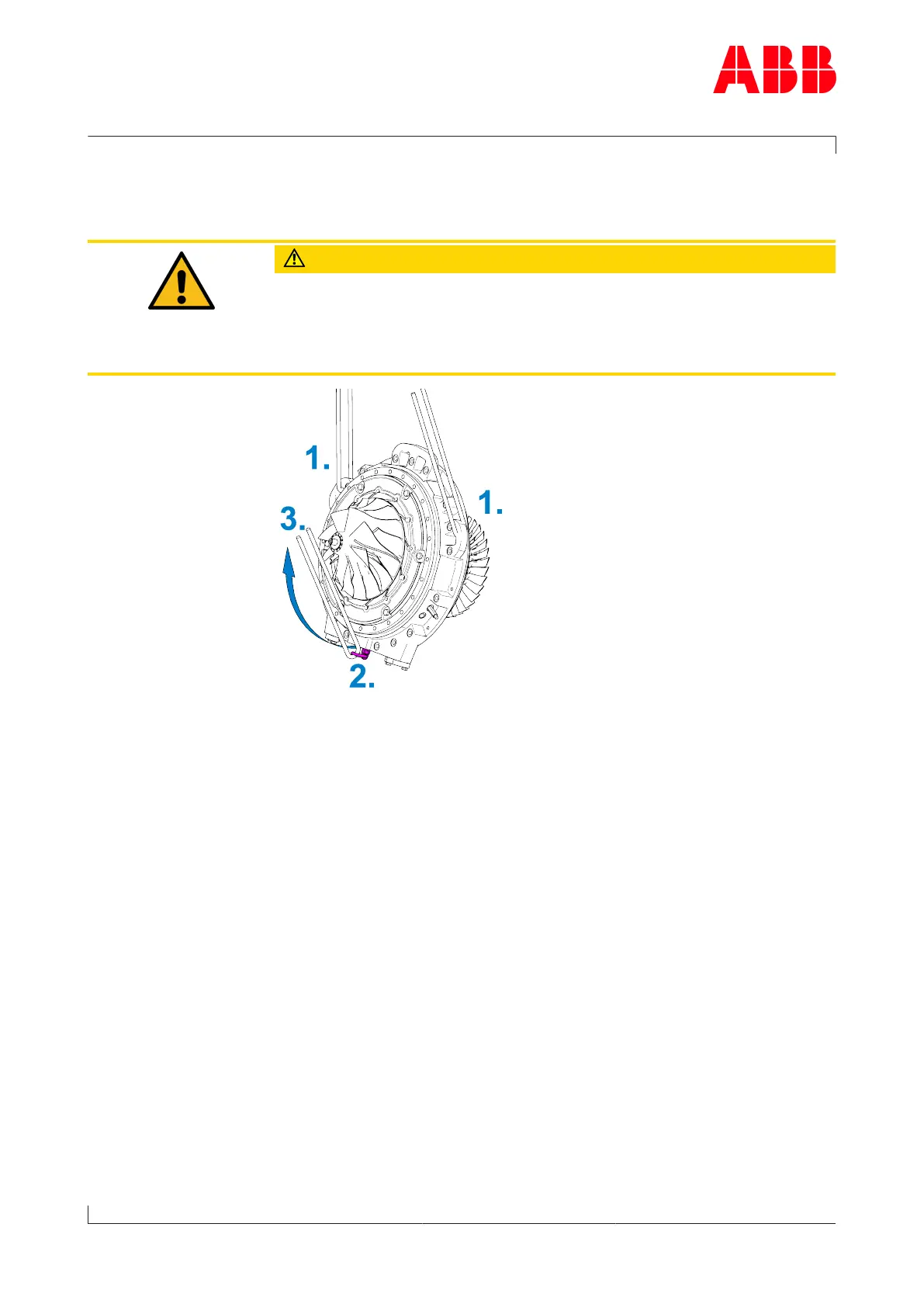

Cartridge group with two side suspension points
Or use two swivel lifting eyes at top.
CAUTION
Damage to compressor wheel
The lifting gear must not touch the compressor wheel at any time dur-
ing rotation.
u Choose appropriate lifting gear length.
1. Suspend cartridge group from the two side suspension points on the
crane using two lifting loops.
or
Attach two swivel lifting eyes to the side and suspend the cartridge
group from the crane using two lifting loops.
2. Attach third lifting loop with swivel lifting eye to thread of oil outlet
flange.
3. Rotate the cartridge group into a horizontal position by lifting.
Page 66 / 117
