Installing cartridge group
8.7
Page 95
© Copyright 2016 ABB. All rights reserved.
April 2016 HZTL2488_EN Revision C


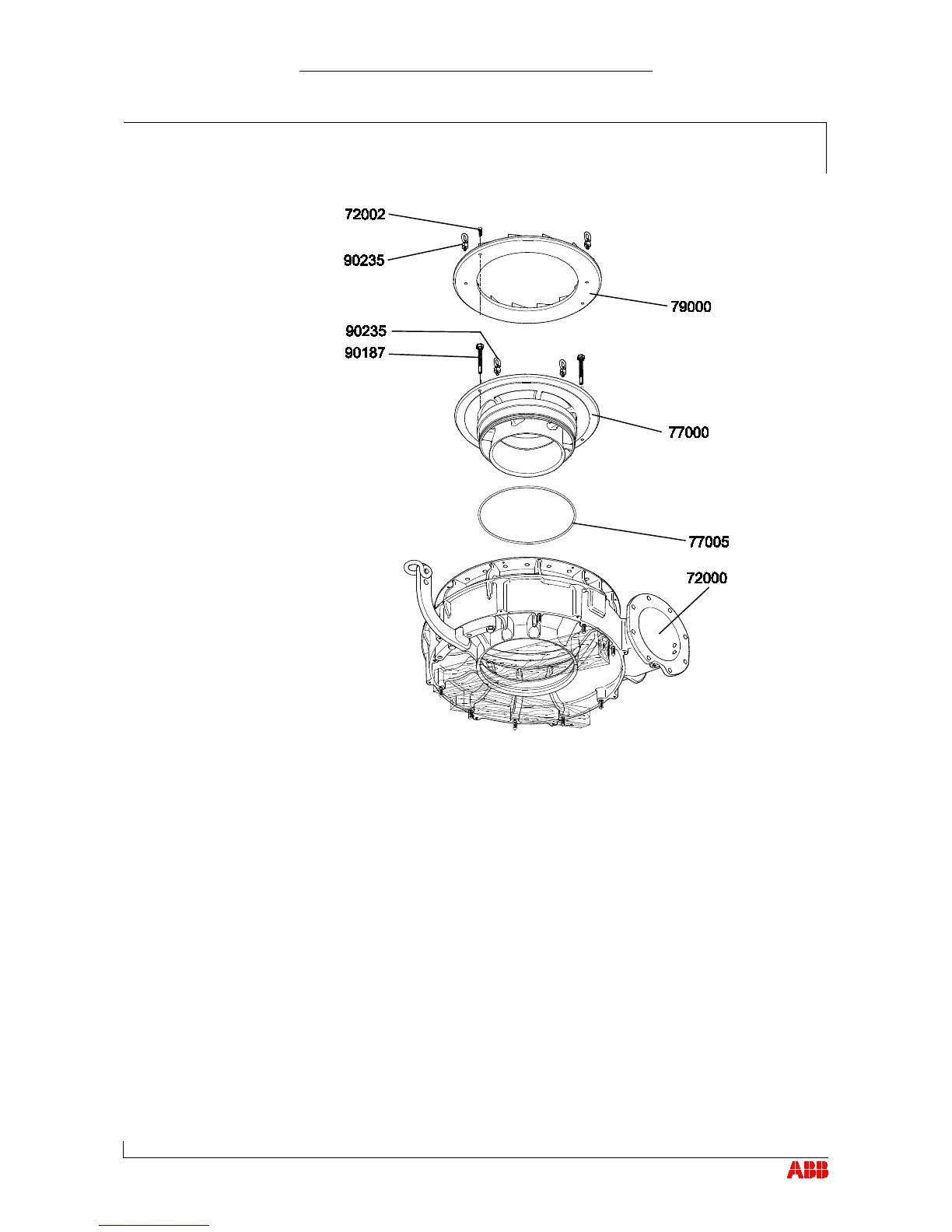

Fit the O-ring (77005) to the wall insert (77000).
 Fit the swivel lifting eyes (90235) and attach lifting gear.
 Align the wall insert (77000) using the centering screw (90187) and fit
it.
 Put the diffuser (79000) in place using the swivel lifting eyes (90235).
 Remove the swivel lifting eyes (90235).
 Fit the screws (72002).
