ABB TPS 48D01 - Axial Clearance a and Radial Clearance B

Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8

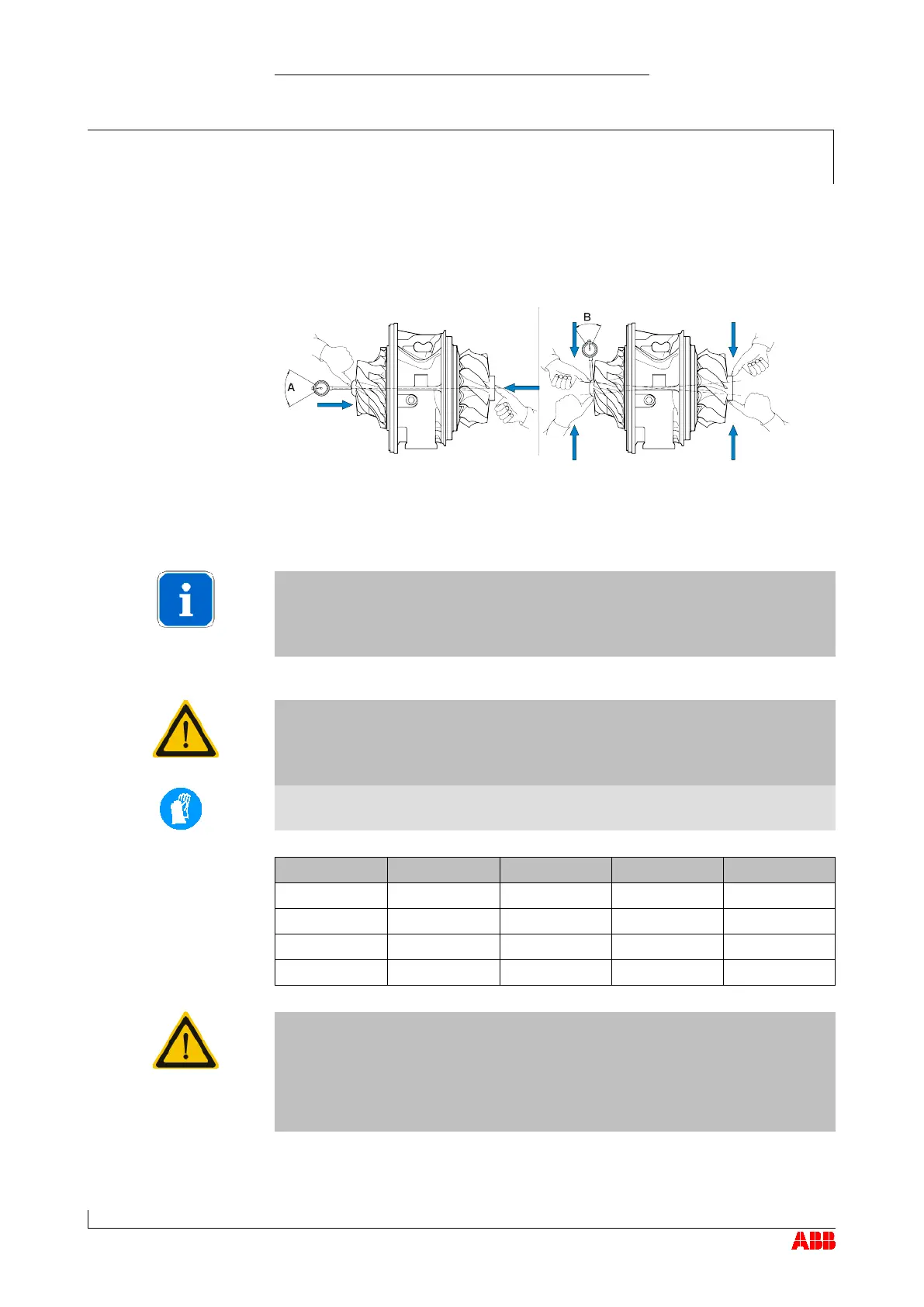

Axial clearance A and radial clearance B
8.4
Page 109
April 2015 HZTL2410_EN Revision D
Axial clearance A and radial clearance B
8.4

Following removal and before installation of the cartridge group, the
axial clearance A and radial clearance B must be measured and
noted.
NOTICE
In order to correctly measure the axial clearance A, the turbine must be
raised slightly.
WARNING
Risk of injury due to sharp edges on the compressor wheel
The compressor wheel has sharp edges which can cause injuries.
 Wear safety gloves.
Wear safety gloves against mechanical risks.
TPS48
TPS52
TPS57
TPS61
A minimum
0.08
0.10
0.12
0.15
A maximum
0.16 0.18 0.21 0.25
B minimum
0.50
0.61
0.72
0.81
B maximum
1.00 1.15 1.31 1.55
CAUTION
Clearances out of tolerance
Clearances out of tolerance and excessively worn components can be
the cause of serious damage to machinery and property.
 Have components assessed and, if necessary, replaced by an ABB
Turbocharging Service Station.
8.4
Axial clearance A and
radial clearance B [mm]
