ABB TPS 48D01 - Module Weights

Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8

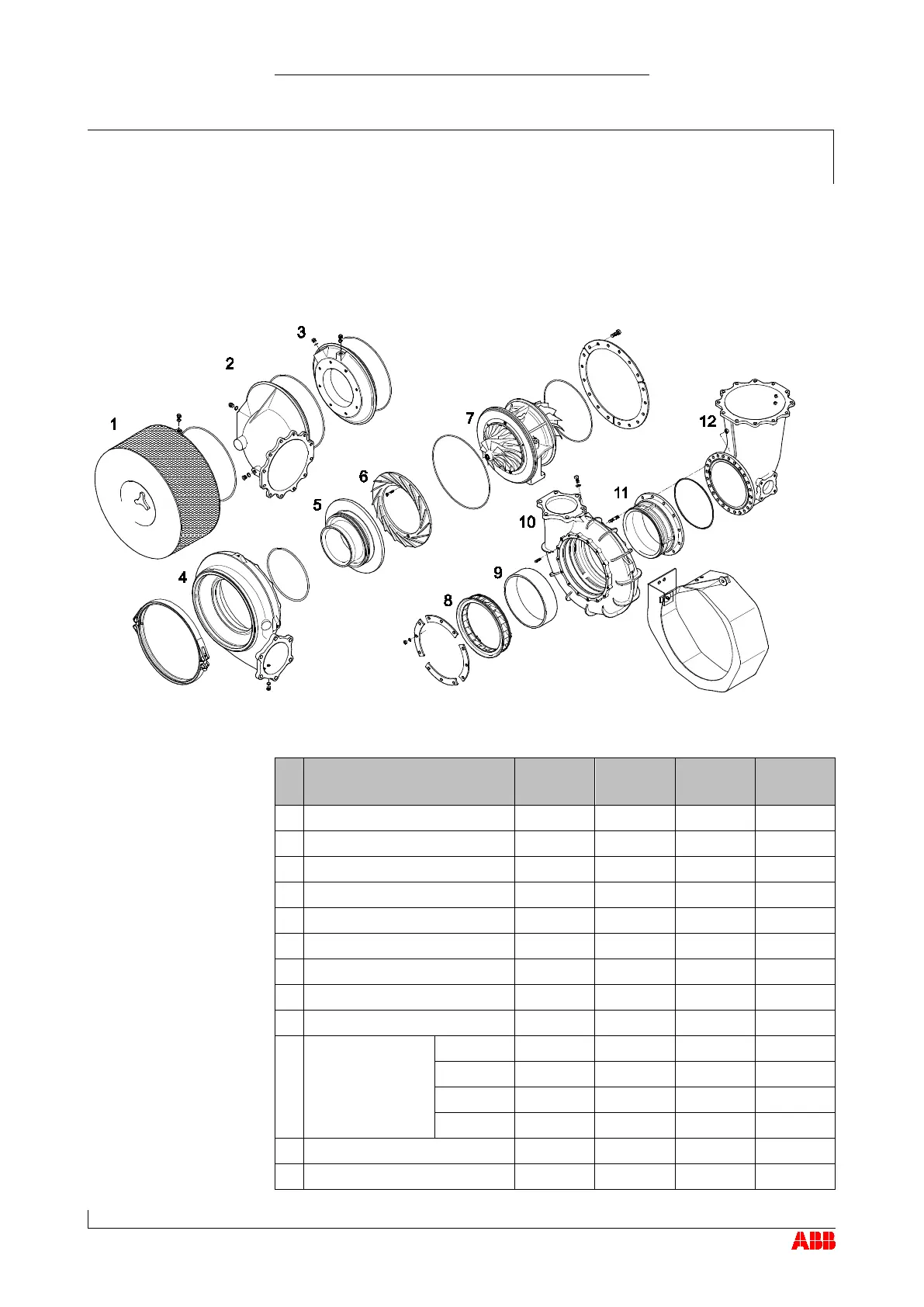

Module weights
8.2
Page 95
April 2015 HZTL2410_EN Revision D
Module weights
8.2
The specified weights of individual parts or assemblies are guides
rounded off to the next highest value.
Description
TPS48
[kg]
TPS52
[kg]
TPS57
[kg]
TPS61
[kg]
1 Filter silencer 19 30 40 65
2 Radial air suction branch 6 8 11 21
3 Axial air suction branch 4 4 6 9
4 Compressor casing 24 35 55 90
5 Wall insert 7 10 13 30
6 Diffuser 2 3 6 10
7 Cartridge group 35 50 85 140
8 Nozzle ring 1 2 3 6
9 Burst ring 2 3 5 12
10 Turbine casing
with external
burst protection
1 inlet 35 50 80 130
2 inlets 35 50 86 150
3 inlets - 53 95 170
4 inlets - - 95 170
11 Gas outlet flange 4 8 16 30
12 Gas outlet bend 18 25 40 60
