Installing the turbocharger
7.4
Page 90
April 2015 HZTL2410_EN Revision D
Installing the turbocharger
7.4
 Remove covers from oil connections.
 Visually inspect O-ring seals of oil supply and drain pipe (O-ring seals
for engine are not delivered by ABB Turbo Systems).


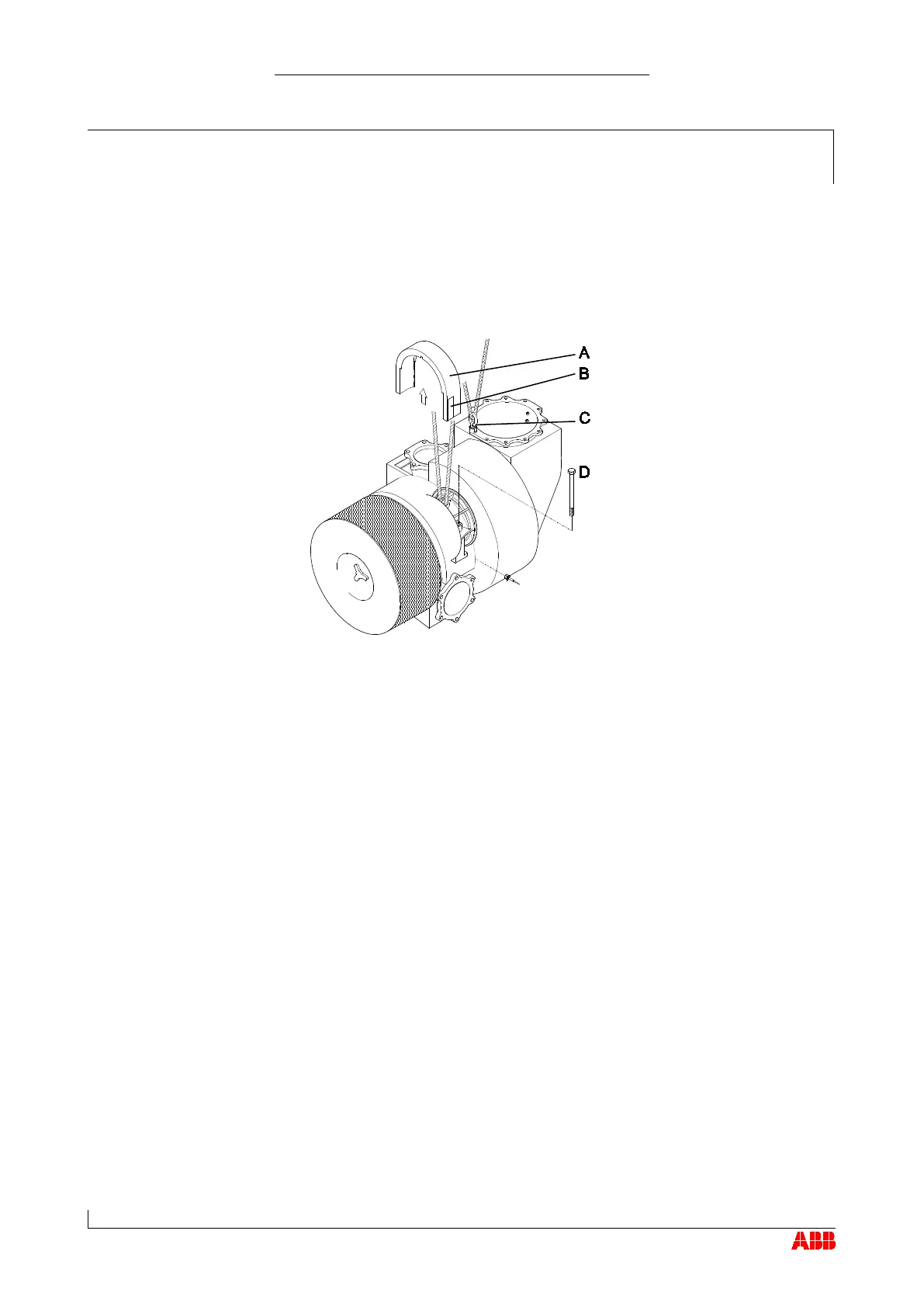

Fasten lifting gear to bearing casing.
 If a gas outlet manifold is provided, sling lifting gear around it
additionally or fasten it to lifting gear using a swivel lifting eye (C). (See
also section Transport / Weights.)
 Adapt turbocharger to suit engine.
 Tighten fixing screws (D) on bearing casing.
 Plug in cable connector of speed sensor and variable compressor
intake (VCI).
If provided, fasten hard insulation as follows:
 Adapt bearing casing insulation to suit.
 Tighten screws of bearing casing insulation (A).
 Adapt screws and plate (B) of bearing casing insulation to suit.
 Fasten all exhaust gas and air lines in accordance with engine
builder’s instructions.
Design with water-cooled bearing casing:
 Remove screw plugs from water connections and fit water pipes in
accordance with engine builder's instructions.
