Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembling and assembling
turbocharger
Page 100
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E
If the compressor casing cannot be removed easily, it can be pressed
off using the press-off tool (90042) against the turbine casing. To do
this, the two cover plates (1, 2) must be removed from the hard insula-
tion on the turbine casing.
The press-off tool can generate a high axial force and, if it is not used
properly (too much pressure on one side), it can damage the rotor.
It should thus be used alternately on both sides while avoiding ex-
cessive pressure on either side.
Loosen the screws (72011) and remove them together with the fas-
tening strips (72012).
Move the compressor casing (72000) with the wall insert (77000) care-
fully away, doing so horizontally.
Tap the wall insert (77000) out of the compressor casing using a nylon
hammer and remove the O-ring seal (77005).

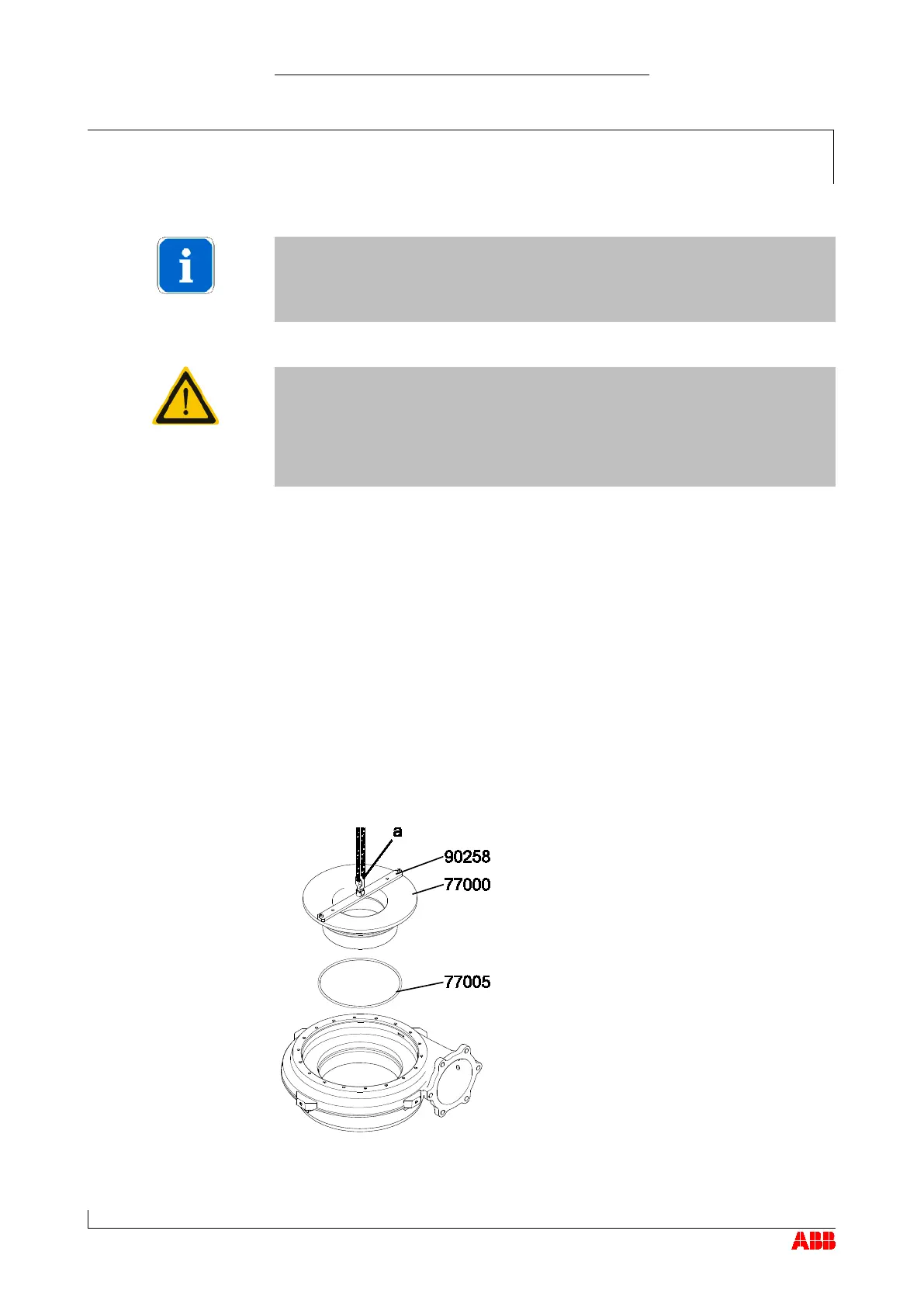

TPS61 wall insert removal
Fasten lifting beam (90258) to wall insert.
Fasten swivel lifting eye (a) to lifting beam.
Remove wall insert (77000) using lifting gear.
