Speed measurement
4.4
A speed measuring system permits continuous monitoring of the turbo-
charger speed.
CAUTION
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be
pulled out.
 Do not tension the speed measurement cables.

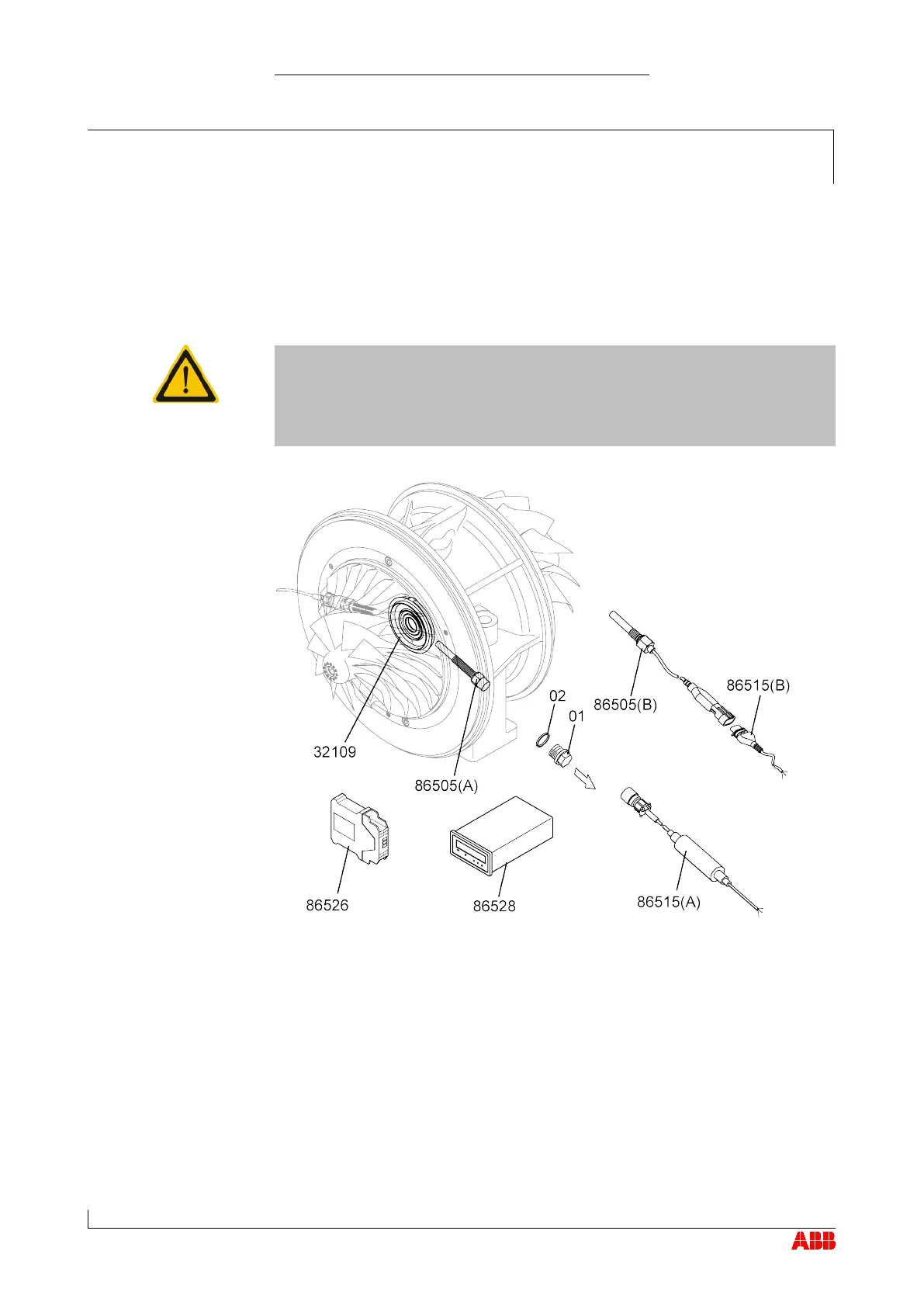

86505(A) Speed sensor (cable not integrated) 86526 F/I converter
86505(B)
Speed sensor (cable integrated) 86528 Tachometer
86515(A)
Cable connector to 86505(A) 01 Screw plug
86515(B)
Cable connector to 86505(B) 02 Gasket
