Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Table of tightening torques
8.6
Page 114
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E
Table of tightening torques
8.6

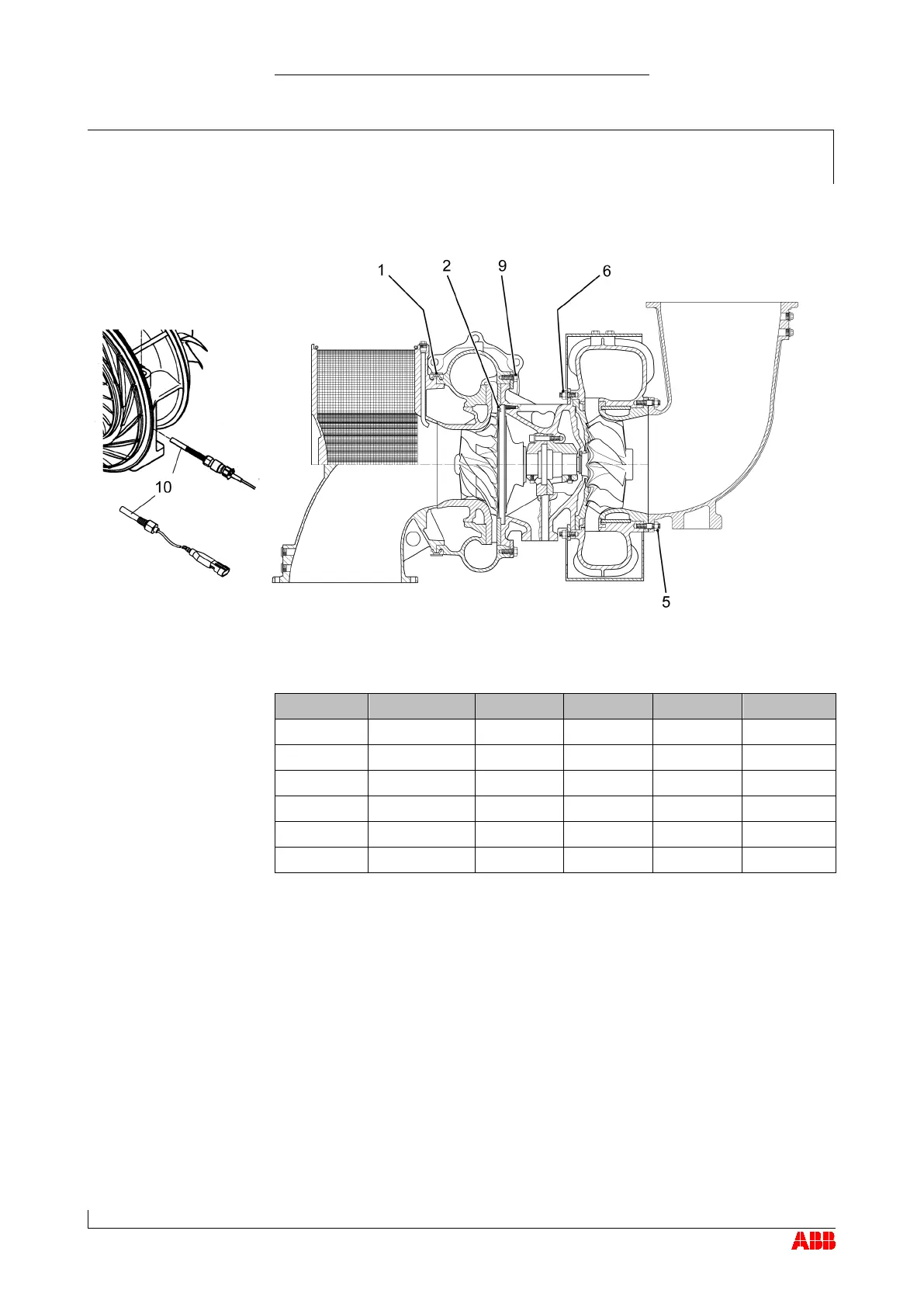

The following tightening torques must be observed for the designated
screw fittings:
Position
Part number
TPS48
TPS52
TPS57
TPS61
1 72020 60 60 60 60
2
42008
10
10
20
40
5 52433 20 40 65 65
6
51007
25
45
75
75
9 72011 35 70 105 170
10
86505
15
15
15
15
8.6
Tightening torques [Nm]
