Operation Manual / TPS44-F.. - TPS61-F..
Disasse
mbly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 101
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F


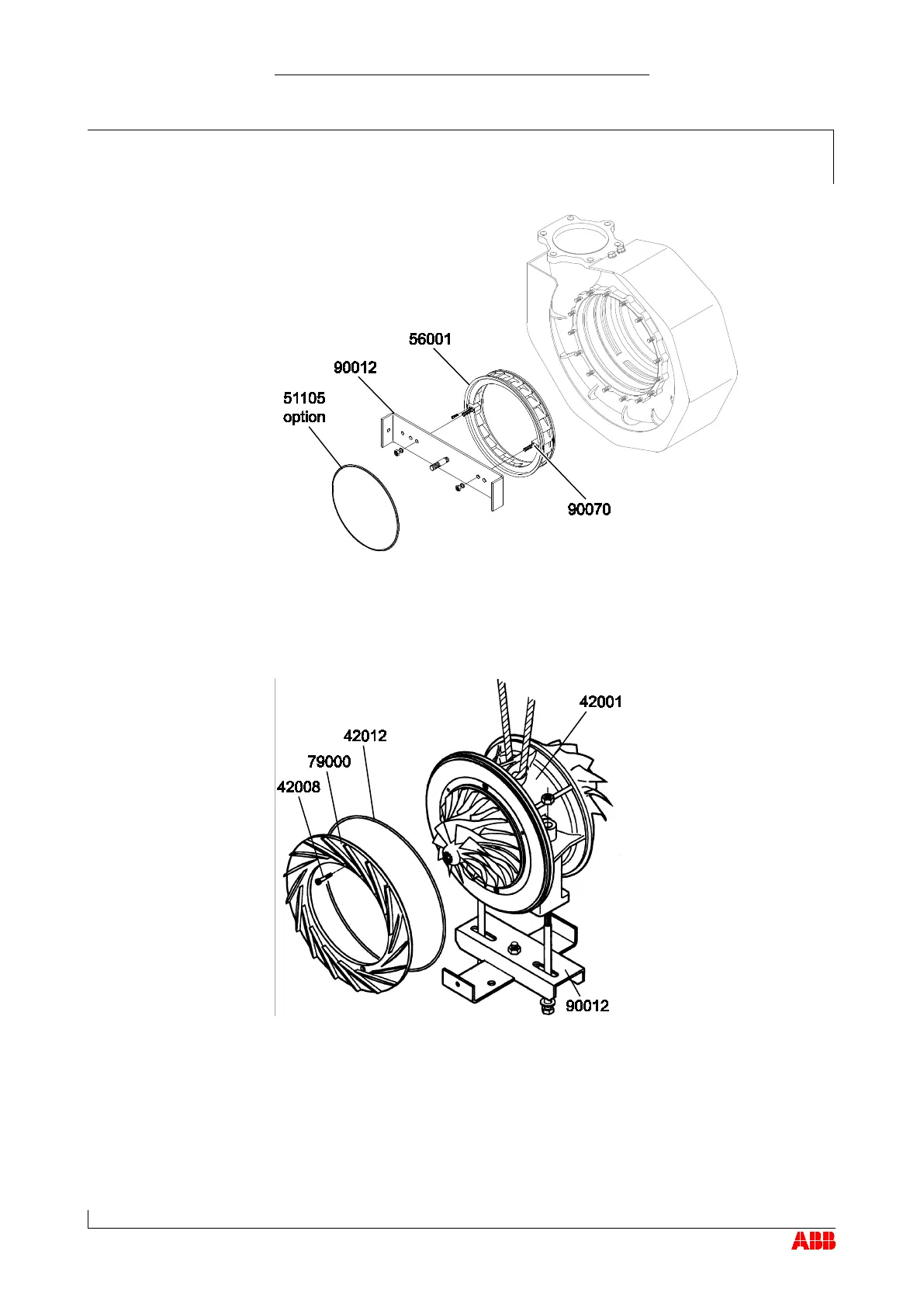

Withdraw nozzle ring (56001) using two extraction devices (90070)
and withdraw bottom part of service support (90012).
 Remove C-ring (51105).

Mount the cartridge group on the service support (90012) and bolt
it down firmly.
 Loosen screw (42008) and remove diffuser (79000) complete with
O-ring (42012).
 Measure the axial and radial clearances (see the section Axial and
radial clearances).
If provided
Disassembly of diffuser
TPS..-F33
