Operation Manual / TPS44-F.. - TPS61-F..
Preliminary remarks
1

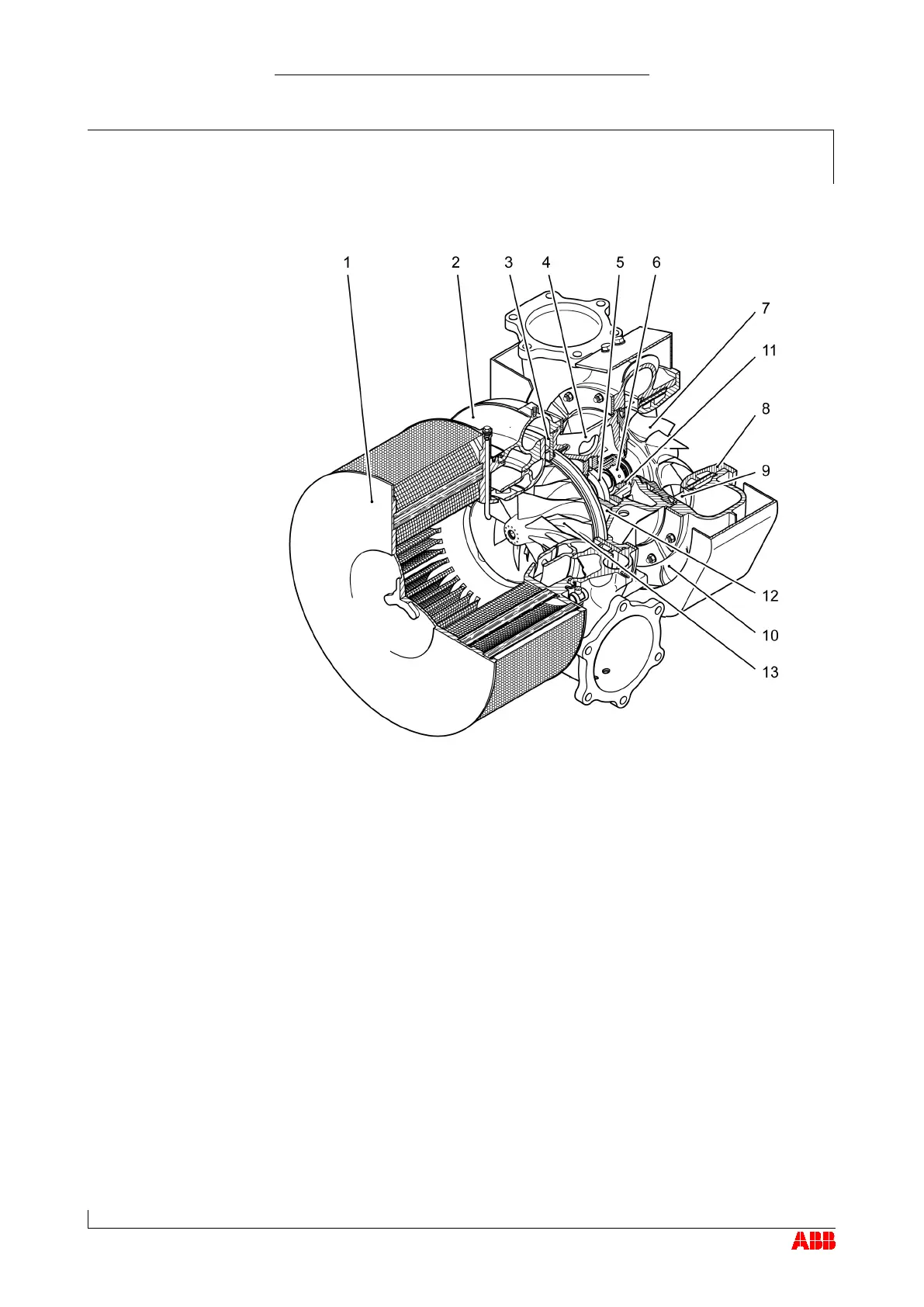

Layout and function
1.2
Page 4
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F
Layout and function
1.2
1
Suction branch / filter silencer 8
Gas outlet flange
2
Compressor casing 9
Nozzle ring
3
Diffuser 10
Turbine casing
4
Bearing casing 11
Turbine-end bearing flange
5
Axial thrust bearing 12
Compressor-end bearing flange
6
Radial plain bearing (visible only
at turbine end)
13
Compressor wheel
7
Turbine
