Installing the turbocharger
Page 88
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F
Installing the turbocharger
7.4
Remove covers from oil connections.
Visually inspect O-ring gaskets of oil supply and drain pipe (O-ring
gaskets for engine are not delivered by ABB Turbo Systems).
**) When the turbocharger is mounted on the engine support, the bolt
threads and screw heads must be lightly oiled (assumed friction coeffi-
cient µ = 0.12 for tightening torque)
Through hole in
bearing casing
[mm]
Strength class
in acc. with
DIN/ISO 898
TPS44 17 M16 230 10.9/12.9
TPS48 17 M16 230 10.9/12.9
TPS52 21 M20 455 10.9/12.9
TPS57 21 M20 455 10.9/12.9
TPS61 25 M24 780 10.9/12.9

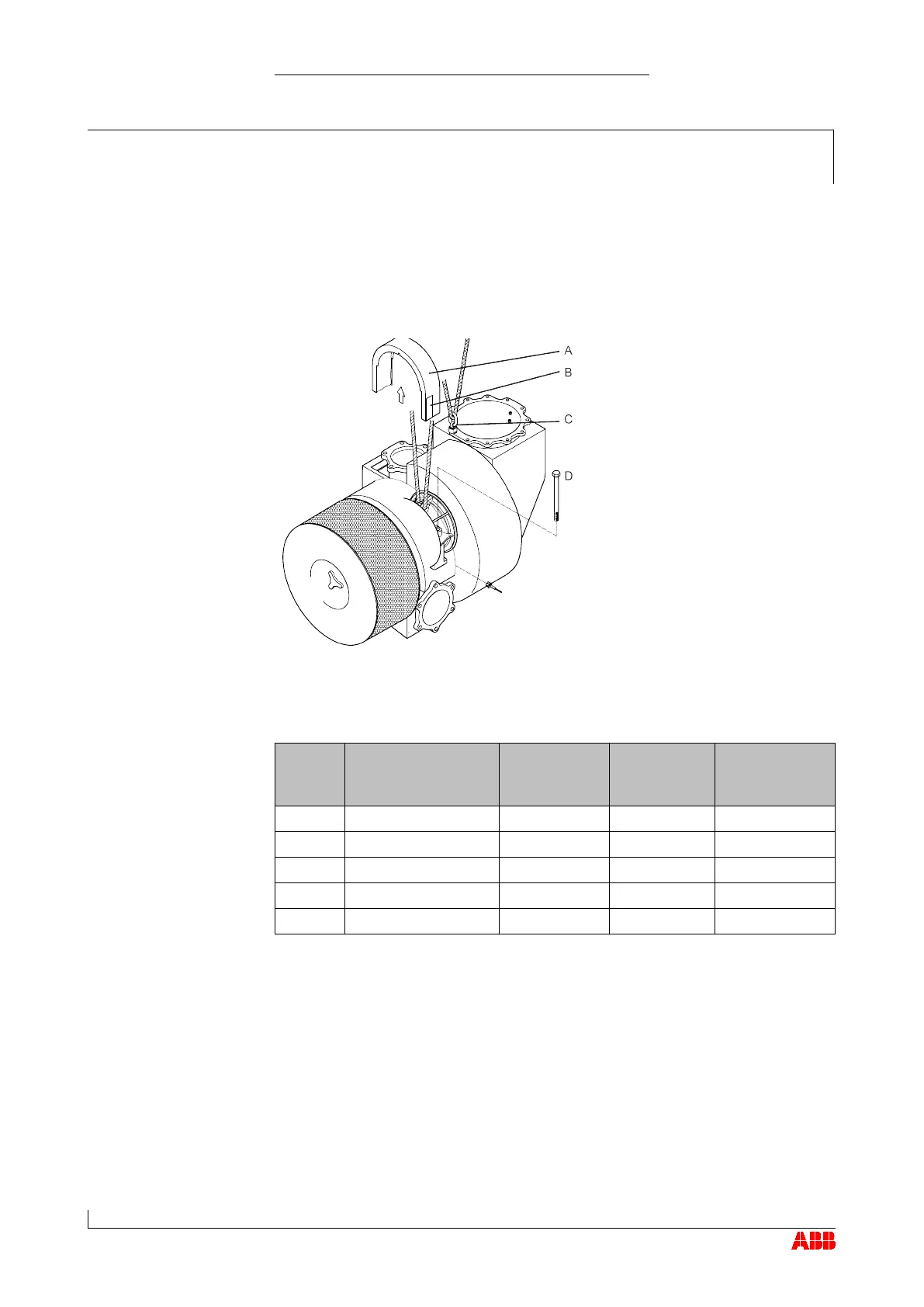

Attach lifting gear to bearing casing.
If a gas outlet manifold is provided, sling lifting gear around it addition-
ally or fasten it to lifting gear using a swivel lifting eye (C) (see also
section Transport / Weights).
Lift turbocharger, place on bracket and align.
Tighten fixing screws (D) to the bearing casing in accordance with the
table above.
Fasten all gas, water and air lines in accordance with the enginebuild-
er's instructions.
