Operation Manual / TPS44-F.. - TPS61-F..
Turbocharger rating plate
Page 13
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F

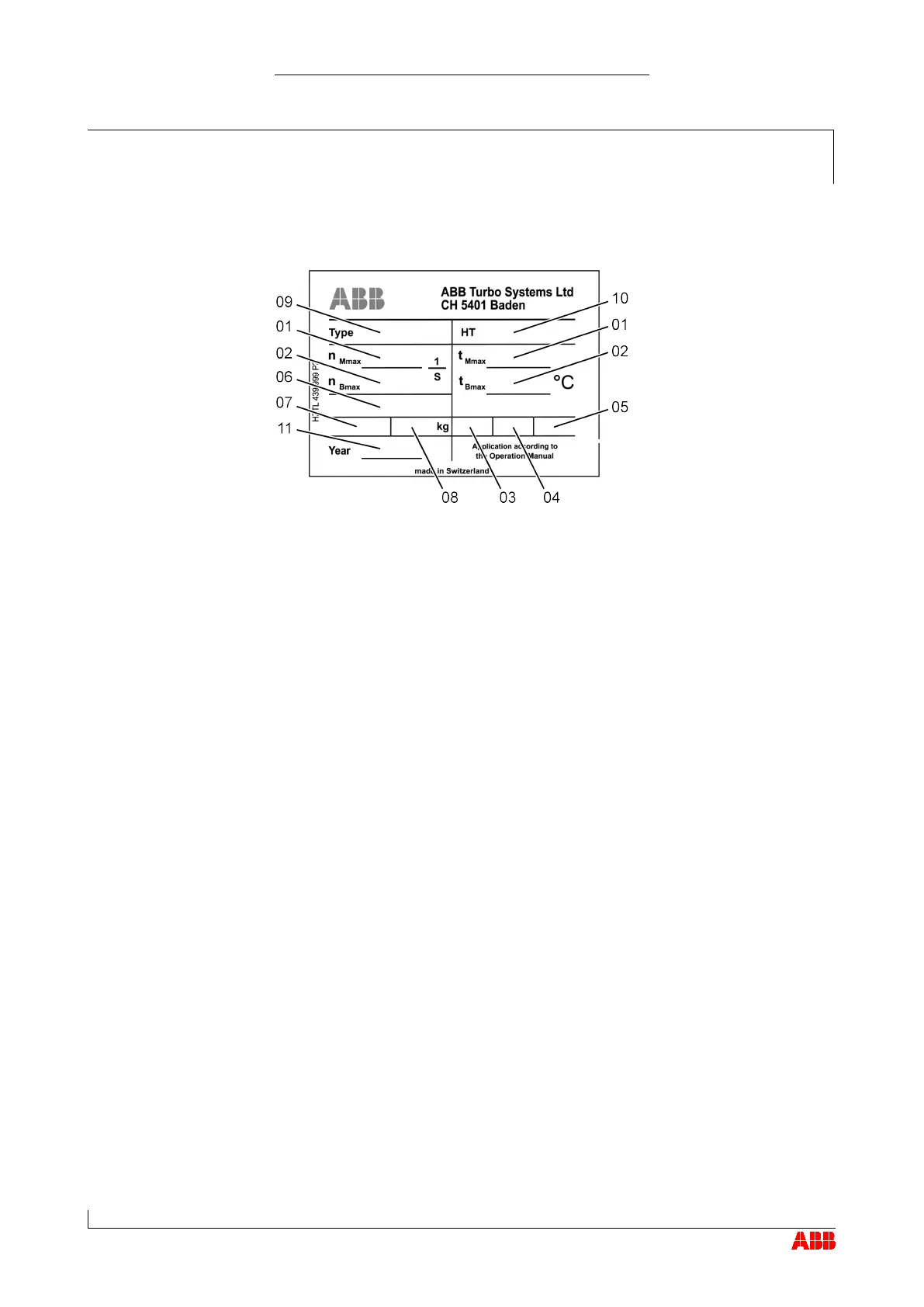

Turbocharger rating plate
1.7
01
Turbocharger operating limits at engine overload (110%).
Only when operating in the test rig unless otherwise agreed with the
enginebuilder.
02
Turbocharger operating limits during operation
03
Inspection interval of plain bearings in 1000 h
04
Replacement interval of compressor in 1000 h
05
Replacement interval of turbine in 1000 h
06
Customer part number
07
Designation of the special design
08
Weight of turbocharger in kg
09
Turbocharger type
10
Serial number
11
Year of construction of turbocharger
Recommended inspection
and replacement intervals
of turbocharger compo-
nents
