Operation Manual / TPS44-F.. - TPS61-F..
Maintenance
5
Cleaning components mechanically
5.4
Page 73
© Copyright 201
6 ABB. All rights reserved.
September 2016 HZTL2412_EN Revision F
Cleaning the turbine end
Baked-on layers of dirt from heavy fuel oil or coked oil, occur at the tur-
bine end. The contamination can be removed by soaking and brushing.
The soaking of the layers of dirt as well as the cleaning of the turbine are
described below.
Product
A [mm]
B [mm]
C [mm]
TPS44 91 15 173
TPS48
108
17
205
TPS52 128 20 245
TPS57
157
25
300
TPS61 187 30 357

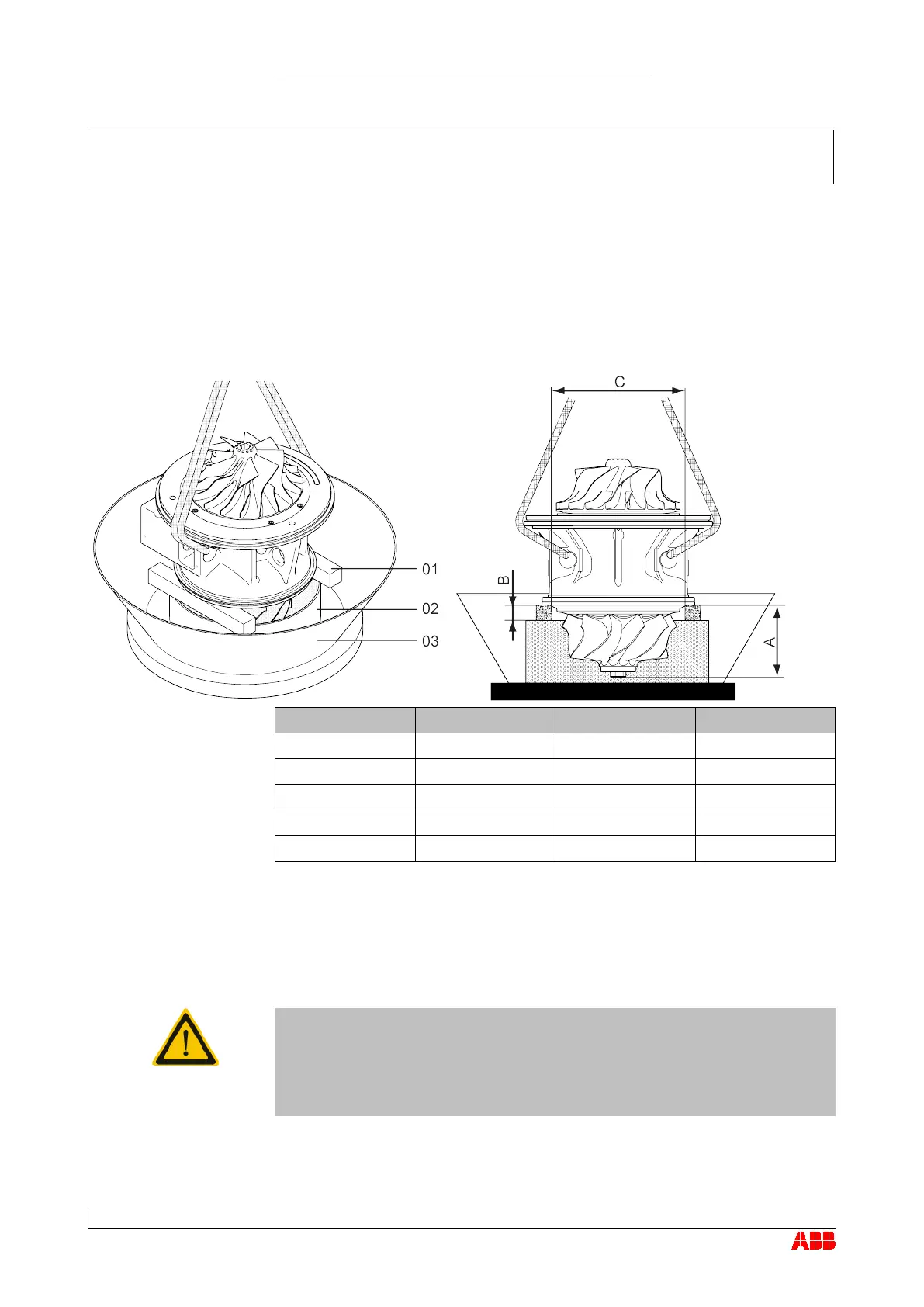

To soak the layers of dirt on the turbine, the cartridge group can be sub-
merged vertically in a tank (02) with liquid.
 Place the tank (02) in a larger container (03), so that the excess liquid
can be collected.
CAUTION
Selection of the cleaning agent
Cleaning agents which contain chlorine attack metals.
 Use only pH-neutral cleaning agents which do not attack metals.
 Observe safety data sheet.
 Fill the tank (02) with soaking liquid.
Soaking the dirt
