Uniswitch Operation and
Maintenance Manual
UNIS14GB 05-02
4.4.1.3 Withdrawal from the test/disconnected position onto the service truck

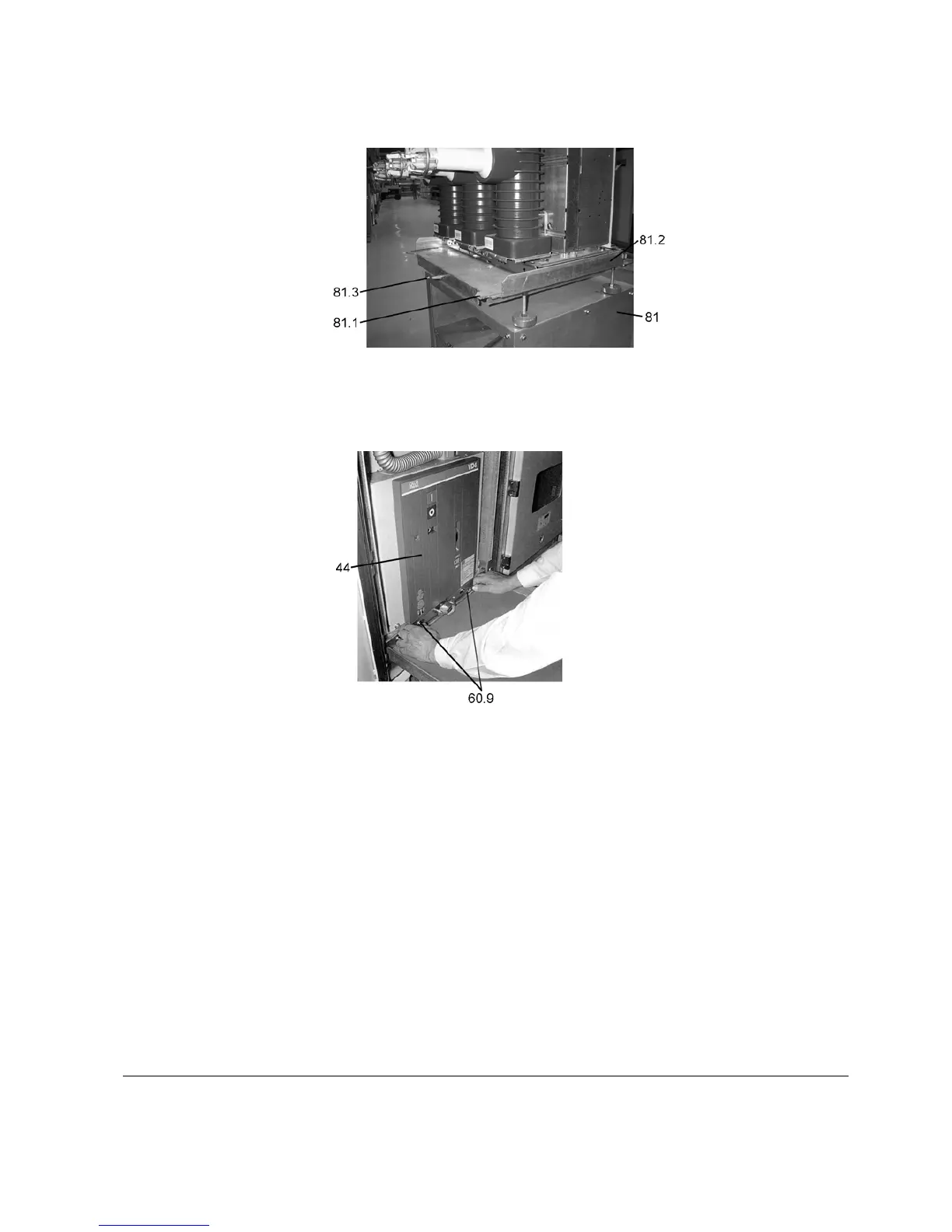

Figure 4.10
Positioning the service truck (81) with the guide pins on the adjustable height
bench (81.2) top at the correct height for approach to the switchgear panel,
and engaging the catch (81.3).
Figure 4.11
Service truck engaged with the switchgear panel. Withdrawable part (44)
released for withdrawal with the handles sliding (60.9) inwards.
