4.4.2 Opening and closing the doors
Preparatory
! The cable compartment door can be removed when the
switch-disconnector is in the earthed position and the
interlocking selector is in the “Door open” position and
the earthing switch is in “Closed” position..

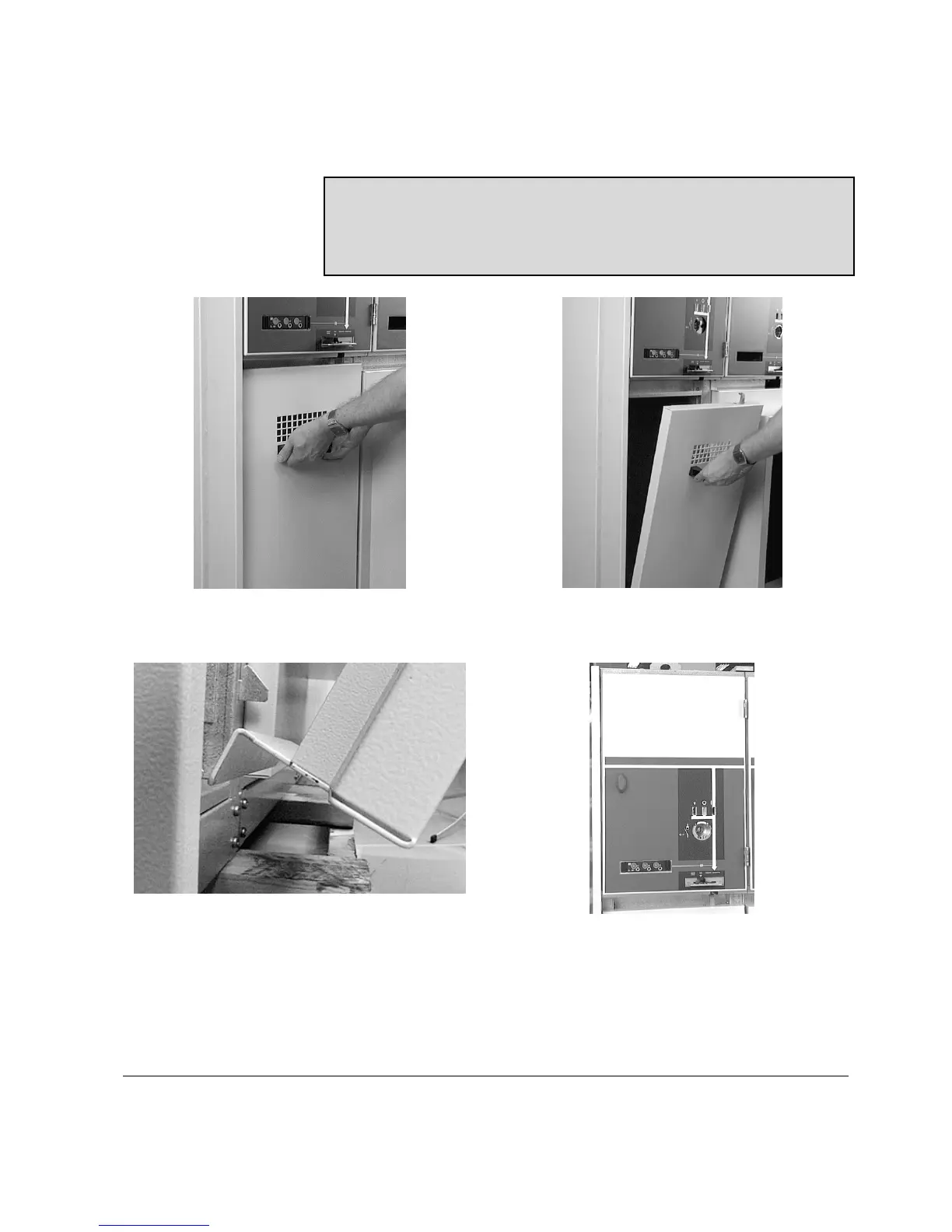

Figure 4.13
Lift the door by the handle
Figure 4.14
Pull the door away
Figure 4.15
Closing the door: Lift the door first onto the door step
and then close it. Ensure that the door is properly
closed by pushing it downwards.
Figure 4.16
The door to the control and secondary apparatus
compartment can be opened by turning the handle in
a clockwise direction, and closed by turning in an
anticlockwise direction.
