Operating diagram
The plant diagram shows how the VSN300 Wi Logger Card allows
the inverter to connect to a LAN local network using a Wi-Fi wireless
connection.
The VSN300 Wi Logger Card features an integrated webserver that
enables to establish a direct connection to a PC, smartphone or tablet,
allowing for board setup and local monitoring of the inverter.
The setup of the board can also be carried out using a smartphone
or tablet on which the Plant Viewer for Mobile App has been installed
(therefore, avoiding the need for accessing the Web interface).
When the inverter is connected to the WLAN network with access to the
Internet, the device allows data to be transferred to the Aurora Vision®
CLOUD platform for Internet monitoring using the Plant Portfolio Manager
/ Plant Viewer / Plant viewer for Mobile.
Plant Portfolio Manager /
Plant Viewer / Plant Viewer for Mobile
Plant Viewer for Mobile
VSN 300
WIFI LOGGER CARD
O
W
E
R
A
L
A
R
GFI
E
S
C
D
O
W
N
E
N
E
R
TR
IO
TRI
O
OWE
R
A
L
A
R
G
F
I
E
SC
D
O
W
N
E
N
E
R
WiFi router
INTERNET

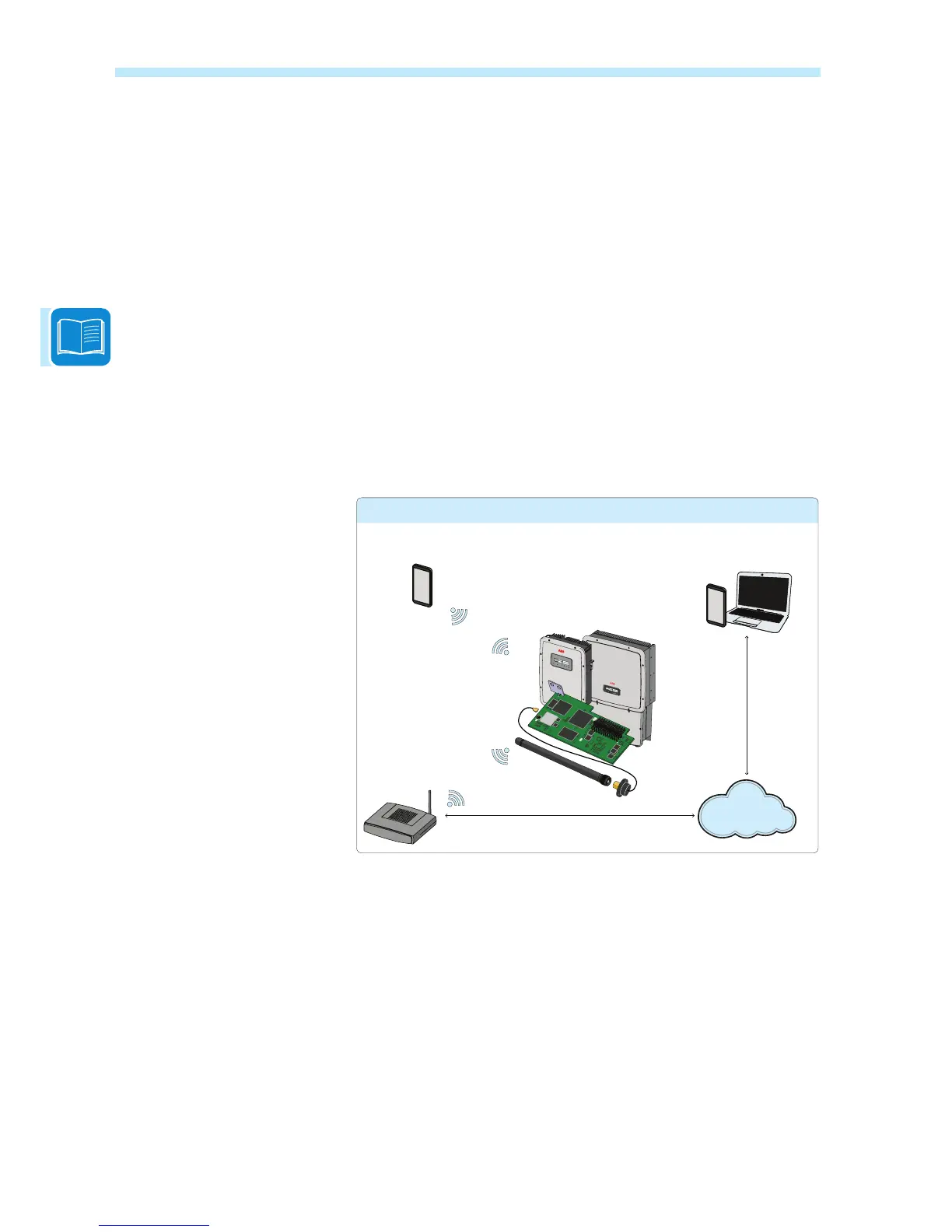

VSN300 Wi Logger Card operating diagram
