System Overview
24
OPTIS™ Integrated Next Operation and Maintenance Manual – 600173796 Rev. A
DOC Holster
The DOC holster clamps onto the procedure table rail and serves as the signal
hub for Physiology and OCT. It also serves as a storage cradle for the DOC
when it is not in use.

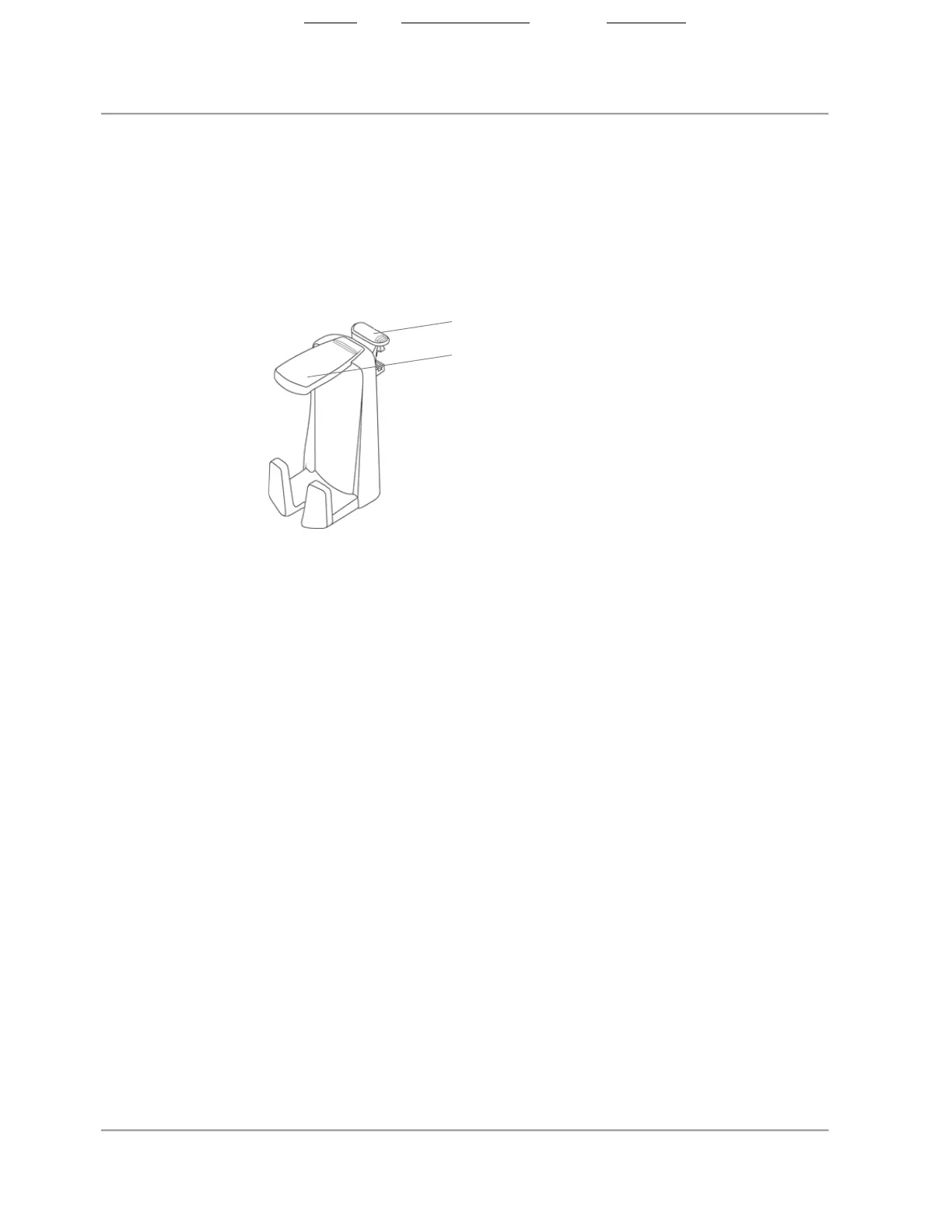

Figure 6. DOC Holster
Wi-Box AO Transmitter
The Wi-Box AO Transmitter is installed in the catheterization laboratory between
the hemodynamic recording system and the aortic pressure transducer (AO).
The wireless connection to the Wi-Box AO Transmitter is made during setup for
the procedure. Refer to the installed software User Manual for more information.
System Accessories
• PressureWire™ Guidewire
• Wi-Box AO Transmitter
• Dragonfly™ OPTIS™ Imaging Catheter or Dragonfly OpStar™ Imaging
Catheter
• Sterile DOC cover
• 3 ml syringe
Note: Contact Abbott Service for order numbers of accessories.
