Abit SG-72 - 2-5. FAN Connectors

Hardware Setup 2-5

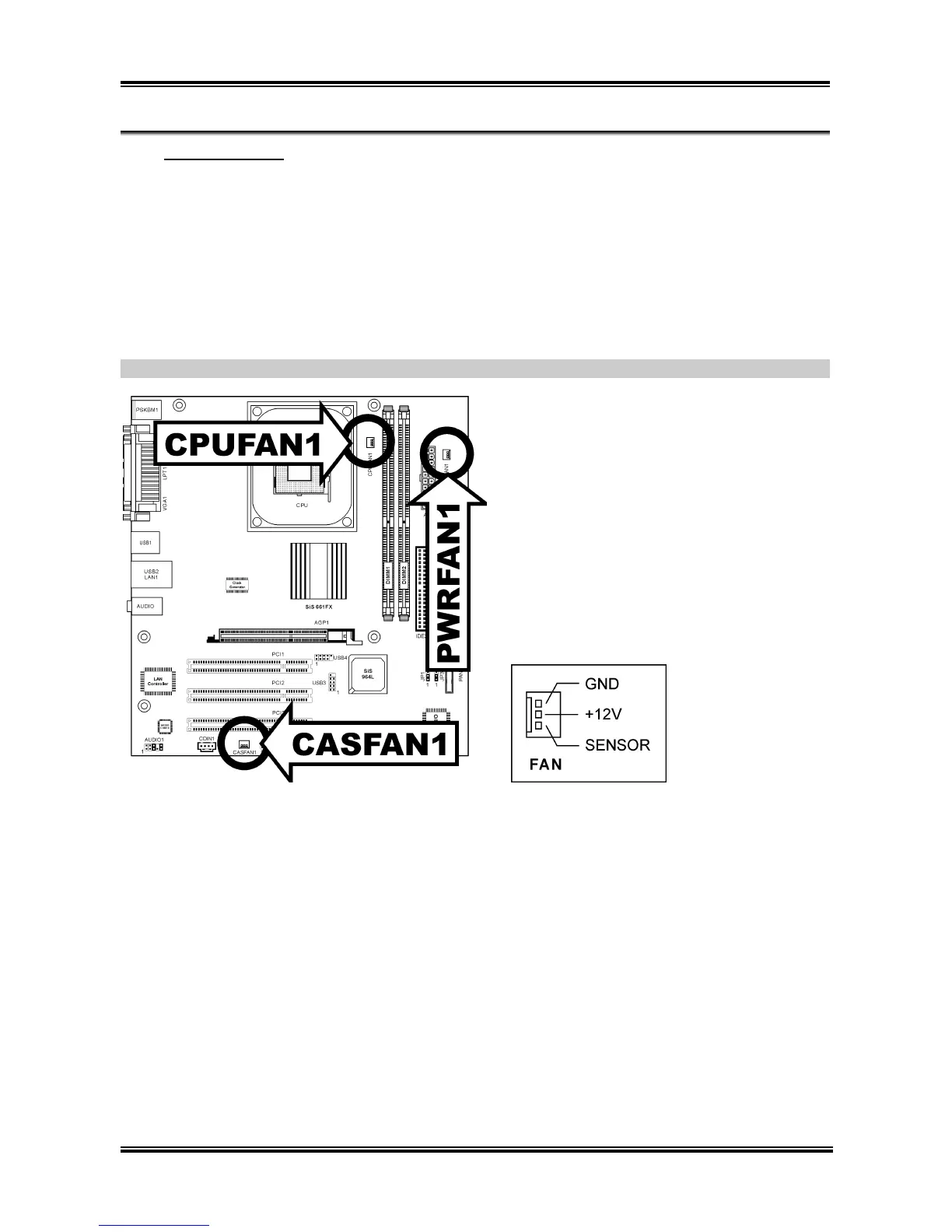

(2). FAN Connectors
These 3-pin connectors each provide power to the cooling fans installed in your system.
The CPU must be kept cool by using a powerful fan with heatsink. The system is capable of monitoring
the speed of the CPU fan.
• CPUFAN1: CPU Fan
• PWRFAN1: Power Fan
• CASFAN1: Case Fan
WARNING: These fan connectors are not jumpers. DO NOT place jumper caps on these connectors.
