Hardware Setup 2-15

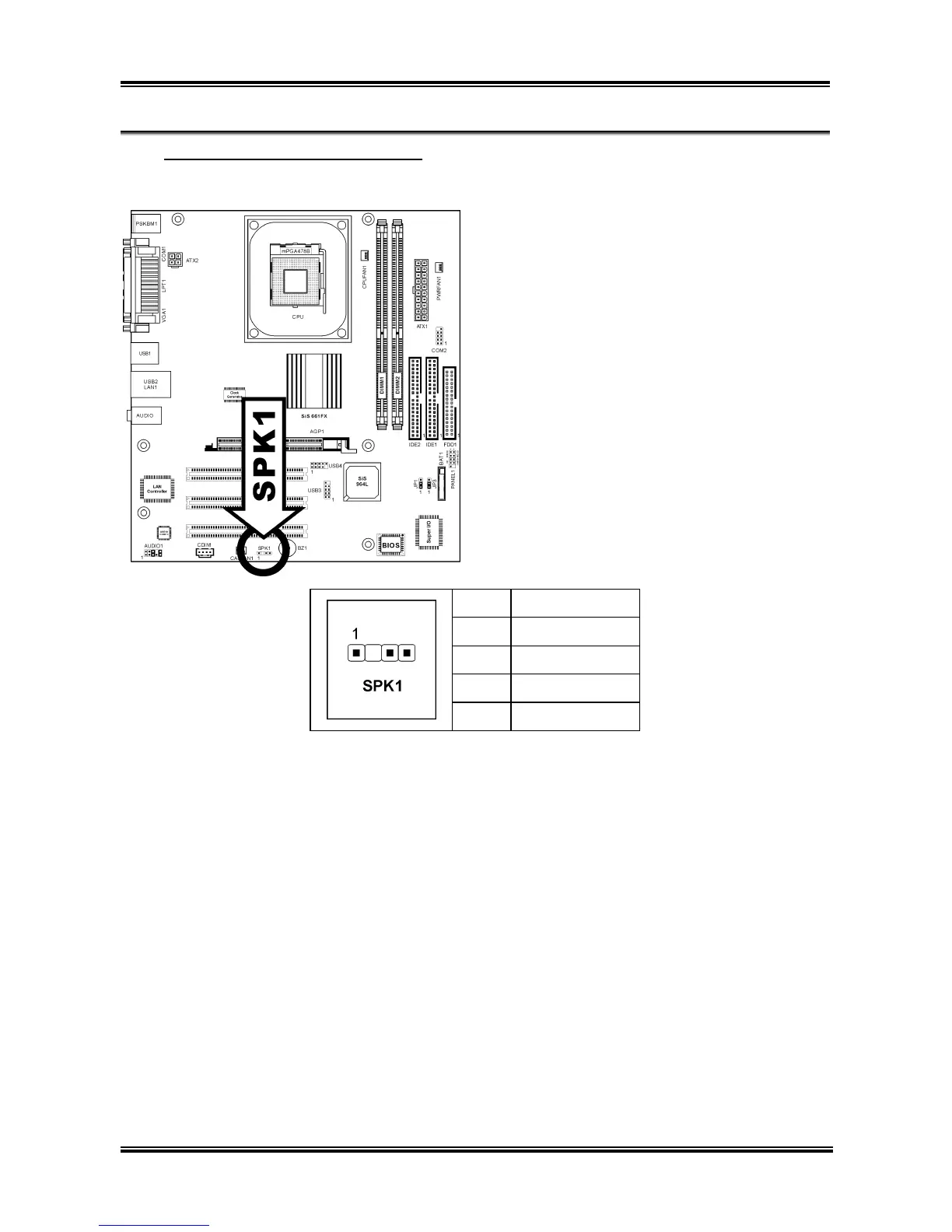

(13). Chassis Speaker Connection Header
This header connects to the computer case’s built-in speaker.
Pin Pin Assignment
1 Signal
2 NC
3 Ground
4 +5V
