TAKING INTO OPERATION AND CHARGING PROCEDURE
14
2. Open the charging socket on the vehicle.
3. Check the two indicator LEDs on the top part of the EVSE 803/813: When the wall-
box is ready for operation, the blue LED indicator will flash briefly every 5 seconds,
while the green LED will be not be illuminated.
4. Remove the charging connector from its compartment by
lifting it slightly by the handle
and pulling it downward
.
5. Plug the charging connector into the socket completely:
The charging process will only start when the two signal-
ing pins in the charging connector will each have sent feed-
back regarding a safe connection.
The blue LED will be illuminated continuously while the con-
nection between wallbox and vehicle is being established.
When the charging procedure begins, the blue LED will be
extinguished and the green LED will be illuminated continu-
ously. Charging is complete when the green LED is flashing.
PLEASE NOTE!
Should there have been a malfunction during or after the charging pro-
cedure, this will be shown by the indicator LEDs. The following chapter
describes how you can identify operational states and errors and which
measures will become necessary.
Now unplug the charging connector from the charging socket on the vehicle and re-
place it in the compartment on the housing of the EVSE 803/813 by inserting the plug
into the compartment and slightly lowering the handle.

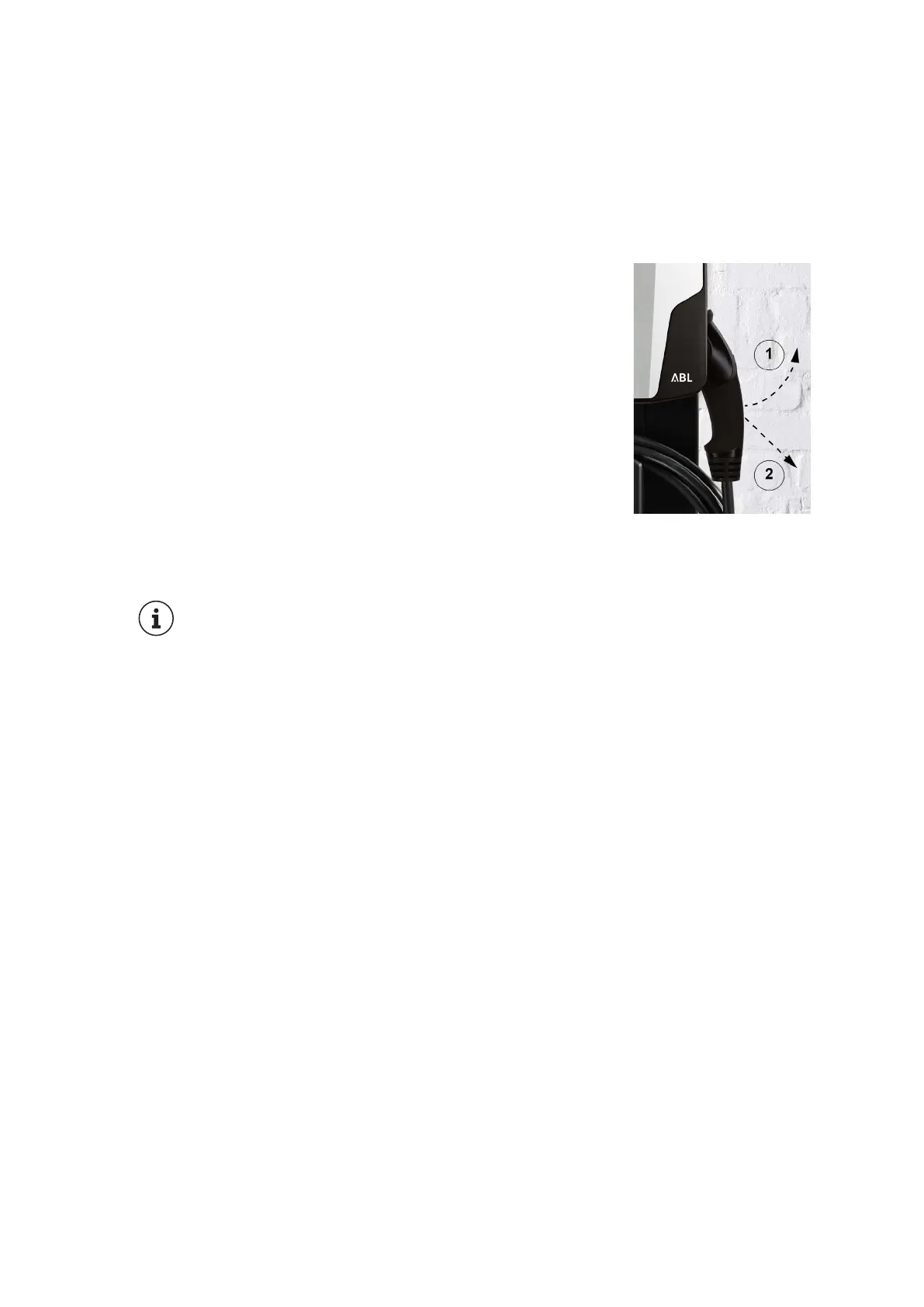

Removing the EVSE 8X3 charging
connector (illustration approximate)
