ABL eMH1 Installation And Operating Manual

APPENDIX
23
ABBREVIATION DESCRIPTION MEANING
RCCB
Residual Current
operated Circuit-
Breaker
FI residual current circuit breaker
RCM
Residual Current
Monitor
Monitoring device for the detection of fault
currents of a critical value
RFID
Radio Frequency
IDentification
Identification using electromagnetic waves
Drilling template

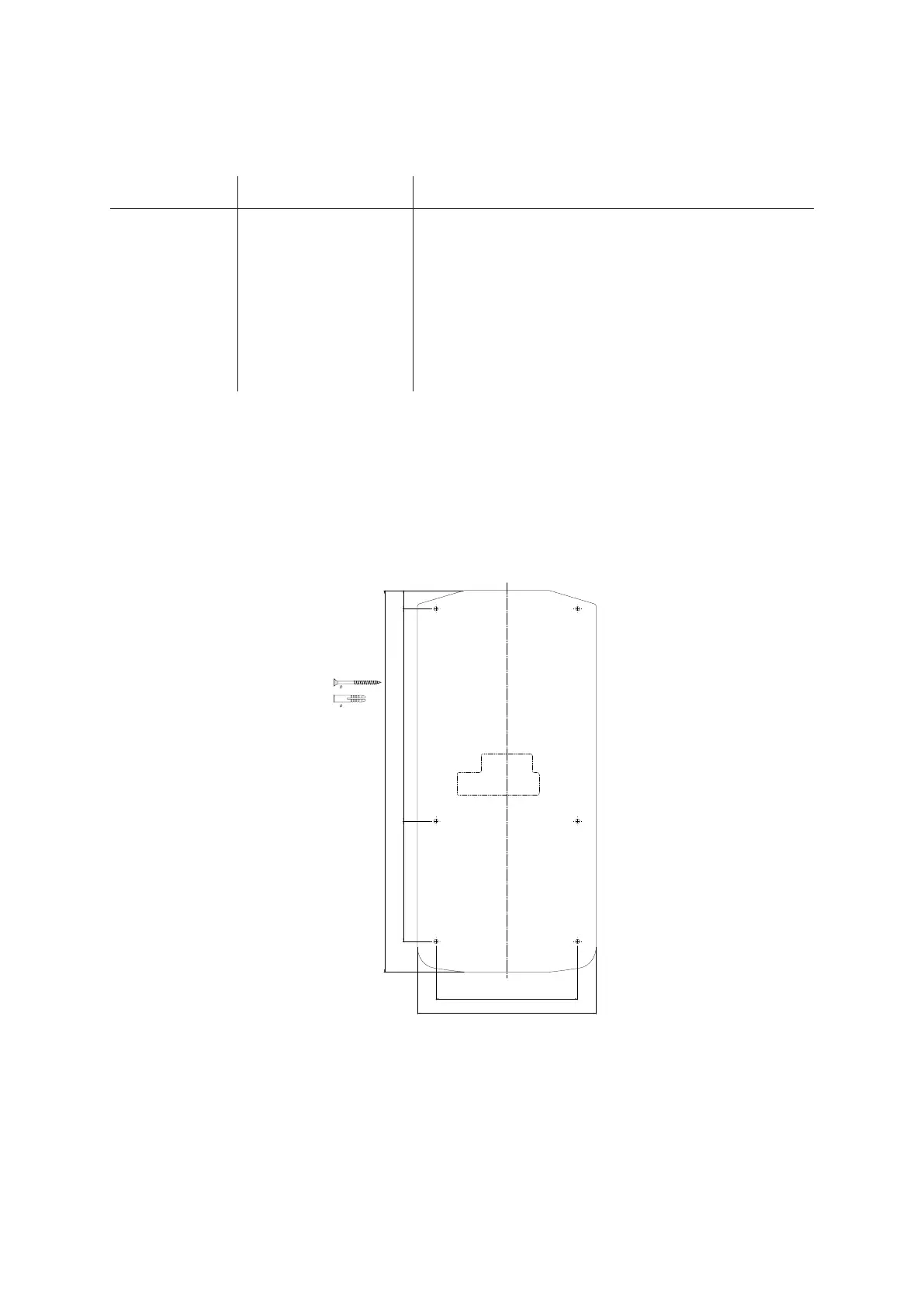

Your eMH1 Wallbox comes with a template (see reduced-size illustration) for drilling
the mounting holes in a suitable substrate. Electrical installation of the eMH1 model
variants described in these instructions must always be left to a qualified electrical
contractor who will connect the device to the local power supply.
You may, however, carry out the mechanical installation of the wallbox and drill the
necessary mounting holes yourself: This is described in detail in section “Installation
and power supply connection” on page 7.
The following instructions, which you must check in advance and may need to discuss
with the contractor, always apply to the installation of the charging station:
• The mounting surface area required for charging stations of the EVSE 803/813 series
is 480 x 230mm (H x W).
23 268 152
179
226
482
5x60
TOP
8x40
6x
6x
Bohrschablone
8752405_Bracket
Reduced-size illustration
of the drilling template included

ABL eMH1 Specifications

General

Model	eMH1
Category	Battery Charger
Charging Power	3.7 kW
Connector Type	Type 2
Protection Class	IP54
Operating Temperature	-25°C to +40°C
Charging Current	16 A
Input Voltage	230 V
