INSTALLATION AND POWER SUPPLY CONNECTION
8
DANGER!
In case of visible damage to the wallbox occurring during installation or
use, the device must be taken out of operation immediately, as this poses
a danger to life and limb. In this case, replacement of the wallbox is re-
quired!

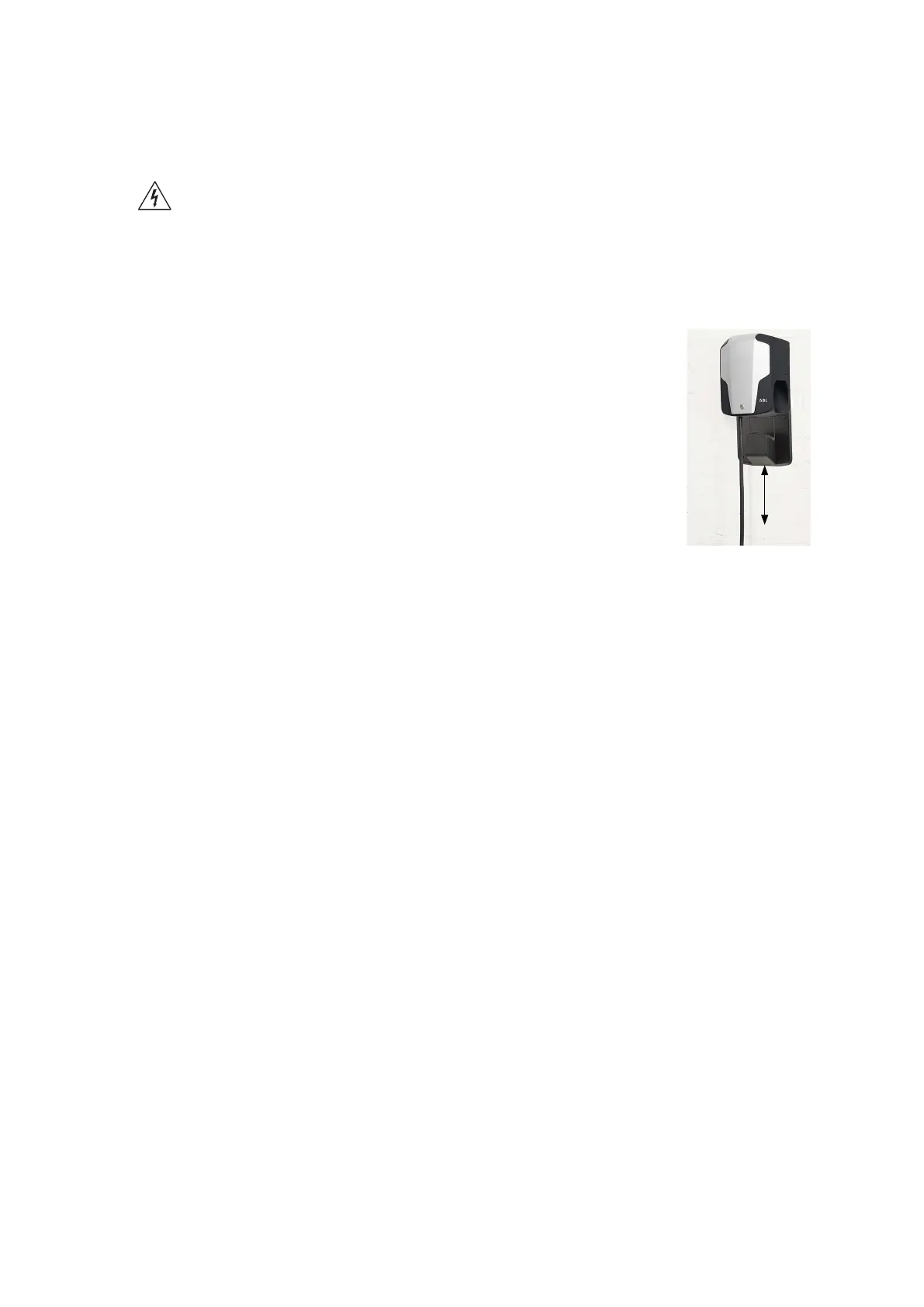

• The recommended installation height is 140 to 160cm from the floor to the lower
edge of the housing.
• The required mounting area for the model variants of the eMH1
Wallbox described in this manual is at least 480 x 230mm (H x W).
• The mounting area must have an even surface that provides suf-
ficient stability for installing the eMH1.
• Choose a mounting site that allows you to reach the charging sock-
et of your vehicle comfortably with the charging connector of the
eMH1: The cable must not under any circumstances be strained
when connected to the vehicle.
Preparation and mechanical installation
After determining the mounting site for the eMH1, you can begin with the mechanical
installation. For installation you will need the following components:
• Power drill or cordless drill (not included)
• Drill bit Ø 8 mm, appropriate for the wall material (not included)
• Screwdriver for 5 x 60 torx-headed screws (not included)
• Phillips head screwdriver for M3 x 15 screws (not included)
• Pliers or cutter for breaking or cutting out the cable inlet at the edge of the eMH1
wall bracket (not included)
• Six fully or partly threaded, countersunk 5 x 60 torx headed screws and matching
8x40 mm nylon wall plugs (included)
• Drilling template for the EVSE 803 / 813 (included)
• Spirit level if required (not included)
140 to
160 cm
