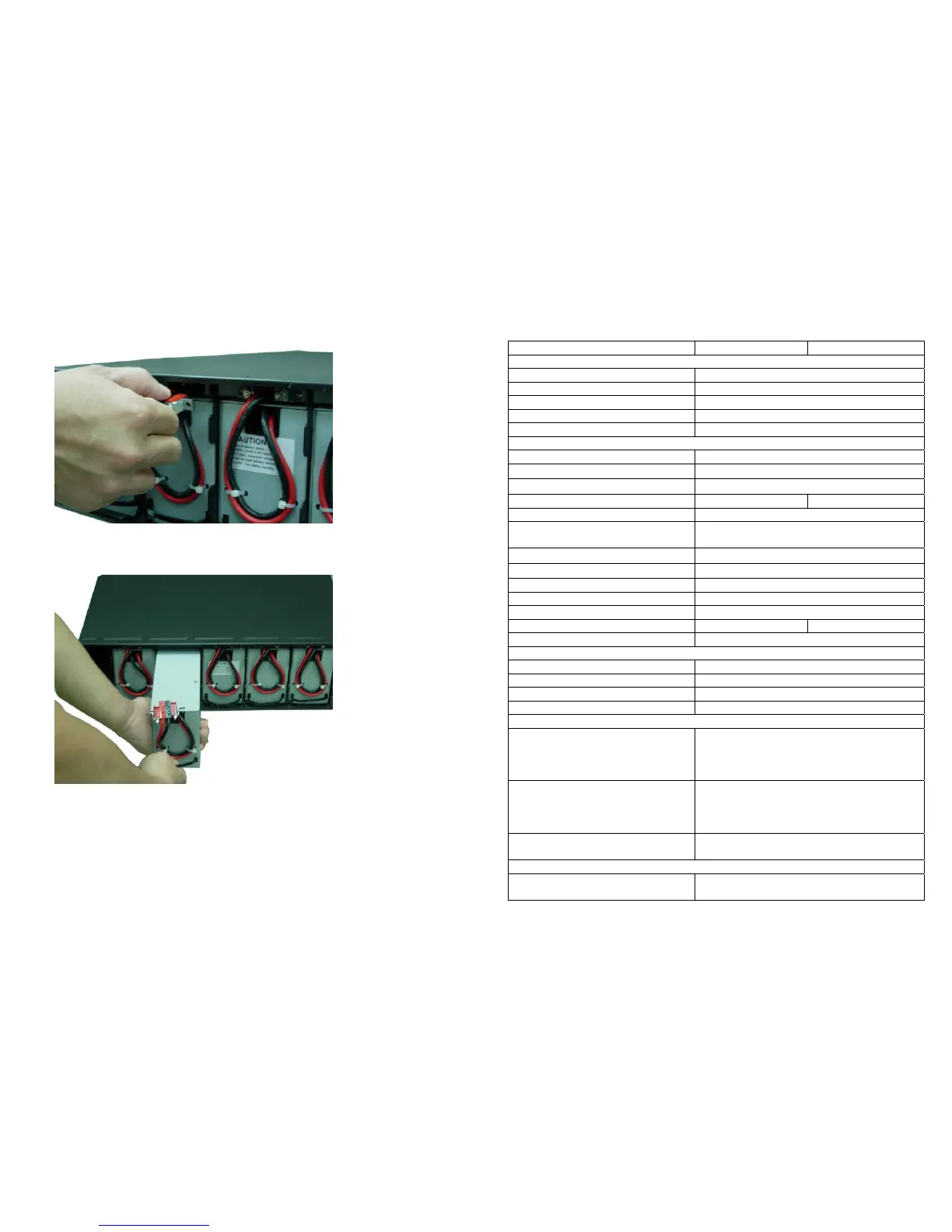

4. Unplug the hot swappable battery connectors as shown in Step 4.
5. Remove the battery packs from the battery module as shown in Step 5.
47
8. Specifications
Model 4500VA 6000VA
INPUT
Voltage Window 160~280Vac*
Frequency 45 ~ 65 Hz
Phase/Wire Single, Line + Neutral + Ground
Power Factor Up to 0.99 at 100% Linear Load
Current THD <6% at 100% Linear Load
OUTPUT
Voltage Window 200/208/220/230/240Vac Selectable
Voltage Adjustment
0%; ±1%; ±2%; ±3%
Voltage Regulation
±2%
Capacity 4500VA/3150W 6000VA/4200W
Rated Power Factor 0.7 Lagging
Wave Form Sine Wave, THD<3% (no load to full Linear
load)
Frequency Stability
±0.2% (Free Running)
Frequency Regulation
±1%; ±3%
Transfer Time 0ms
Efficiency(AC to AC, Normal) Up to 90%
Efficiency(AC to AC, ECO) Up to 97%
Autonomy >12 min. >8 min
DC Start Yes
BATTERY
Type Sealed Lead Acid Maintenance Free 7AH
Quantity 20pcs
Voltage 240Vdc
Recharge Time 4 hours to 90%
DISPLAY
Status On LED + LCD Line Mode, Backup Mode, ECO Mode,
Bypass Supply, Battery Low, Battery
Bad/Disconnect, Overload, Transferring
with interruption & UPS Fault.
Readings on LCD Input Voltage, Input Frequency, Output
Voltage, Output Frequency, Load
Percentage, Battery Voltage & Inner
Temperature.
Self-Diagnostics Upon Power-on, Front Panel Setting &
Software Control, 24-hour routine checking
ALARMS
Audible and Visual Line Failure, Battery Low, Transfer to
Bypass, System Fault Conditions
