Absen A Series User Manual

A series user manual
19 / 24
Service Hotline:400-700-3278

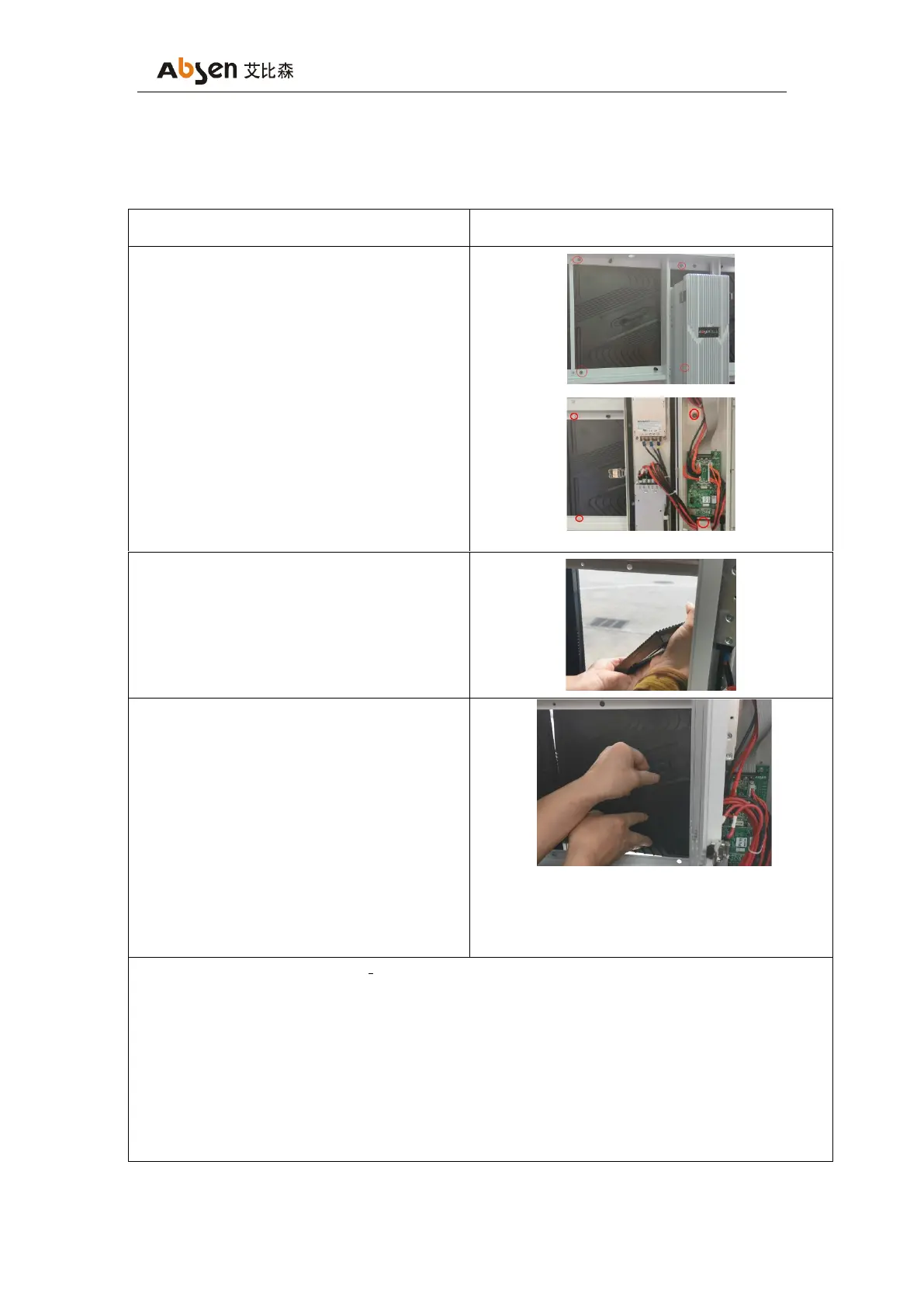

4.2 Rear maintenance
4.2.1 Rear maintenance of the module
Steps
❶ Open the power first, then confirm the position of
the four screws that fix the faulty module, use a PH2
Phillips screw driver to remove them, and place the
removed screws；
❷ Hold the handle of the module and push it
forward, spin the module to take it out of the empty
space;
❸ Confirm the direction of the spare module (the
arrow on the back of the module faces upwards),
install the spare module into the cabinet through the
empty space at the back of the cabinet, and tighten
the screws.
Note: When placing the module, make sure that the
module is in good contact with the cabinet.
❶ When disassembling/Replacing of the module, it is recommended to turn of the power of the
screen for safe reason;
❷The module should be installed in the direction of the arrow on the back of the module, otherwise
the module may be burnt out;
❸ When disassembling/transferring the module, please protect the surface of the module, make sure
leds on the module won’t be knocked;
❹Hold the module when removing the last screw to avoid the danger of the module falling.
