CR7P
Digital Proportional Radio Control System
2
2.Product Introduction
This product uses the 2.4 GHz New ANT(Ant protocol) enhanced automatic frequency hopping
digital system, consisting of CR7P transmitter and R7FS receiver. It has an output of 7 channels,
compatible with model cars, boats, etc.

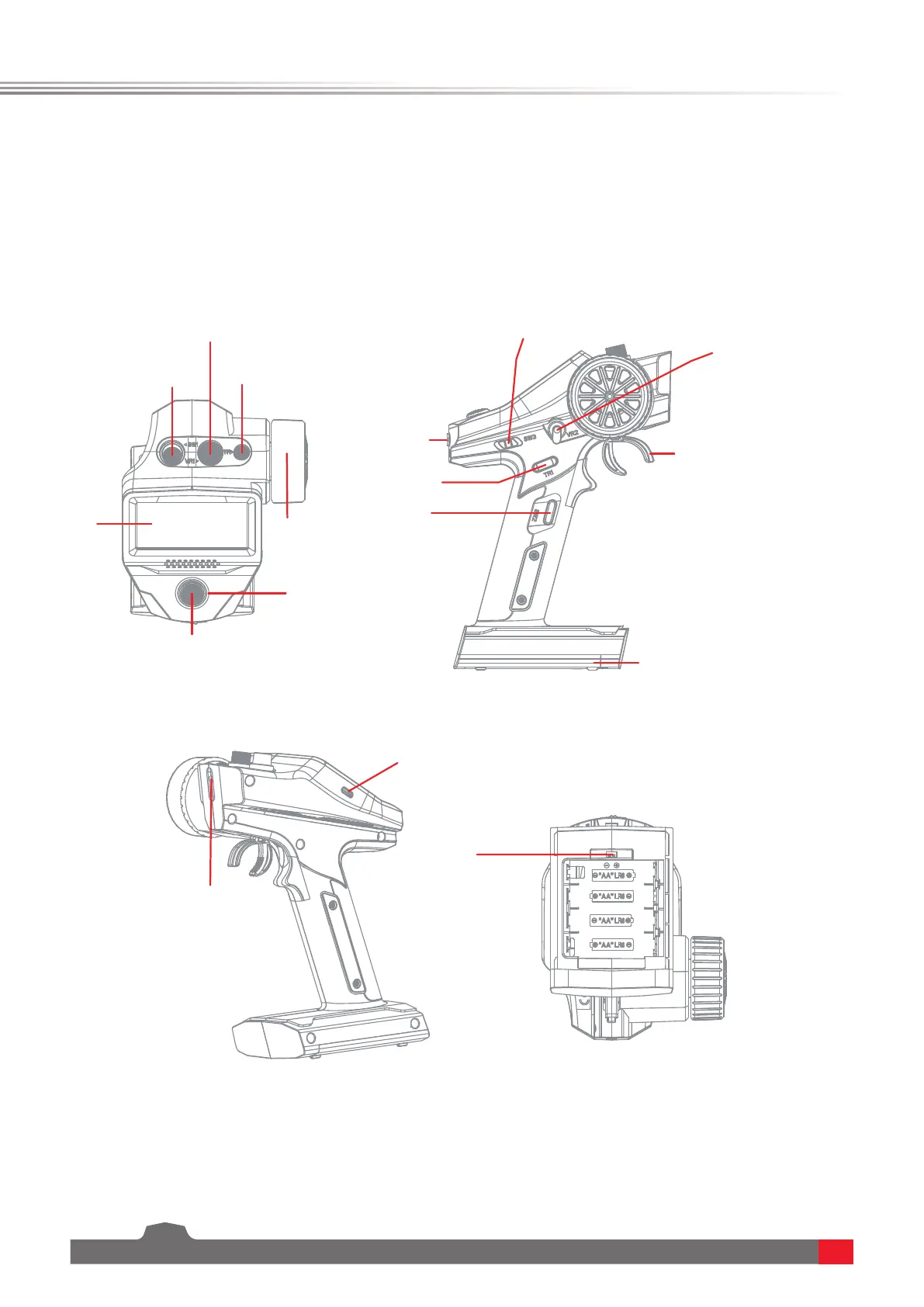

2.1 Transmitter Overview
SW1-Key
[2]
VR1-Knob
[3]
TR-Five-way switch:
[4]
TR_X : Left and right, and trimof preset direction
TR_Y : Front and rear, and trim of preset throttle
TR_Z : Press operation, reserved switch-key
Display [1]
[5]
CH1: Traverdimg handwheel
[7] LED
[6] Five-way switch,
and keys for menu navigation operations
Upward (UP)
Downward (DOWN)
Right (ENTER)
Left (BACK)
Middle (OK)
ON/OFF [11]
[12] VR2: Three-position knob
[10] SW3: Three-position toggle switch
SW2: Tact switch/key [8]
[13] CH2: Throttle trigger
[14] Battery box: 4*AA batteries,
compatible with the placement of
lithium batteries
[15] Type C USB interface: Firmware upgrade, USB emulator, and system power supply
[17]
JST interface:
for power supply
through 2S lithium
battery
[16]
Fixed port for the holder
of a mobile phone.
TR1: Function adjustment [9]
