2.2 Receiver Overview
2.2.1 Status LED
The status LED indicates the power supply state of the receiver and its working state.
Off: The receiver is not powered on.
Light on in red: The receiver is connected to the power supply. It works normally.
Fast flashing: The receiver is in the bind mode.
Slow flashing: The LED flashes slowly when the receiver is powered off, unbound, or no signal.
2.2.2 Interface
All the interfaces are 2.54 mm standard pins for connecting the receiver to each terminal part of the
model. Please follow the direction according to the label see the label direction on the side of the
receiver.
2.3 Antenna
Note
• To ensure the signal quality, the transmitter and receiver antennas should be kept vertical to the
ground as much as possible. In operations, please adjust the transmitter angle. Make the antenna
towards the direction of the model receiver. Keep the receiver antenna extending out of the model
and perpendicular to the ground.
Caution
• It is strictly prohibited to hold the antenna of the transmitter and the antenna of the receiver in
operations. Otherwise, the quality and strength of the radio transmission signal will be greatly
reduced, resulting in the failure and out of control of the model.
Note
• Do not pull the antenna of the receiver. Do not tie the antenna and the servo cable together. Do
not put the antenna close to the metal materials, because this will affect the signal strength of
the receiver.
It should be noted that this is a transmitter with a built-in antenna. Please use the transmitter
correctly.
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8][9][10]
[11]
[12] [13][14]
[16]
[17]
[15]

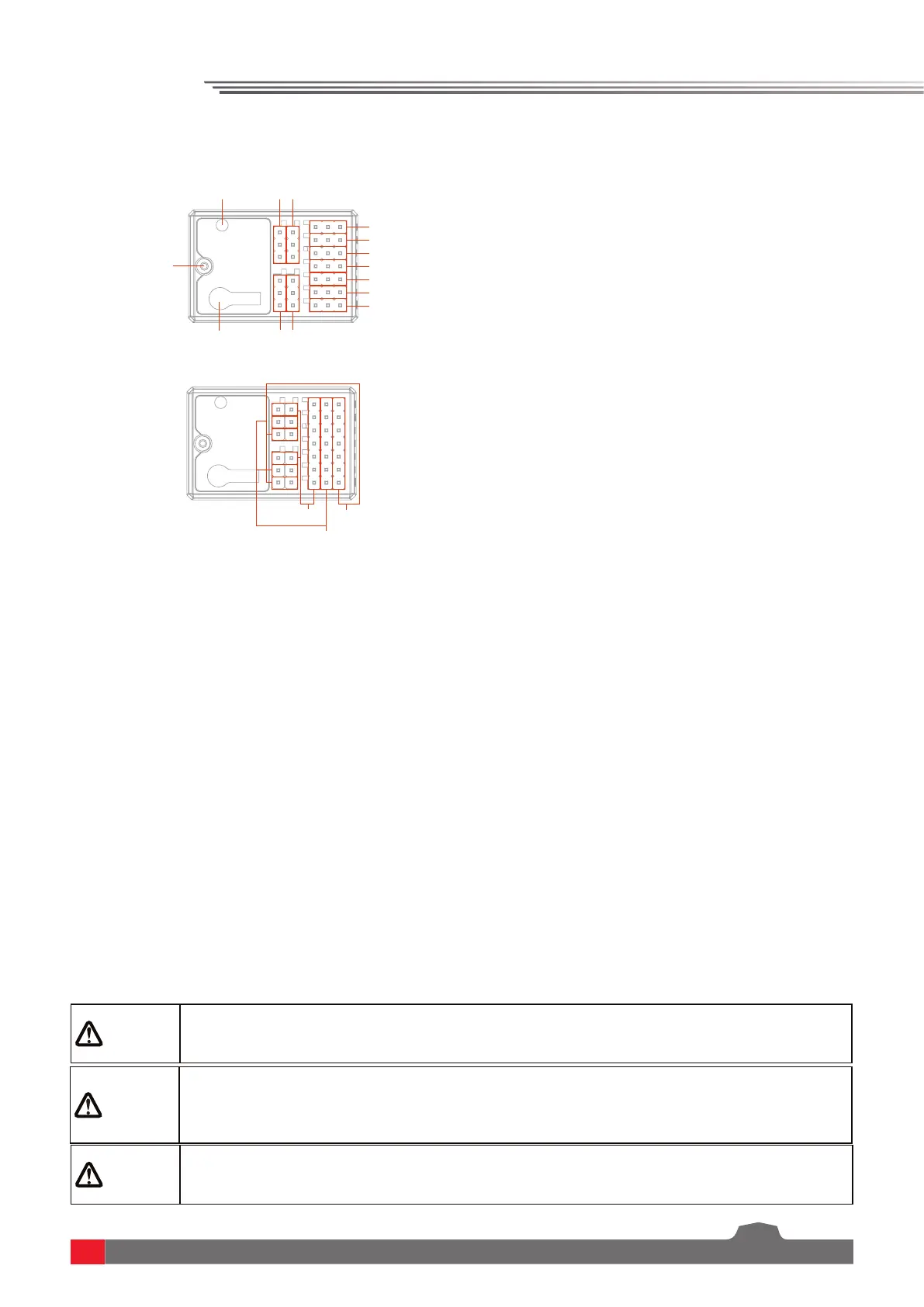

[1] CH1/P(PWM/PPM)
[2]-[5] CH2- CH5
[6] BIND interface
[7] BVD/VCC(Battery voltage detection/Power supply interface)
[8] CH7
[9] SERVO
[10] LED
[11] Antenna
[12] BIND button
[13] SENS interface
[14] CH6
[15] Signal pin
[16] + (Power anode)
[17] - (Power cathode)
