VENTILATION GUIDE
CLOUDLAB
INLINE FAN AND GROW LIGHT
First hang your inline duct fan to be used as an exhaust fan by the roof support beams. Position
the intake fan at the bottom end so the intake air will be passive through the bottom vents. If you
are installing a carbon filter inside, use the included straps to hang the carbon filter.
Then install your grow light. You may use rope clip hangers to install these products.

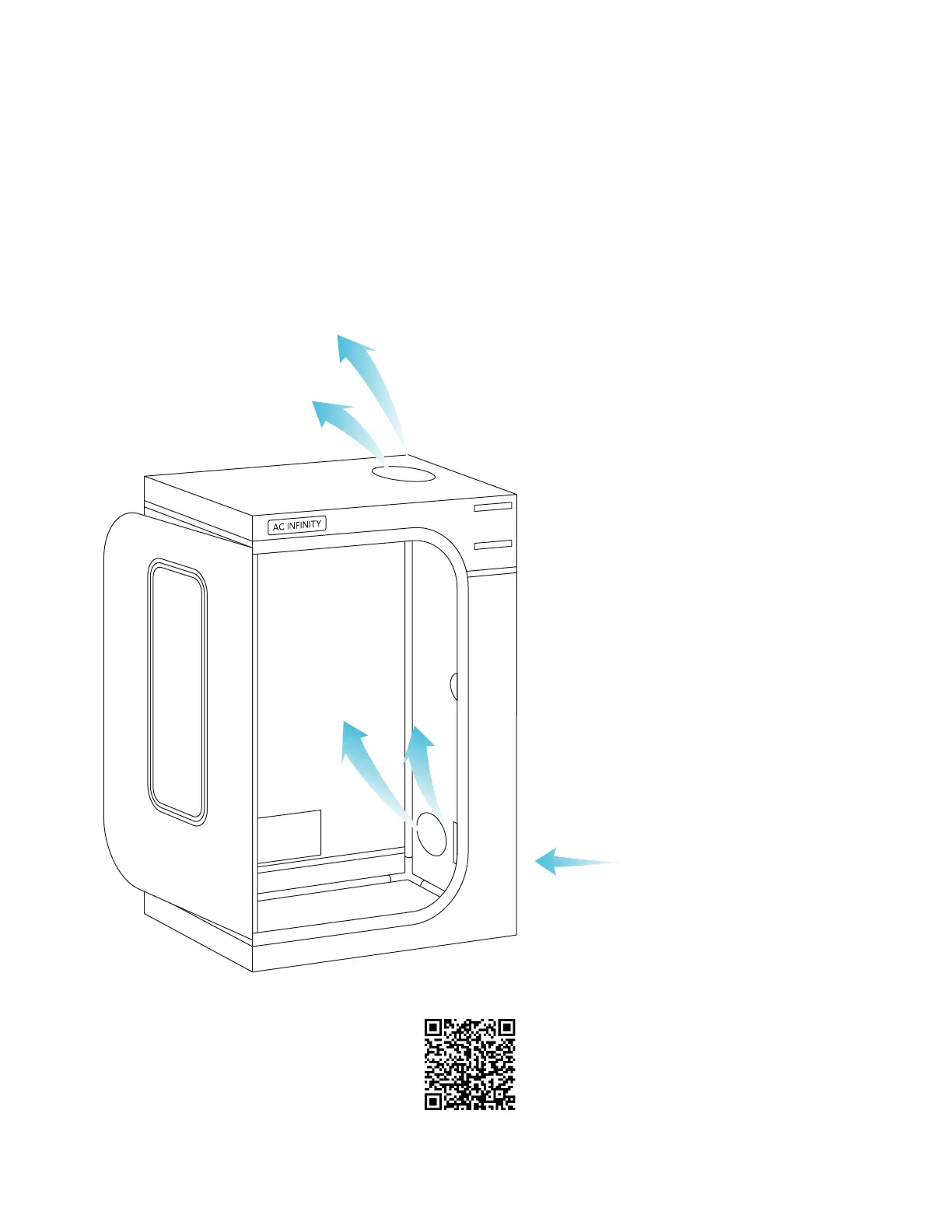

INTAKE HOLES
Introduce fresh air by using one of the
two ventilation holes at the bottom of the
grow tent. Open a passive intake screen
or create active intake by attaching an
additional inline fan to a duct port.
DOUBLE-SIDED CINCHES
Install any necessary duct tubes onto
the ducting ports. Use the cinches on
either end to secure the duct tubes onto
the grow tent.
NEED MORE INFORMATION?
Scan the QR code or visit
www.acinfinity.com for more
guides and tutorials.
