STEP 9

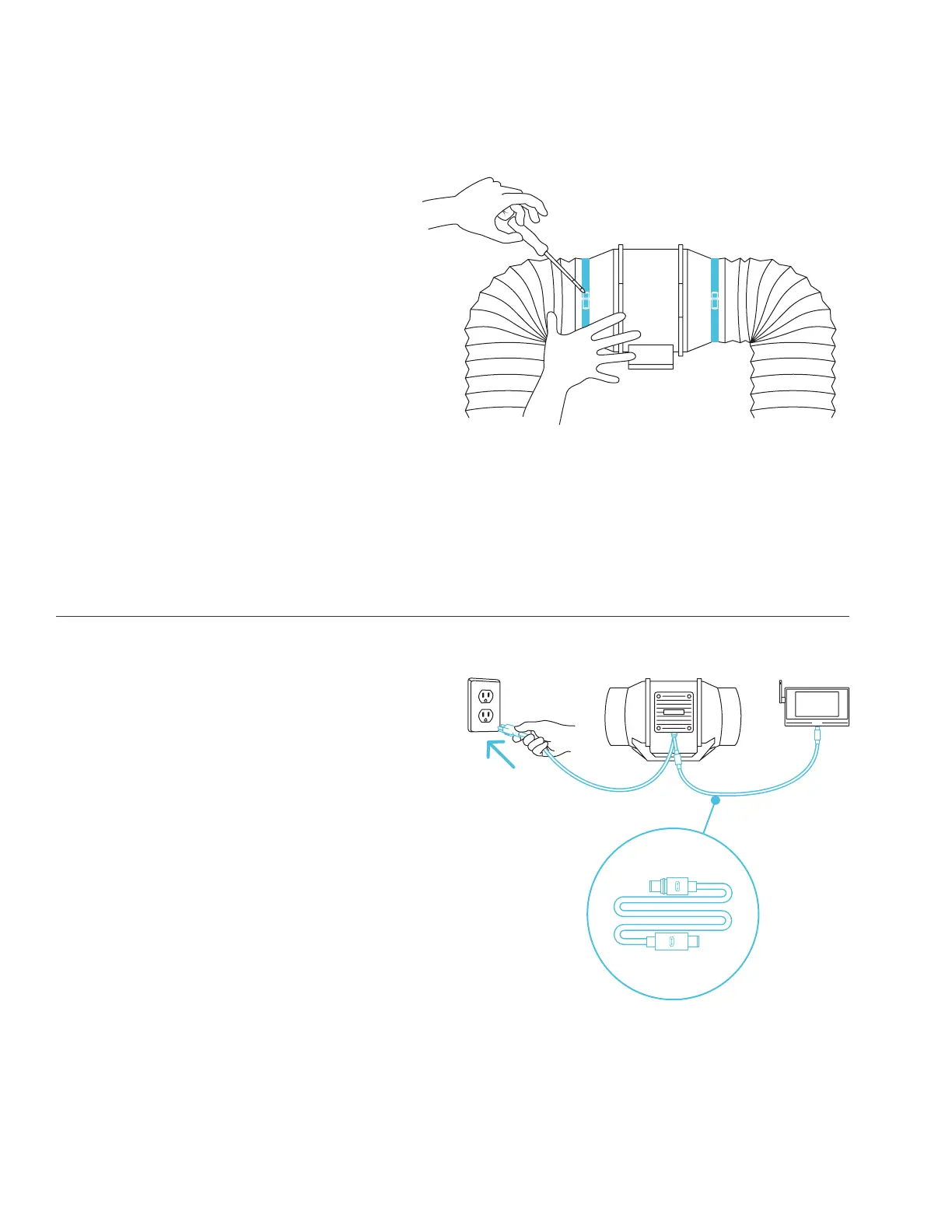

If installing ducting, use the included duct
clamps to secure it to either end of the
duct fan, making sure there is a tight seal.
Tighten the duct clamps using a
flathead screwdriver.
CLOUDLINE
MOUNTING
POWERING AND SETUP
Plug the fan’s power cord into an AC
power outlet to power it and the controller.
Refer to the CONTROLLER AI+ section
for controller installation instructions. You
will need to use the included UIS M-M
extension cord to connect to the controller.
Plug the UIS connector with the gasket
end into your fan. The gasket is specially
designed to protect against liquids
and dust.
