P57 TERMINAL STRIP STATUS

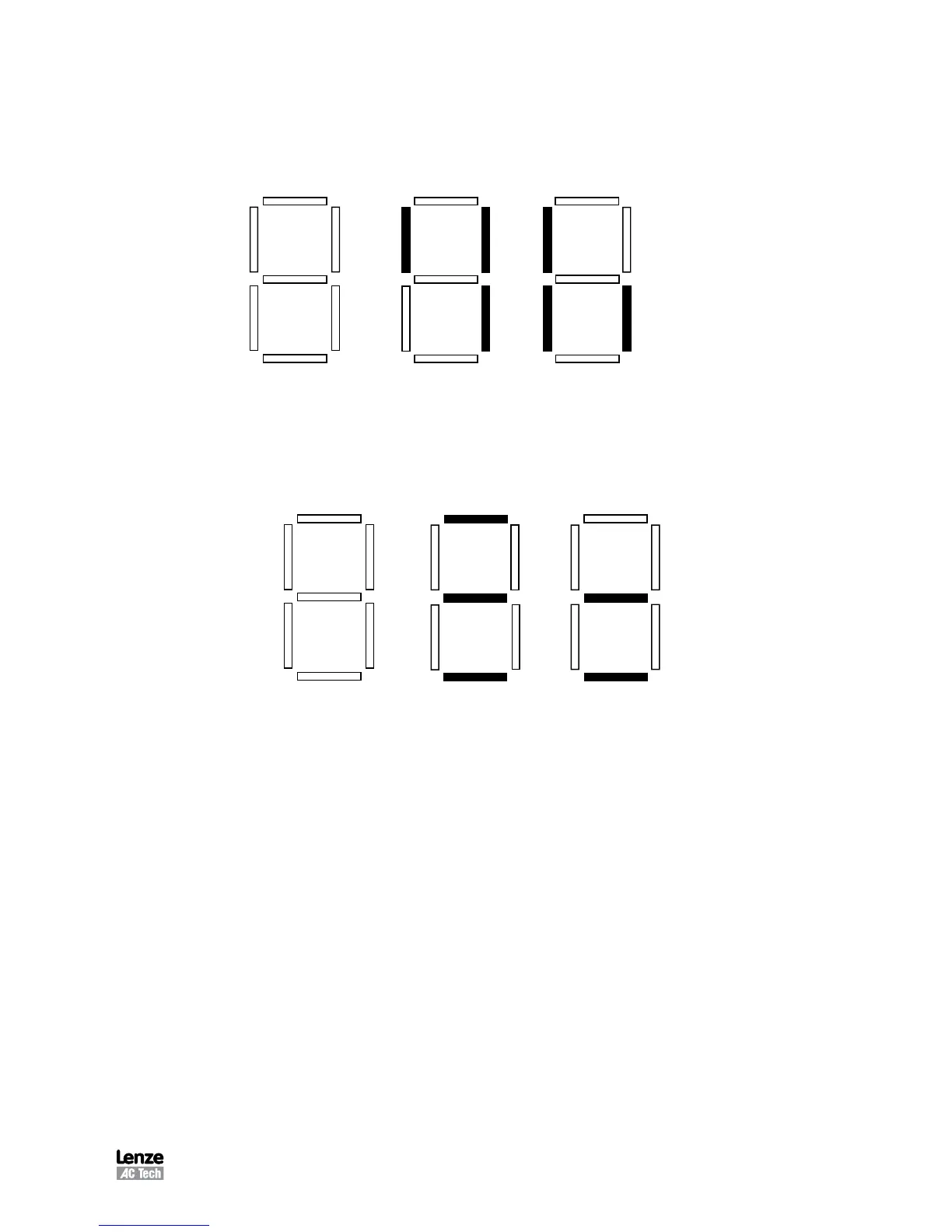

P57 indicates the status of several terminals using the vertical segments of the LED display.
An illuminated segment indicates that the particular terminal is closed to TB-11.
FACTORY
RESERVED
TB-1 TB-13A
TB-13B
TB-13E
(output)
TB-13E
(input)
P58 KEYPAD AND PROTECTION STATUS
P58 indicates the status of the buttons on the keypad, and the status of the protective
circuitry in the drive, using the horizontal segments of the LED. An illuminated segment
indicates that the corresponding button is pressed, or the protective circuit is active.
FCLIM
Mode
OUTPUT
FAULT
FCLIM is an abbreviation for Fast Current Limit.
