Accent 1400 Hardware Manual for Dedicated Devices Page 17

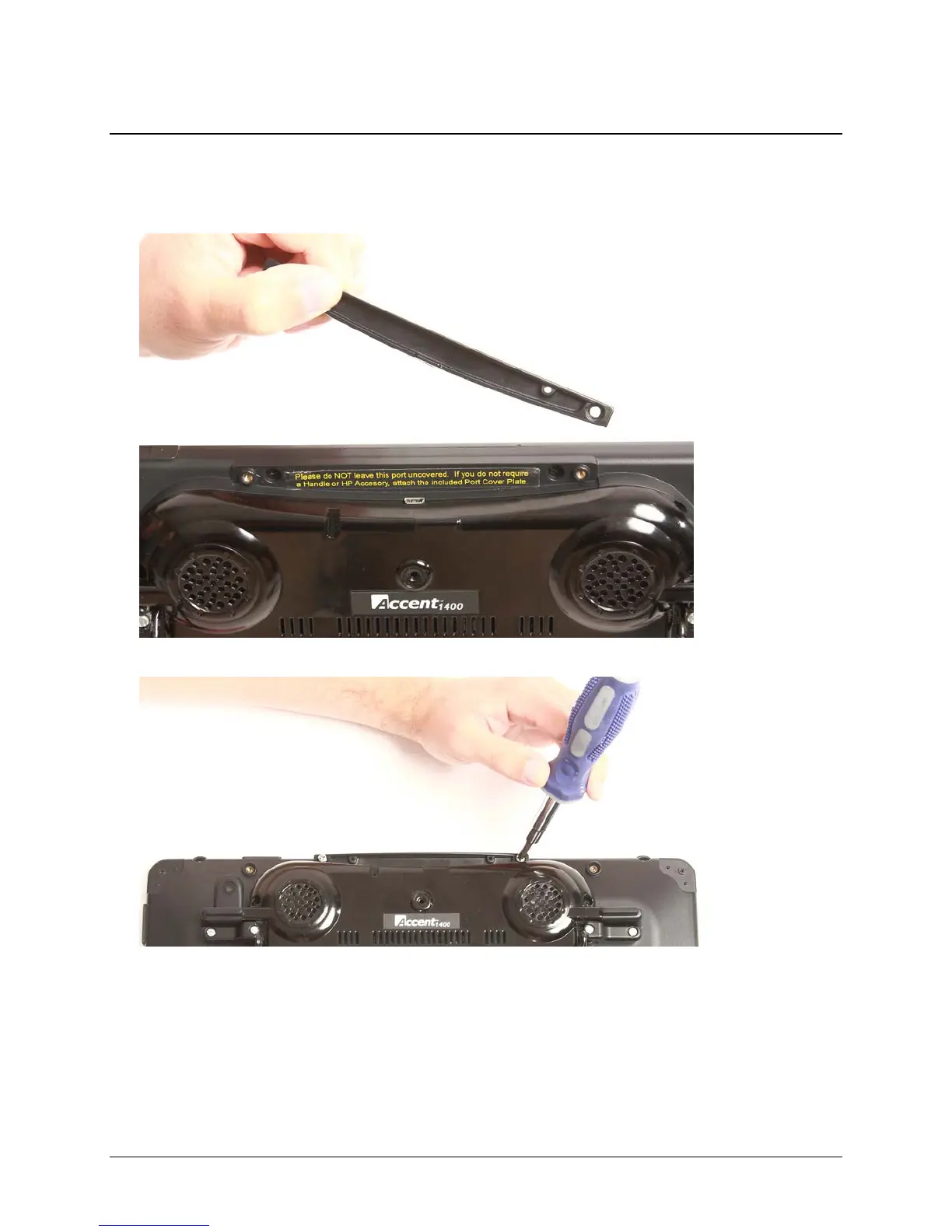

Attaching the Port Cover
If you removed the handle and are not going to mount a NuPoint module, it is important to attach the
port cover to protect the Mini USB Connector on the top of the device.
1. Line up the holes in the cover with the holes on the back of the device.
2. Insert and tighten the two screws that previously secured the handle.
To remove the port cover:
Remove the two screws that hold the port cover in place. Use the screws to mount a NuPoint module or
to reattach the handle.
Note: Store the port cover where you can find it if you need to use it again.
